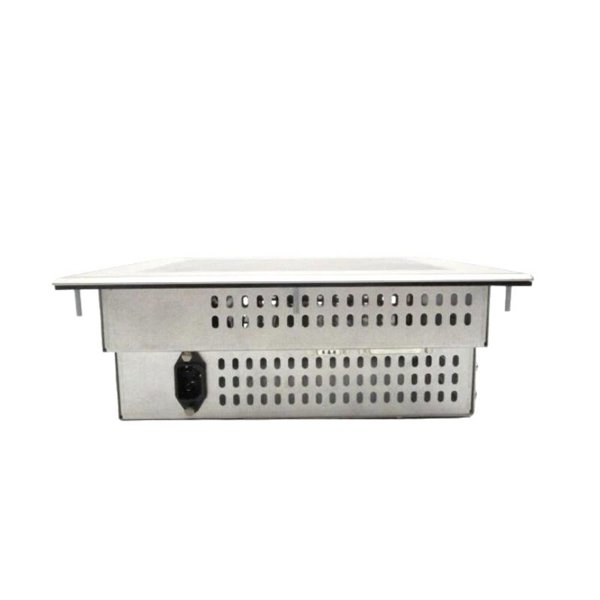

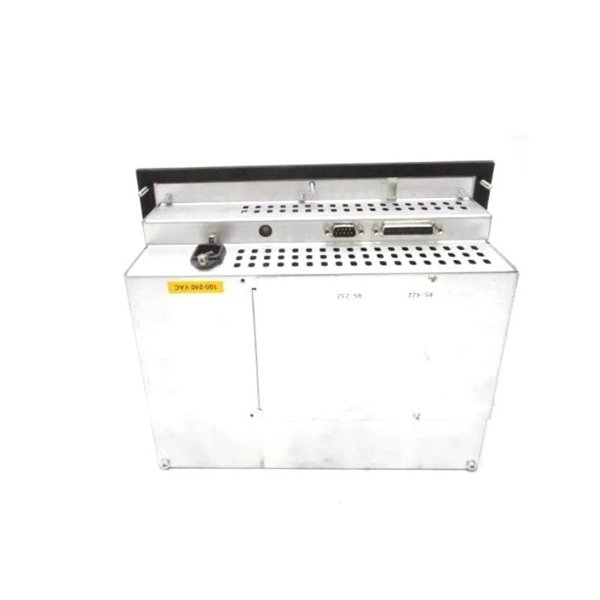

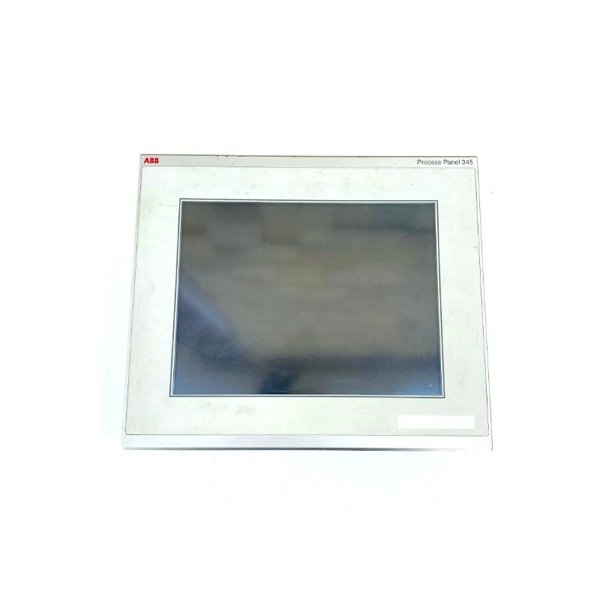

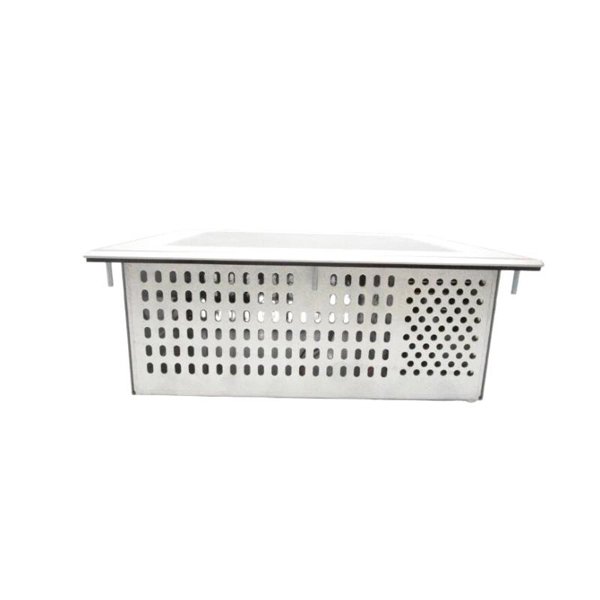

ABB PP345 3BSC690104R2 10,4” Graphical Touch panel
Manufacturer:ABB
Product Number:PP345 3BSC690104R2
Product Type:10,4” Graphical Touch panel
Origin:Sweden (SE)
Dimensions:10,4”
Weight:0.002 kg
Views:34
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB PP345 3BSC690104R2 is a 10.4-inch graphical touch panel designed for use within ABB’s Panel 800 series. It is an advanced operator interface that enables efficient visualization and control in industrial automation systems. The panel supports flexible integration in various control environments and serves as a key component for user-machine interaction.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | ABB PP345 |
| Product Code | 3BSC690104R2 |
| Display Size | 10.4 inches |
| Display Type | TFT LCD with touch input |
| Resolution | SVGA (800 x 600) |
| Power Supply | Supports 110/230V AC |
| Mounting Type | Panel-mounted |
| Interface | Ethernet, USB, Serial Ports |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Protection Class | IP65 (front), IP20 (rear) |
| Dimensions (W x H x D) | 300 mm x 230 mm x 60 mm |
| Weight | 0.002 kg |
Applications
-
Control panels in industrial plants
-
Machine operation in factory automation systems
-
Power generation control centers
-
SCADA system display and control
Key Advantages
-
User-Friendly Touchscreen: Intuitive graphical interface for fast interaction.
-
Wide Compatibility: Integrates with a variety of ABB and third-party PLCs.
-
Rugged Construction: Front panel IP65 rated, suitable for harsh environments.
-
Flexible Power Input: Supports both 110V and 230V AC input.
-
Upgradeable: Easily upgraded to PP845A for enhanced functionality.
Frequently Asked Questions (FAQ)
Q1: What is the display size of the ABB PP345 panel?
A1: The display size is 10.4 inches.
Q2: What is the recommended upgrade model for the PP345?
A2: The recommended upgrade is the PP845A (24V only).
Q3: Can the PP345 operate in outdoor environments?
A3: It is designed for indoor environments with front panel IP65 protection.
Q4: What type of input voltage does PP345 support?
A4: It supports 110V or 230V AC.
Q5: Is the touchscreen resistive or capacitive?
A5: It uses resistive touch technology.
Q6: Can the panel be mounted in any orientation?
A6: It is designed for standard panel mounting in landscape orientation.
Q7: What communication ports are available on the PP345?
A7: It includes Ethernet, USB, and serial communication ports.
Q8: Is the unit programmable using ABB’s tools?
A8: Yes, it can be configured using ABB’s Panel Builder software.
Q9: What is the screen resolution of PP345?
A9: The resolution is 800 x 600 (SVGA).
Q10: What is the approximate weight of the PP345 unit?
A10: Approximately 0.002 kg.
