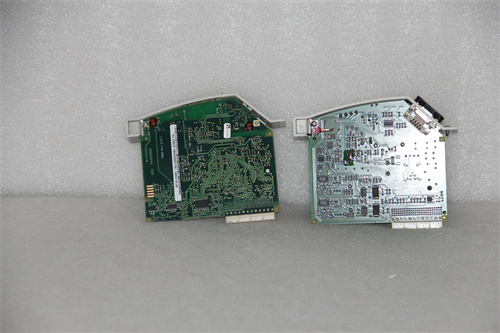

ABB AC800F Product Introduction

ABB AC800F is a field controller launched by ABB Group.It integrates advanced control technology and design concepts to provide users with a new automatic control solution.The controller supports a variety of fieldbus technologies,has economical,safe,flexible and efficient engineering characteristics,and is suitable for various industrial automation applications.

Main Features

Modular design

AC800F adopts a modular structure,and the CPU is designed as a backplane.Different modules can be connected according to application requirements,such as power supply unit,Ethernet and fieldbus modules.

This design makes AC800F highly flexible and scalable,and can adapt to different industrial automation application requirements.

Support for multiple fieldbuses

AC800F supports multiple fieldbus protocols such as PROFIBUS,FOUNDATION Fieldbus,MODBUS,IEC 60870-5-101,etc.,and can easily communicate and exchange data with other devices.

This enables AC800F to be easily integrated into various industrial automation systems to achieve seamless connection and data sharing between devices.

Redundant design

AC800F supports a full range of redundant working modes,including redundant designs of system bus,controller input/output modules,fieldbus master communication modules,etc.

This redundant design improves the reliability and safety of the system,avoids production downtime,and ensures the stable operation of the industrial automation system.

Efficient engineering

AC800F supports FDT/DTM engineering from design,debugging to system maintenance diagnosis,requiring only a set of tool packages(CBF).

It also has internal integrated Web Server technology for remote diagnosis and maintenance,reducing engineering costs and time.

Compact and rugged design

AC800F has a compact and rugged design and can be installed in the control room or directly in the junction box on site.

This design enables AC800F to adapt to various harsh industrial environments and ensures its long-term stable operation.

Technical parameters

Processor:32-bit superscalar RISC processor with high-speed bit processing capability.

Memory:4Mbyte(SRAM)or 16Mbyte(DRAM),with internal or external battery backup capability.

Storage:4Mbyte Flash EPROM.

Environmental conditions:Ambient temperature is 0~60°C,protection level is IP20.

Dimensions:239×202×164mm(W×H×D),supports DIN rail installation.

Power supply:120/230V AC or 24V DC,supports redundant power supply,and the maximum power loss is 30VA.

Application areas

ABB AC800F is widely used in various industries such as steel,petroleum,chemical,electric power,building materials,machinery manufacturing,automobiles,textiles,transportation,environmental protection,culture and entertainment.It can realize multiple control functions such as logic control,sequential control,analog control,motion control and process control to meet various complex industrial automation needs.
