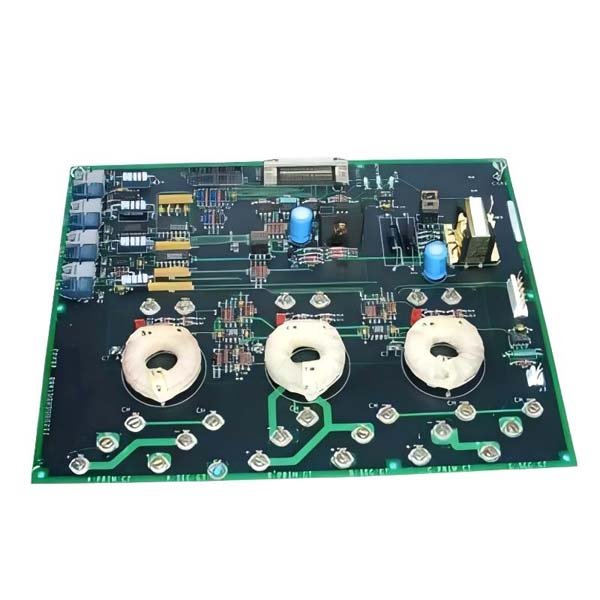

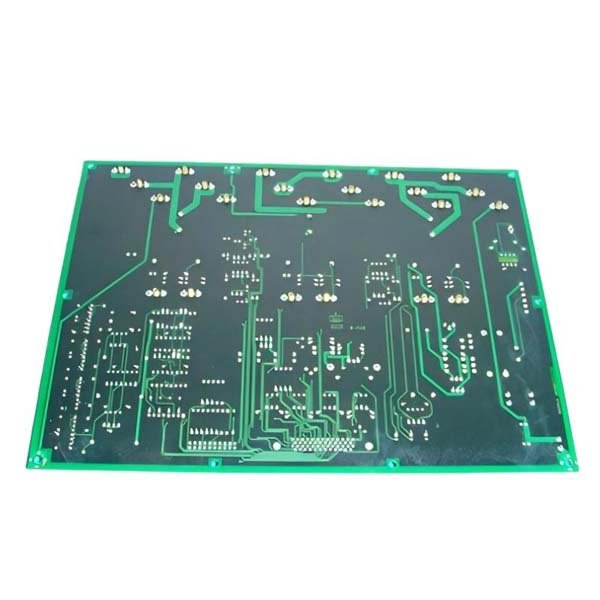

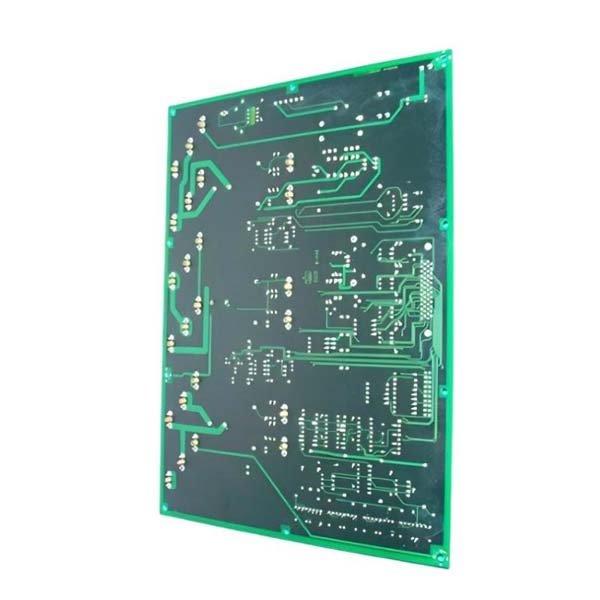

General Electric IS200GGXDG1ABB Gate Generator & Drive Expansion Module

The GE IS200GGXDG1ABB functions as a gate-generator expansion board within Mark VI power electronic infrastructures. Its primary purpose is to extend the logic pathways that control IGBT gate pulses, allowing converters and high-capacity drives to maintain synchronized, low-distortion switching. In modernization or refurbishment scenarios, this module often becomes a key element for restoring optimal pulse behavior and maintaining electrical symmetry across complex converter stages.

Engineering Specification Matrix

Field Use & Industrial Context

The IS200GGXDG1ABB is commonly deployed in GE platforms responsible for regulating high-power converters. These include:

• Medium-voltage industrial drive systems

• Power-electronics sections of turbine control rigs

• Multi-pulse converter stacks requiring aligned switching

• High-precision IGBT gate drive assemblies

• Retrofit projects involving legacy GGXD series components

Its extended gate-routing capability supports consistent switching waveforms even in systems dealing with fluctuating load, harmonic constraints, or variable-frequency operational modes.

Operational Advantages & Control Benefits

This module enhances switching stability by distributing well-timed pulses to subordinate gate units. Its design minimizes pulse skew and reduces electromagnetic interference that may otherwise affect IGBT behavior. The board is favored by field engineers due to its predictable logic timing and durable hardware layers, which collectively reduce downtime and extend the service life of converter assemblies.

FAQs

1. What is the core role of IS200GGXDG1ABB?

   It distributes and aligns gate pulses for IGBT-based power systems.

2. Is it part of the Mark VI hardware family?

   Yes, it integrates directly into Mark VI drive and converter structures.

3. Does it generate pulses or merely route them?

   It assists in pulse generation extension and ensures accurate delivery.

4. Can it work with older GGXD variants?

   Often yes, but compatibility should be checked against system revision data.

5. Does the module include diagnostics?

   It includes basic fault monitoring tied to the gate logic chain.

6. What indicates a failing GGXD module?

   Irregular switching, pulse distortion, or erratic converter behavior.

7. Is firmware loading required?

   No, it operates via hardware-defined timing logic.

8. Can high temperature affect timing?

   Only when exceeding the stated operating limits.

9. Does the module support redundant configurations?

   In some Mark VI cabinets, redundancy is handled at the system level.

10. Is field-level repair advisable?

    No—replacement is the recommended maintenance path.
