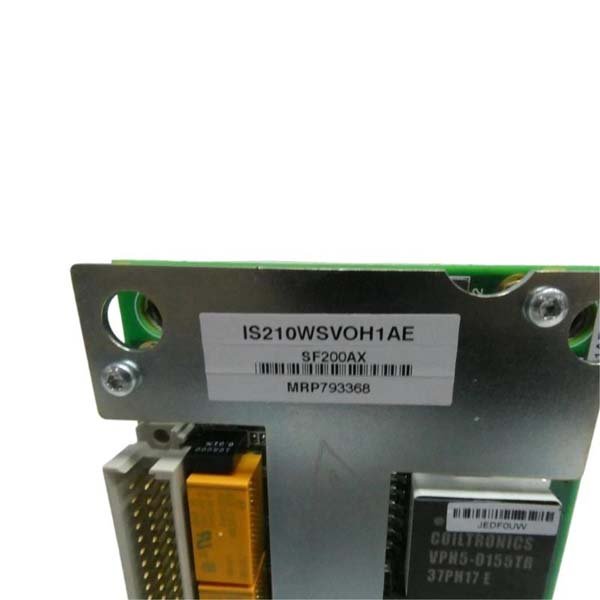

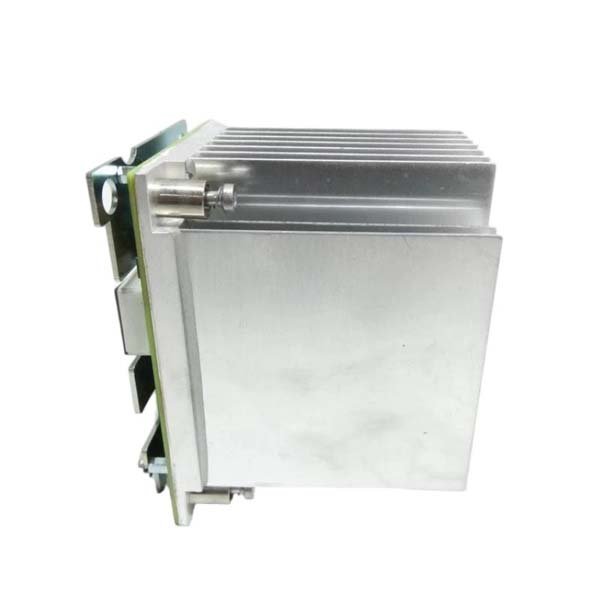

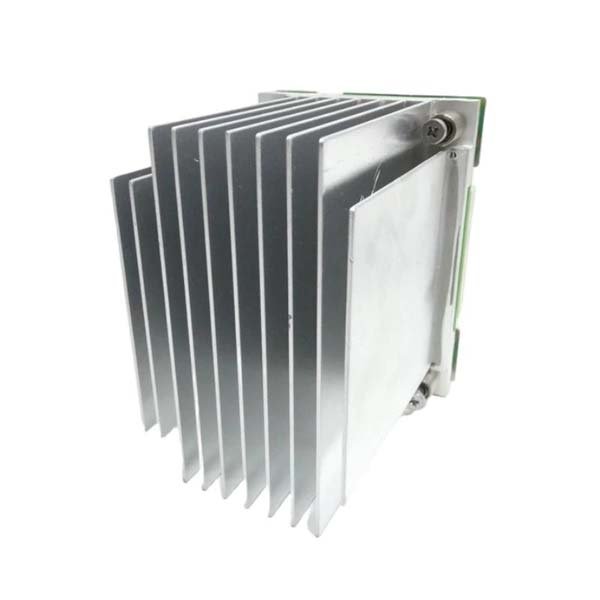

GE Fanuc IS210WSVOH1AE Waveform Sampling Voltage Output Module

The IS210WSVOH1AE is a precision waveform sampling voltage output module for GE Mark VIe control systems. Designed for high-fidelity voltage signal generation, this module enables accurate analog output for control loops, testing, and monitoring applications. With fast response time and stable performance, it helps ensure reliable plant operation while simplifying system upgrades and retrofits.

Engineers and plant operators appreciate the module for its combination of precision, stability, and seamless integration.

Technical Specifications

Applications

The IS210WSVOH1AE is used in a wide variety of industrial and power-generation scenarios:

• High-precision analog voltage outputs for control loops

• Waveform simulation and testing of plant control systems

• Supporting auxiliary equipment that requires accurate voltage signals

• Retrofitting Mark VIe systems with additional analog output capability

• Ensuring signal stability for critical plant processes

Its combination of precision and reliability makes it a versatile module for any Mark VIe installation.

Key Benefits

• Delivers accurate, stable voltage output for precise control

• Supports multiple channels for expanded system capability

• Seamless integration into existing Mark VIe racks

• Reduces engineering time during upgrades or retrofits

• Robust construction ensures consistent operation under industrial conditions

FAQs

1. What is the primary function of IS210WSVOH1AE?

   It provides precise analog voltage output for Mark VIe control loops and systems.

2. Can it generate multiple voltage signals simultaneously?

   Yes, it supports multiple output channels depending on system configuration.

3. Is calibration required?

   Standard calibration is recommended to maintain accuracy.

4. Does it integrate with older Mark VI systems?

   It is designed for Mark VIe systems; check compatibility for retrofits.

5. What indicates a malfunction?

   Erratic voltage output, channel dropouts, or inconsistent waveform profiles.

6. Can it handle continuous operation?

   Yes, it is rated for continuous operation in industrial environments.

7. Is it hot-swappable?

   No, power should be disconnected before installation or replacement.

8. Does it work in high-temperature cabinets?

   Yes, within the specified –20°C to +65°C operating range.

9. Is it suitable for precision testing?

   Absolutely—its waveform fidelity is designed for accurate analog output.

10. Can it be used in safety-critical applications?

    Yes, it provides reliable outputs for control and monitoring loops.
