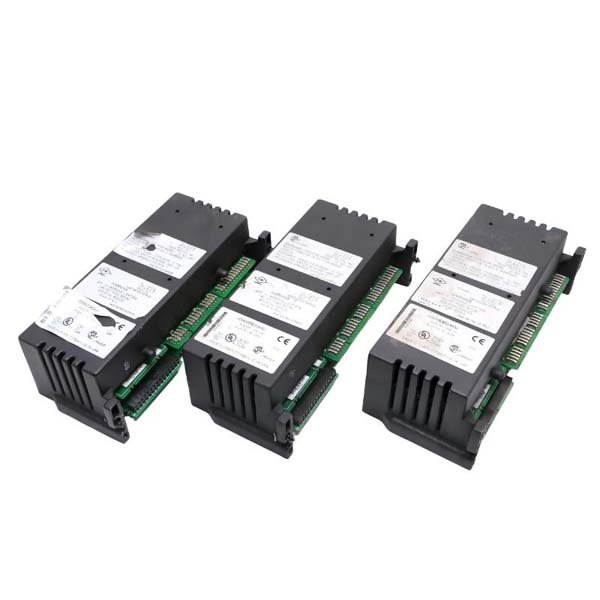

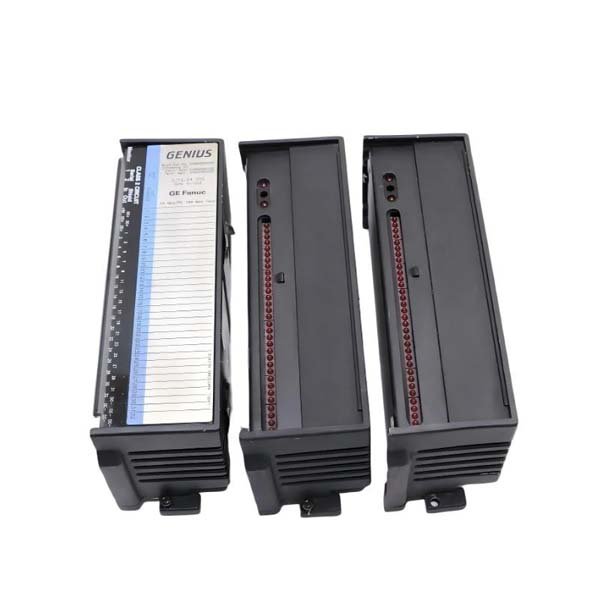

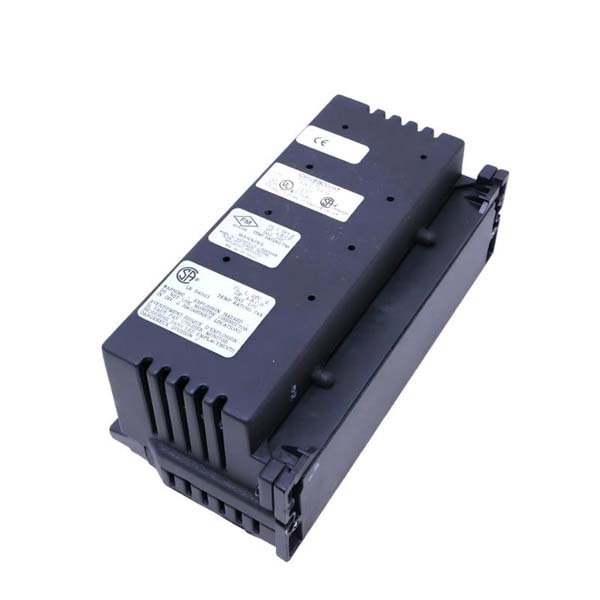

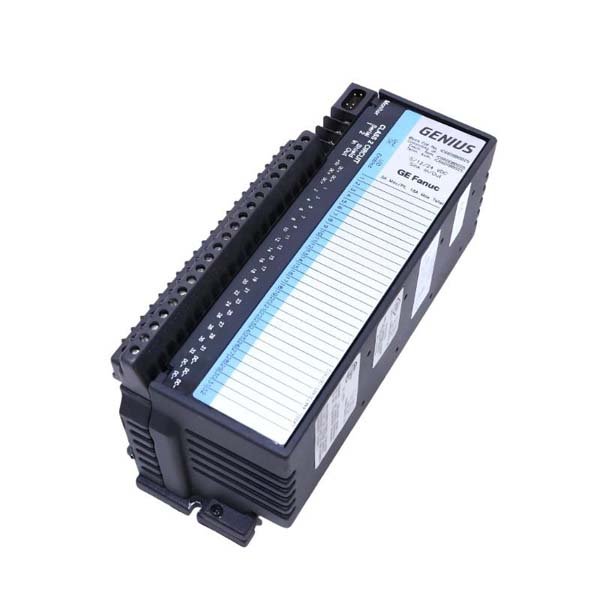

GE Fanuc IC660BBD025 Power Supply Module

The GE Fanuc IC660BBD025 is a power supply module designed for GE Series 90-30 PLC systems, delivering stable 24V DC output to control and I/O modules. Built for industrial automation environments, this module ensures reliable operation of distributed PLC racks under varying loads and harsh conditions.

Engineered for critical industrial processes, the IC660BBD025 maintains voltage stability, integrates overcurrent and short-circuit protection, and provides easy monitoring via LED indicators. Its compact footprint allows flexible integration into control panels while maintaining high system reliability.

Technical Specifications

Applications

The IC660BBD025 is ideal for systems where continuous and stable PLC operation is critical:

• Process Control Plants – chemical, pharmaceutical, and food processing industries.

• Manufacturing Lines – powering control modules and I/O components.

• Energy and Utilities – providing reliable DC power in distributed control systems.

• Water & Wastewater Facilities – powering remote racks in plant automation.

• Building Automation – control modules for HVAC and lighting systems.

Its compact and rugged design allows flexible integration into both central and remote panels.

Advantages

• Stable 24V Output: Maintains consistent voltage under load fluctuations.

• Overcurrent & Short-Circuit Protection: Minimizes downtime and equipment damage.

• Compact Design: Saves panel space, ideal for distributed racks.

• LED Status Indicators: Easy on-site monitoring for power and fault conditions.

• Wide Input Range: Compatible with standard AC mains voltages (100–240V AC).

• High Efficiency: 85% typical efficiency reduces energy loss.

• Robust Construction: Designed for industrial vibration, temperature, and humidity exposure.

• Flexible Mounting Options: Supports DIN rail and panel installation.

FAQs

1. What is the maximum output current?

   2.5 A at 24V DC.

2. Does it include short-circuit protection?

   Yes, electronic reset type.

3. Is the module suitable for continuous operation?

   Yes, designed for 24/7 industrial use.

4. Can it work with GE Series 90-30 PLC racks?

   Yes, fully compatible.

5. How is the module mounted?

   DIN rail or panel mount options available.

6. Does it provide diagnostic indications?

   LED indicators for Power OK and Fault.

7. What AC input voltage range is supported?

   100–240V AC ±10%.

8. Is external fusing required?

   Built-in protection suffices; external fuses optional for added safety.

9. What is its operating temperature range?

   0°C to 60°C (32°F to 140°F).

10. What is the module’s typical efficiency?

    Approximately 85%.
