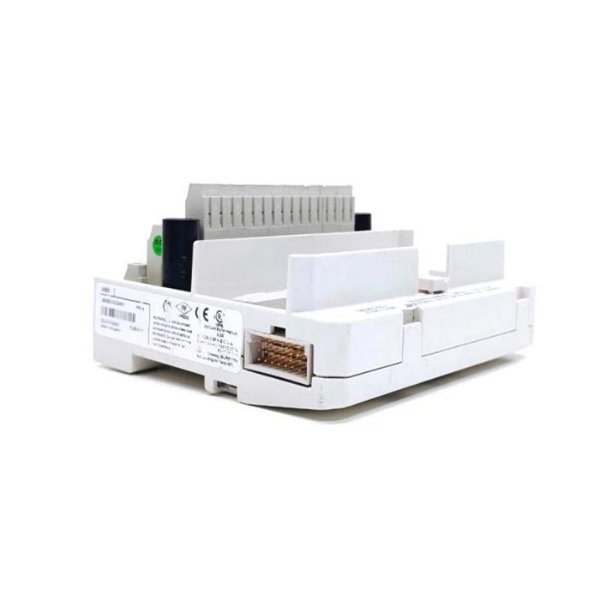

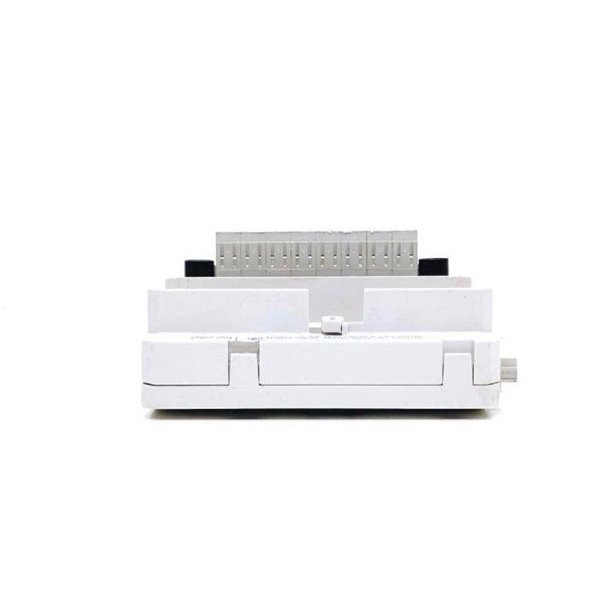

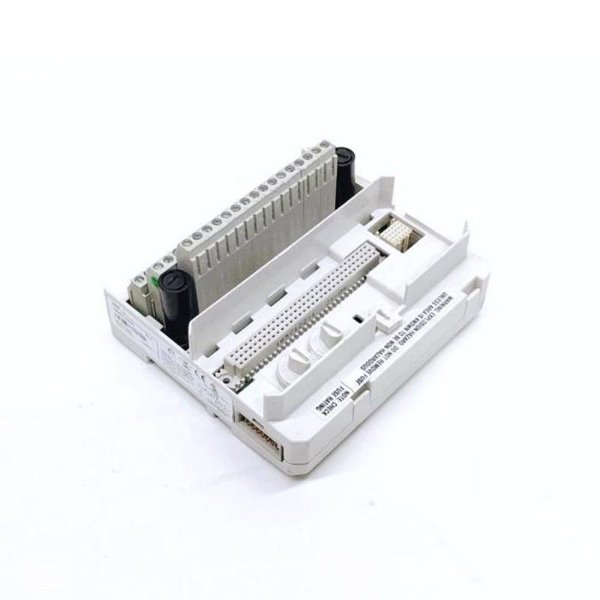

ABB TU830 3BSE008528R1 S800 I/O Extended Module Termination Unit

Name: ABB TU830 3BSE008528R1 S800 I/O Extended Module Termination Unit
Brand: ABB
Availability: InStock

Manufacturer:ABB

Product Number:TU830 3BSE008528R1

Product Type:Extended Module Termination Unit

Origin:Sweden (SE)

Dimensions:126 x 64 x 110 mm

Weight:0.22 kg

Views:62

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Contact Sales

Product Description

The ABB TU830 3BSE008528R1 is a 16-channel extended Module Termination Unit (MTU) in the S800 I/O family. It features three terminal rows for connecting field signals and process power in 50 V applications. Designed for modular and flexible configurations, the TU830 enables robust wiring and simple installation via DIN rail mounting.

Technical Specifications

Parameter	Specification
Product Model	TU830
Part Number	3BSE008528R1
Type	Extended Module Termination Unit
Channels	16
Voltage Range	Up to 50 V
Terminal Layout	3 rows for process and field wiring
Mounting Method	DIN rail
Application	50 V I/O signal termination
Dimensions (W x H x D)	126 x 64 x 110 mm
Weight	0.22 kg

Applications

Industrial automation systems
I/O signal termination in process industries
Modular DCS and PLC environments
Integration with ABB S800 I/O modules
Power, chemical, oil & gas sectors

Advantages

Field-Friendly Wiring: 3-wire field signal connections with organized terminal layout
Simple Mounting: DIN rail installation with secure mechanical latch
Maintenance Ready: Top section replaceable during operation
Scalable Use: Compatible with numerous ABB I/O modules
Industrial Grade: Built for rugged G3-class environments

Frequently Asked Questions (FAQ)

Q1: What is the function of the ABB TU830?

A1: It acts as a termination point for connecting 16 I/O signals and power to S800 modules.

Q2: Is TU830 compatible with 250 V systems?

A2: No, TU830 is only designed for 50 V applications.

Q3: Can the TU830 be used in redundant systems?

A3: No, TU830 is intended for non-redundant systems. Use TU842/TU843 for redundancy.

Q4: What kind of modules can be installed on TU830?

A4: Compatible modules include AI810, DI810, AO810, DO810, and others in the S800 family.

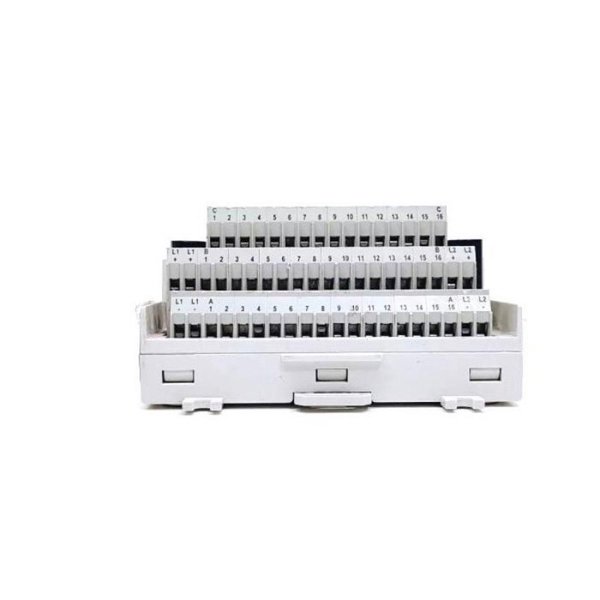

Q5: How many rows of terminals are on the TU830?

A5: Three rows are available for field signal and process power connections.

Q6: How is the TU830 mounted?

A6: It is mounted securely onto a standard DIN rail using a mechanical latch.

Q7: Can the top part of the TU830 be removed during operation?

A7: Yes, the top part can be removed without shutting down the system.

Q8: Does TU830 include fuses?

A8: No, it does not feature individual channel fuses.

Q9: What mechanical key settings are needed?

A9: Two keys allow mechanical coding to ensure module compatibility.

Q10: What makes it different from compact MTUs?

A10: TU830 supports 3-wire wiring and offers greater flexibility with extended terminal spacing.
