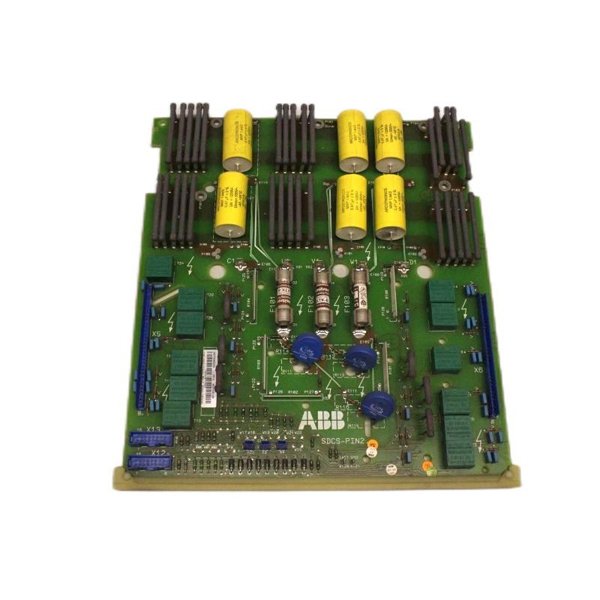

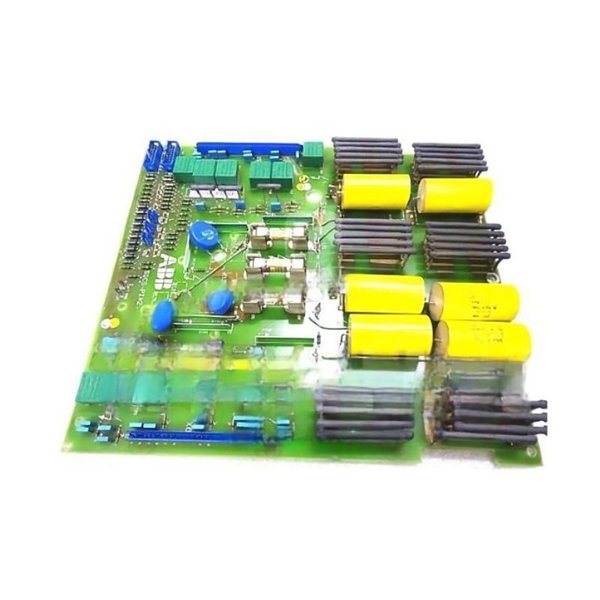

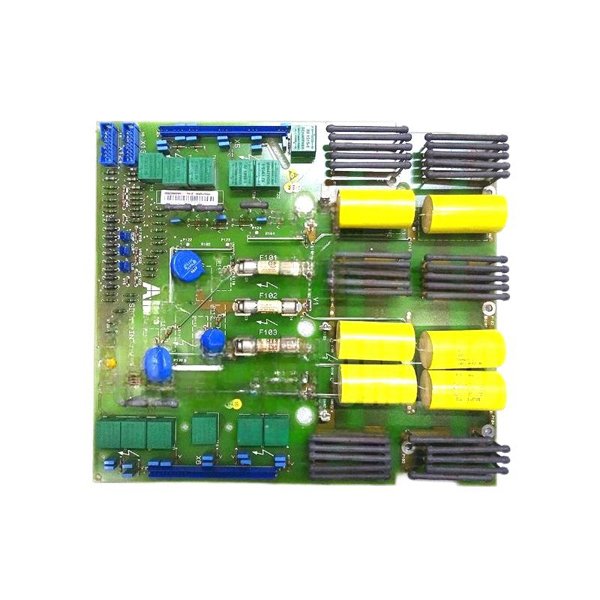

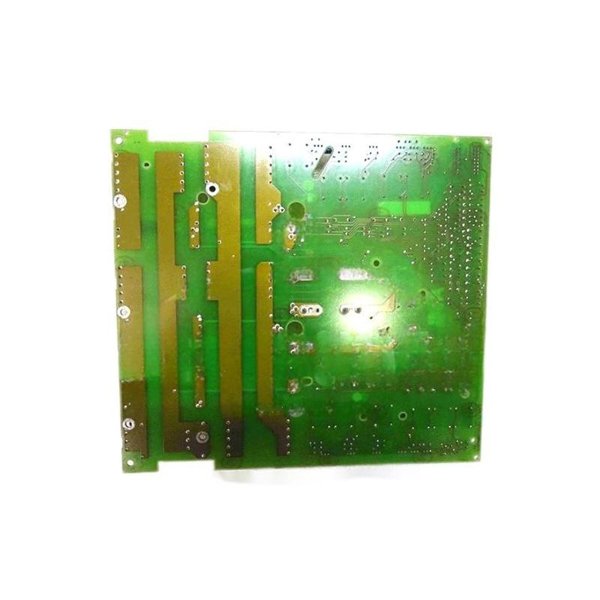

ABB SDCS-PIN-22 3BSE005663R1 Circuit Board

The ABB SDCS-PIN-22 (Part Number: 3BSE005663R1) is a power and signal interface circuit board designed for use in ABB DCS series drives, primarily the DCS500 and DCS600. As a key member of the SDCS (Speed Drive Control System) family, this board serves as an essential component that enables communication between control units and the power section of a DC drive system.

The SDCS-PIN-22 is used to route analog and digital signals, ensuring synchronized and accurate drive performance. Designed for high-reliability applications, it supports fault detection, signal feedback, and onboard diagnostics. Its construction includes high-grade industrial components and robust connectors to withstand challenging conditions in process industries, steel plants, paper mills, and more.

This board is commonly used in both original system installations and drive retrofit upgrades, ensuring longevity, operational consistency, and complete compatibility with ABB’s existing control architecture.

Technical Specifications

Applications

The ABB SDCS-PIN-22 is used in a variety of industries and applications that require rugged DC drive systems and reliable control interfaces. Common use cases include:

• Metallurgy & Steel Plants – Supporting rolling mills and cutting lines requiring accurate DC motor control.

• Pulp & Paper Production – Enables seamless drive coordination in large-scale continuous processes.

• Mining Equipment – Operates effectively in high-vibration, dusty, or high-humidity environments.

• Material Handling Systems – Ensures drive reliability in cranes, lifts, and hoists.

• Marine & Offshore Platforms – Used in sealed control cabinets where environmental resilience is critical.

• OEM Control Panels – Integrated into embedded systems by equipment manufacturers for precise drive regulation.

Product Advantages

• Industrial-Grade Durability – Built to operate reliably in harsh and vibration-prone environments.

• Seamless ABB Integration – Fully compatible with DCS500/DCS600 drives for fast system commissioning.

• No Software Configuration Needed – Hardware-based logic eliminates the need for programming.

• Visual Diagnostic Support – LED indicators provide instant operational and fault feedback.

• Low Maintenance – Minimal moving parts and robust design ensure longevity with little upkeep.

• Easy Replacement – Plug-and-play design simplifies field service and retrofitting.

Frequently Asked Questions (FAQ)

1. What is the main purpose of the SDCS-PIN-22 board?

   It acts as a power and signal interface between the control board and power electronics in ABB DC drives.

2. Is it compatible with both DCS500 and DCS600 series drives?

   Yes, it’s designed for integration with both series.

3. Can it be used in retrofitting older ABB drive systems?

   Absolutely. It is often used to replace legacy boards in existing control cabinets.

4. Are there diagnostic indicators on the board?

   Yes, the board includes LEDs for power, status, and error conditions.

5. Is any configuration or programming required during installation?

   No, it is a hardware-only component and requires no firmware or software setup.

6. What should I do if the board isn’t functioning?

   Check power supply, terminal connections, and ensure the board is seated correctly in its slot.

7. Can the SDCS-PIN-22 handle both analog and digital signals?

   Yes, it supports both types, allowing for flexible I/O routing.

8. Is this board conformally coated for harsh environments?

   This specific version does not include a conformal coating; coated versions may be available upon request.

9. How do I clean the board if it’s dusty?

   Use compressed air or an ESD-safe brush. Avoid moisture or solvents.

10. What’s the expected lifespan of this board?

    With proper ventilation and operating conditions, it typically lasts 10 to 15 years.
