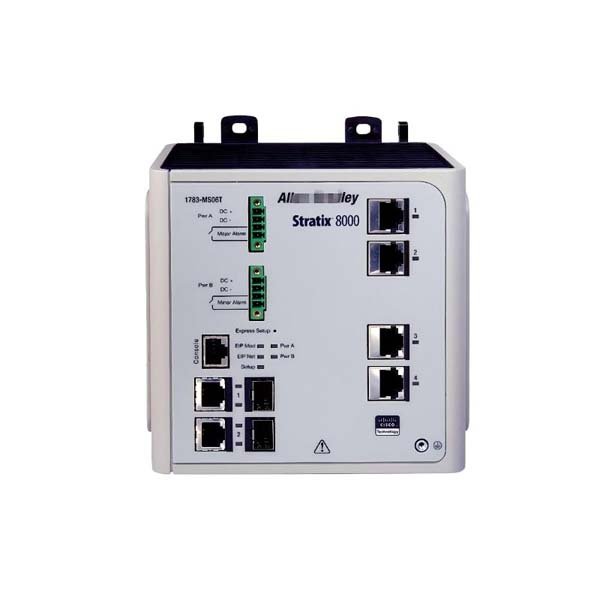

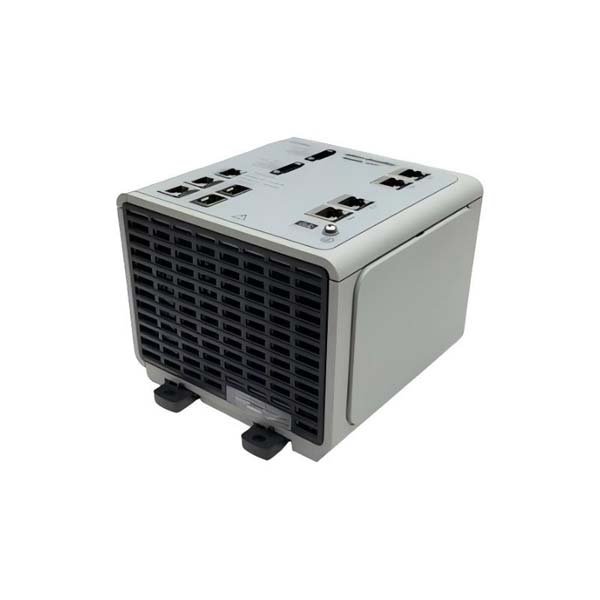

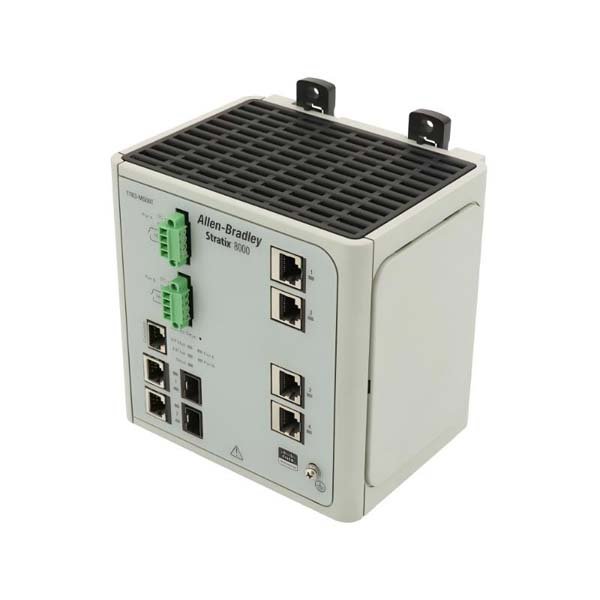

Allen-Bradley 1783-MS06T Managed Ethernet Switch Module

The Allen-Bradley 1783-MS06T is a Layer-2 managed Ethernet switch module tailored for industrial automation networks. Built under the Stratix 8000 family, this module delivers six Ethernet switching ports and two dual-purpose SFP/copper uplinks, enabling seamless integration of control systems, I/O devices and enterprise networks. Its architecture supports deterministic communications, network diagnostics, and modular expansion—ideal for demanding industrial environments where uptime and data integrity are paramount.

Technical Specifications

Applications

• Deployment in factory automation networks requiring robust Ethernet deterministic communication for PLCs, HMIs, and I/O devices.

• Industrial settings where modular managed switches enable redundancy, network segmentation (VLANs) and diagnostic visibility.

• Expansion of control cabinets in process plants, discrete manufacturing, or infrastructure where connectivity and reliability are critical.

• Integration in modernized control systems seeking both Ethernet/IP compatibility and legacy ease of use.

• Networks operating in high-EMI or harsh environments requiring wide temperature and rugged design.

Advantages

• Industrial-grade reliability: Wide temperature range, strong isolation, low power dissipation and robust design support long-term continuous operation.

• Managed switch functionality: Enables traffic control, VLANs, diagnostics and improved network visibility—beneficial for control engineers and IT alike.

• Flexible network integration: Dual-purpose uplink ports support copper or SFP fiber for long-haul or high-speed links.

• Compact and panel-ready: Standard DIN-rail mount and moderate footprint make it suitable for control cabinets.

• Brand ecosystem compatibility: Seamless integration with Allen-Bradley / Rockwell Automation architecture simplifies system design and support.

FAQs

1. What types of ports does the 1783-MS06T provide?

   – Six standard copper ports plus two uplink ports that may be copper or SFP fiber.

2. What is the input voltage requirement?

   – 18–60 V DC nominal input, rated current up to ~2 A at start-up.

3. Does it support redundancy or managed features?

   – Yes, it supports managed Ethernet features such as VLANs, QoS, diagnostics, and uplink flexibility.

4. What mounting options exist?

   – DIN-rail or panel mount in industrial cabinet; standard industrial mounting clearance required.

5. What is the operating temperature range?

   – –40 °C to +60 °C.

6. What weight should I account for during cabinet installation?

   – Approximately 2.56 kg.

7. Are the uplinks fiber capable?

   – Yes—dual-purpose uplink ports support SFP fiber modules for longer distances or higher speeds.

8. What isolation is provided between power and network portions?

   – Basic insulation rated at 75 V continuous between power rails and network channels.

9. What is the typical power dissipation?

   – Around 15.1 W under typical conditions.

10. Is the 1783-MS06T compatible with Ethernet/IP networks?

    – Yes, it is designed for integration in industrial Ethernet/IP environments typical of Rockwell Automation systems.
