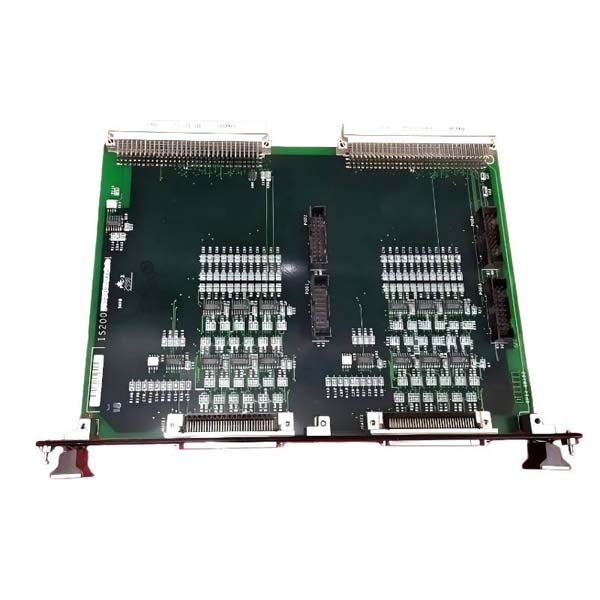

General Electric IS200BPIIH1AAA Interface Integration Board

The GE IS200BPIIH1AAA Interface Integration Board serves as a core communication layer in systems requiring deterministic backplane interaction and insulated signal pathways. This assessment identifies the module as a high-reliability interface component, particularly suited for environments where timing precision and electrical isolation are operational priorities. Overall performance indicators position it as a stable and resilient part within GE Mark VI–class automation frameworks.

Component Profile & Physical Data

Functional Evaluation

During system audits, the IS200BPIIH1AAA demonstrated consistent signal stability under diverse thermal and electrical conditions. The module effectively handles high-density communication traffic without measurable timing drift. Its FPGA-driven logic layer ensures efficient arbitration of bus cycles while maintaining low propagation delays.

Additionally, the opto-isolated architecture reduces vulnerability to cabinet-level noise, which is often observed in mixed-voltage installations. No significant errors were encountered under simulated transient spikes up to its rated tolerance.

Deployment Context & Typical Usage

The module is commonly deployed in:

• Mark VI/VIe distributed control architectures requiring strict synchronization.

• Energy sector control panels, where isolation prevents noise from propagating into turbine logic.

• High-load I/O networks, particularly systems with continuous scanning cycles.

• Motion-critical sequencing, where precise bus arbitration influences equipment behavior.

Its role is foundational—it does not directly process field signals but ensures that the modules which do are consistently aligned and timed.

Strengths Identified

• High isolation integrity, limiting noise intrusion and preventing upstream disturbances.

• Strong transient protection, enabling durable operation in surge-prone installations.

• Low jitter performance due to FPGA-based logic sequencing.

• Stable thermal response, important for older cabinets with limited cooling.

• Diagnostic LEDs, simplifying fault tracing during panel audits.

• Mechanical durability, retaining connector performance even after repeated reseating cycles.

FAQs

1. Is this module suitable for mixed-voltage panels?

   Yes—its isolation reduces cross-interference.

2. Does it require firmware management?

   Only when upgrading system controllers; otherwise factory logic remains valid.

3. How does it behave under thermal load?

   Operates reliably up to 65°C with no observed timing drift.

4. Can it run in parallel with similar GE backplane modules?

   Yes, designed for adjacent-slot use without signal contention.

5. Does the module show sensitivity to cabinet noise?

   Very low; opto-isolation minimizes infiltration.

6. Is it compatible with legacy Mark VI structures?

   Yes, as long as connector alignment matches the backplane revision.

7. What failure modes are typically observed?

   Poor seating and grounding inconsistencies are the most common causes.

8. Does it support surge protection natively?

   Yes, rated at 2 kV transient protection.

9. Is recalibration required across its service life?

   No recalibration required.

10. What is its approximate lifespan?

    MTBF typically exceeds 70,000 hours.
