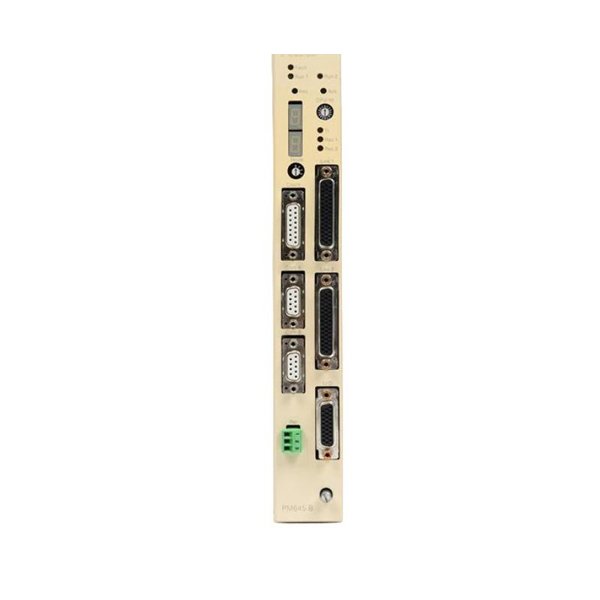

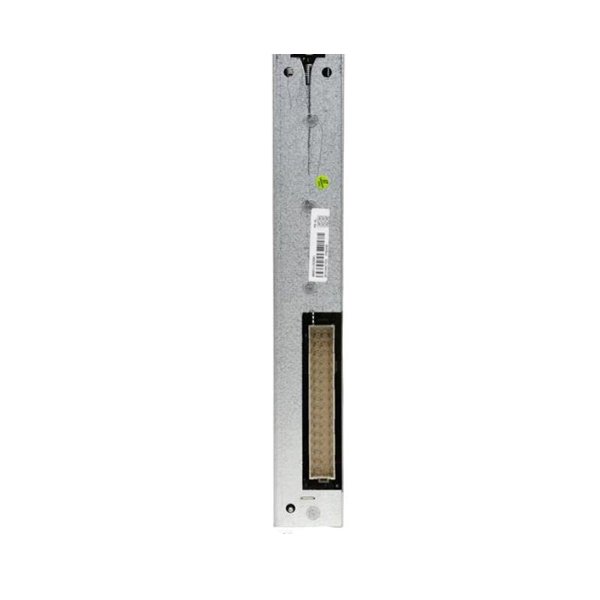

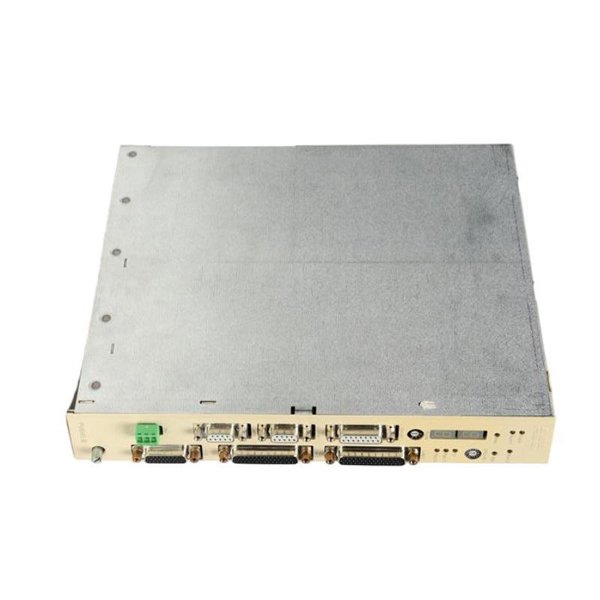

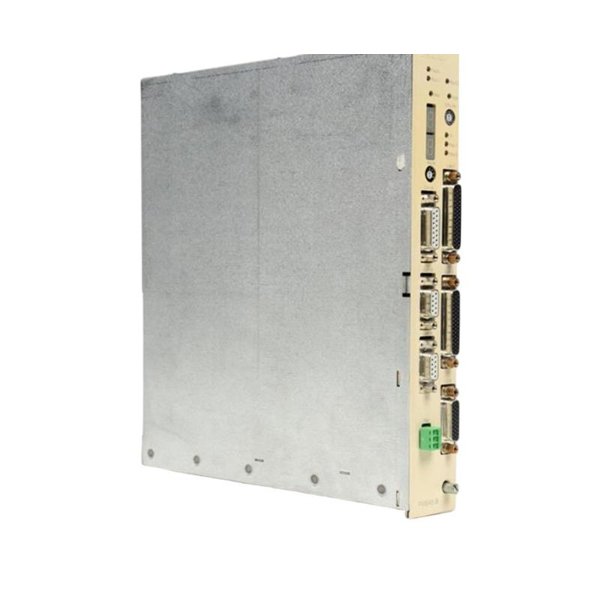

ABB PM645A 3BDS005799R1 CPU Processor Unit

The ABB PM645A 3BDS005799R1 is a high-performance CPU processor unit designed for demanding industrial automation and control systems. As a key component in ABB’s range of programmable logic controllers (PLCs), this unit provides powerful computing capabilities, extensive communication options, and seamless integration into automated environments. Whether used for process control, industrial robotics, or factory management systems, the PM645A offers the flexibility and reliability that modern industries demand.

This processor unit utilizes an advanced PowerPC-based architecture, delivering fast processing speeds for complex tasks, while maintaining low power consumption. With support for a wide array of communication protocols, including Modbus TCP, EtherNet/IP, and OPC UA, the PM645A ensures seamless integration with existing networks, making it ideal for both new and legacy systems. The unit’s robust design also ensures reliable performance even under harsh industrial conditions, making it a valuable asset in critical applications.

Product Specifications

Product Applications

The ABB PM645A 3BDS005799R1 CPU processor unit is designed for a wide range of applications in industrial automation, process control, and manufacturing:

• Industrial Automation: Ideal for controlling complex machinery, assembly lines, and factory systems in manufacturing plants.

• Process Control: Widely used in industries such as chemical, pharmaceutical, and food processing for managing precise, real-time control over processes.

• Building Management Systems (BMS): Useful for managing HVAC systems, lighting, energy consumption, and security systems in commercial buildings and industrial facilities.

• Robotics: The PM645A’s high processing power makes it an excellent choice for controlling robotic arms, automated systems, and industrial robots in manufacturing settings.

• Energy Management: Suitable for monitoring and controlling energy usage in power generation, renewable energy systems, and utility sectors.

• Safety and Monitoring: Helps in implementing safety protocols, real-time monitoring, and feedback loops in critical industries such as oil & gas, power plants, and automotive manufacturing.

Product Advantages

• High Processing Power: Powered by a PowerPC-based processor, the PM645A delivers exceptional performance for demanding industrial applications, handling complex tasks in real-time.

• Scalability: Supports up to 64 I/O modules, making it a flexible solution for both small-scale and large-scale automation systems.

• Versatile Communication: Equipped with two 10/100/1000 Mbps Ethernet ports, the PM645A ensures fast and reliable communication, facilitating seamless system integration with minimal downtime.

• Wide Temperature Range: With an operating temperature range from -25°C to +60°C, this CPU unit is designed to function reliably even in the harshest industrial environments.

• Compact Design: Despite its powerful capabilities, the PM645A is compact with dimensions of 252 × 273 × 40 mm and a weight of 1.75 kg, making it easy to fit into standard control panels and racks.

• Easy Integration: The PM645A supports multiple industrial communication protocols, including Modbus TCP, EtherNet/IP, and OPC UA, providing the flexibility to integrate with various systems and devices.

• Energy Efficient: Designed to be energy-efficient, the PM645A minimizes power consumption, leading to lower operational costs.

FAQ

1. Q: What is the input voltage range for the ABB PM645A 3BDS005799R1?

   A: The PM645A operates on a 24 V DC input voltage.

2. Q: How much memory does the PM645A have?

   A: The PM645A is equipped with 1 GB of RAM and 512 MB of flash memory.

3. Q: What is the weight of the PM645A CPU processor unit?

   A: The weight of the PM645A is 1.75 kg.

4. Q: How many I/O modules can the PM645A support?

   A: The PM645A can support up to 64 I/O modules, making it suitable for both small and large systems.

5. Q: What types of communication protocols are supported by the PM645A?

   A: The PM645A supports Modbus TCP, EtherNet/IP, and OPC UA communication protocols.

6. Q: What is the operating temperature range for the PM645A?

   A: The PM645A operates in a temperature range of -25°C to +60°C.

7. Q: How is the PM645A mounted?

   A: The PM645A is designed for DIN rail mounting, which simplifies installation in control cabinets.

8. Q: Can the PM645A be used for robotics and automation applications?

   A: Yes, the PM645A is widely used for controlling robotic arms, automated machinery, and complex industrial systems.

9. Q: Does the PM645A have Ethernet communication support?

   A: Yes, the PM645A features two Ethernet ports (10/100/1000 Mbps) for fast and reliable communication.

10. Q: Is the PM645A suitable for process control?

    A: Yes, the PM645A is ideal for process control in industries such as chemicals, food processing, and oil & gas.
