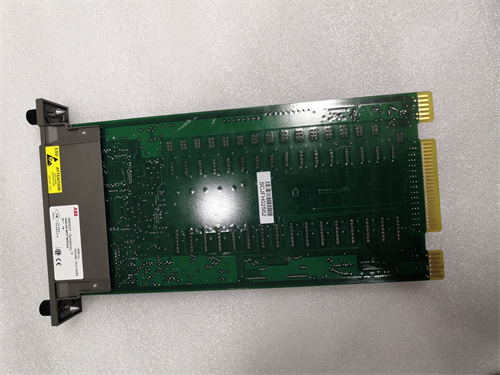

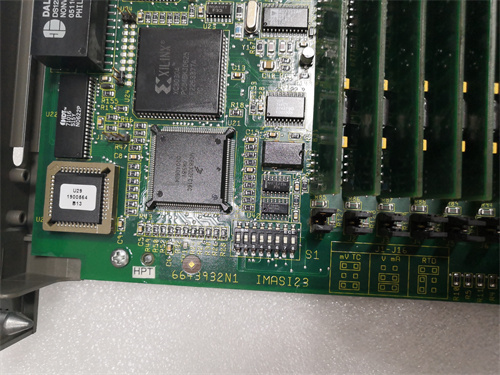

ABB IMASI23 Detailed Information

ABB IMASI23 is a high-performance analog input module,belonging to the ABB Symphony Harmony INFI 90 series,widely used in industrial automation control systems for collecting and processing various analog signals.

Product Features

High-precision signal acquisition

Provides 16 analog input channels and supports a variety of signal types,including current,voltage,temperature and pressure signals.

Each channel can be configured independently to meet the needs of different application scenarios.

Versatility

Supports a variety of analog signal inputs,such as thermocouples,millivolts,RTD(thermal resistance)and high-level signals.

Can be used to collect a variety of process variables such as temperature,pressure,flow,etc.

High reliability

Adopts industrial-grade design and can operate stably in harsh environments.

Provides high-precision and high-resolution signal acquisition to ensure data accuracy.

Compatibility

Fully compatible with ABB Symphony Plus system,supporting seamless integration.

Applicable to a variety of industrial automation systems,such as DCS(distributed control system)and PLC(programmable logic controller).

Flexible configuration

Supports multiple input ranges and signal types,users can configure according to actual needs.

Provides a variety of signal conditioning functions,such as linearization,cold end compensation,etc.

Technical specifications

Input channels:16 analog input channels.

Signal type:current(0-20mA,4-20mA),voltage(0-10V),thermocouple,RTD,millivolt,etc.

Accuracy:up to 0.1%.

Resolution:16 bits.

Update rate:up to 100Hz.

Power supply voltage:24V DC.

Power consumption:about 5W.

Operating temperature range:-20°C to+60°C.

Humidity range:5%to 95%(non-condensing).

Protection level:IP20.
