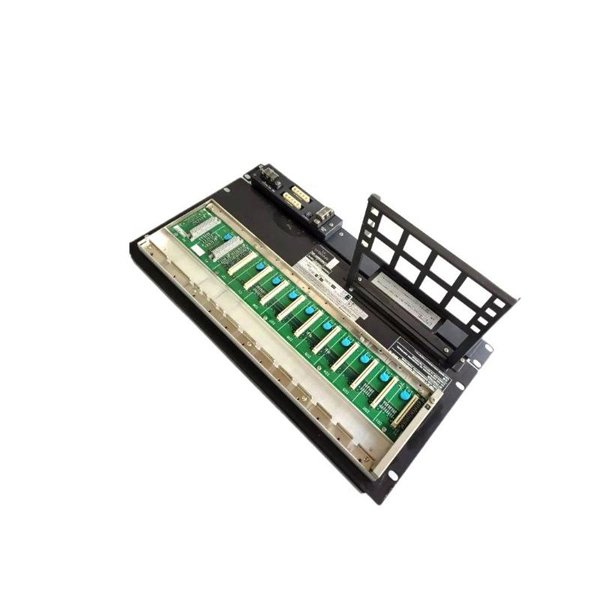

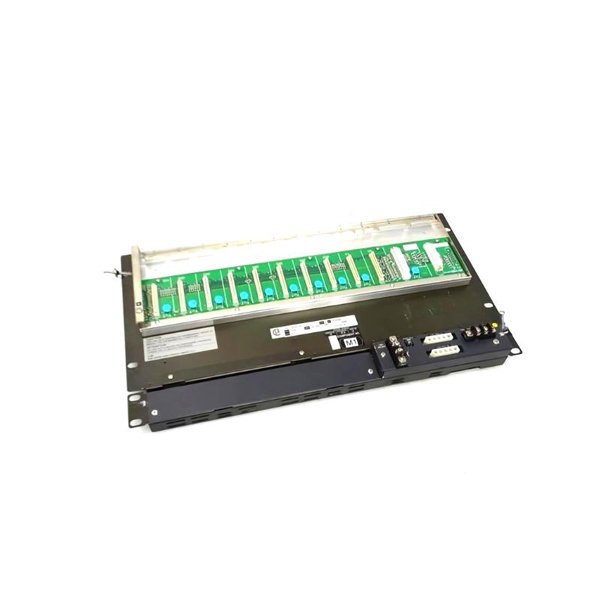

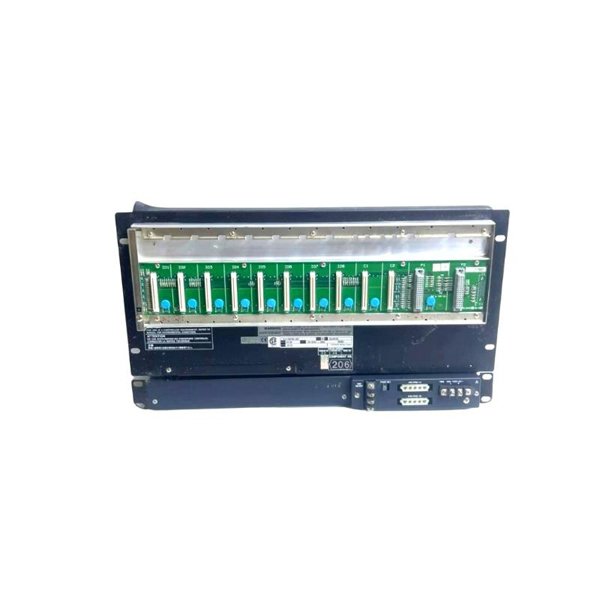

Yokogawa AFV10D-S41211 Duplexed Field Control Unit

The Yokogawa AFV10D-S41211 Duplexed Field Control Unit (FCU) is a high-reliability control device designed for critical industrial automation applications. As a core component of Yokogawa’s CENTUM VP Distributed Control System (DCS), this unit ensures continuous and fault-tolerant operation through its dual-redundant architecture. Equipped with dual CPUs and power supplies, it maintains uninterrupted control even in the event of a component failure, making it ideal for industries where safety and uptime are paramount.

Product Specifications

Applications

The AFV10D-S41211 FCU is designed for use in a variety of industrial sectors where reliable and continuous control is essential:

• Oil & Gas: Manages critical processes in upstream and downstream operations, ensuring safety and efficiency.

• Petrochemical: Controls complex chemical reactions and processes with high reliability.

• Power Generation: Oversees turbine and boiler operations, maintaining system stability.

• Water & Wastewater Treatment: Automates treatment processes, ensuring compliance with environmental standards.

• Pharmaceutical: Maintains precise control over manufacturing processes to meet stringent quality requirements.

• Metallurgy: Regulates high-temperature processes, ensuring product consistency and safety.

• Food & Beverage: Automates production lines, enhancing efficiency and product quality.

• Automotive Manufacturing: Controls assembly lines and robotic systems for consistent production.

Advantages

• High Availability: Dual-redundant design ensures continuous operation even if one component fails.

• Scalability: Supports up to 14 node units, allowing for system expansion as needed.

• Robust Communication: Dual-redundant Vnet/IP interfaces provide reliable and fast data exchange.

• Flexible Power Options: Compatible with various power supply voltages to suit different installations.

• Environmental Resilience: Operates effectively across a wide range of temperatures and humidity levels.

• Ease of Maintenance: Modular design simplifies component replacement and system upgrades.

• Comprehensive Diagnostics: Built-in monitoring features facilitate quick identification and resolution of issues.

• Global Compliance: Meets international safety and quality standards, ensuring suitability for worldwide applications.

Frequently Asked Questions (FAQ)

1. What is the primary function of the AFV10D-S41211?

   It serves as a duplexed field control unit within Yokogawa’s DCS, providing reliable control of industrial processes.

2. How does the dual-redundant design benefit operations?

   It ensures that if one CPU or power supply fails, the other takes over seamlessly, preventing downtime.

3. What types of I/O modules are compatible with this unit?

   It supports a wide range of modules, including analog, digital, and thermocouple inputs/outputs.

4. Can this unit be used in hazardous environments?

   Yes, it complies with certifications like FM Non-Incendive and KC Marking, making it suitable for such areas.

5. What are the power supply options available?

   It can operate on 100–120 V AC, 220–240 V AC, or 24 V DC, depending on the configuration.

6. Is the unit suitable for use in high-temperature environments?

   Yes, it operates effectively within a temperature range of 0°C to 55°C.

7. How is the unit mounted?

   It is designed for 19-inch rack mounting and requires 8 M5 screws for installation.

8. What is the weight of the AFV10D-S41211?

   The unit weighs 8 kg.

9. Does the unit support remote diagnostics?

   Yes, it includes built-in diagnostics for monitoring and troubleshooting.

10. What certifications does the unit have?

    It holds CE, UL, CSA, FM Non-Incendive, and KC Marking certifications.
