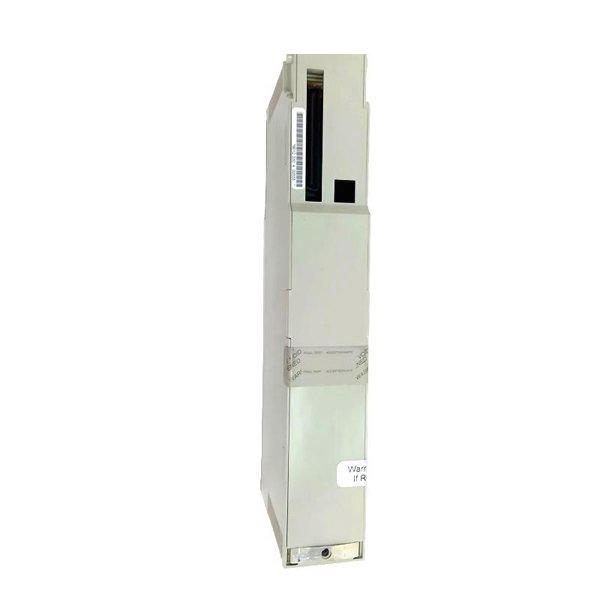

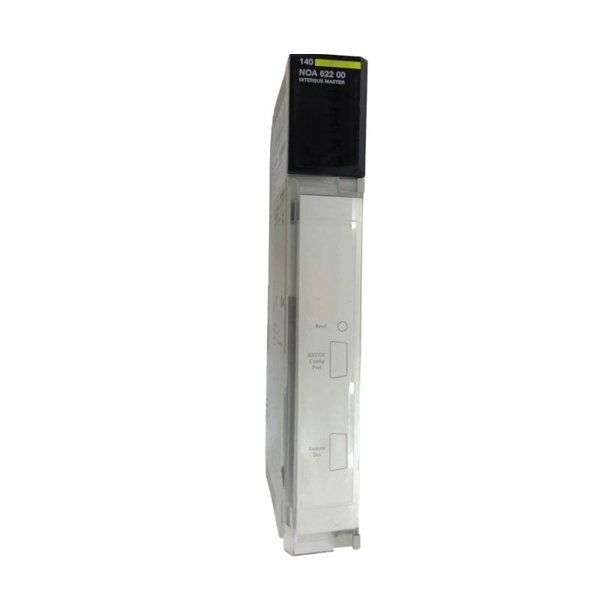

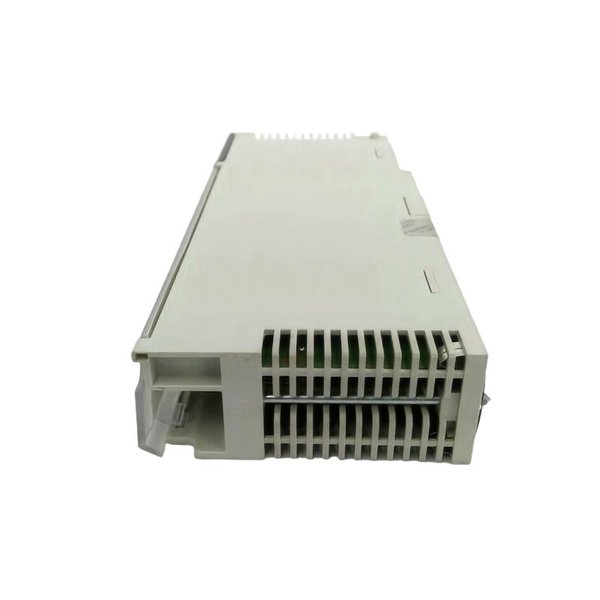

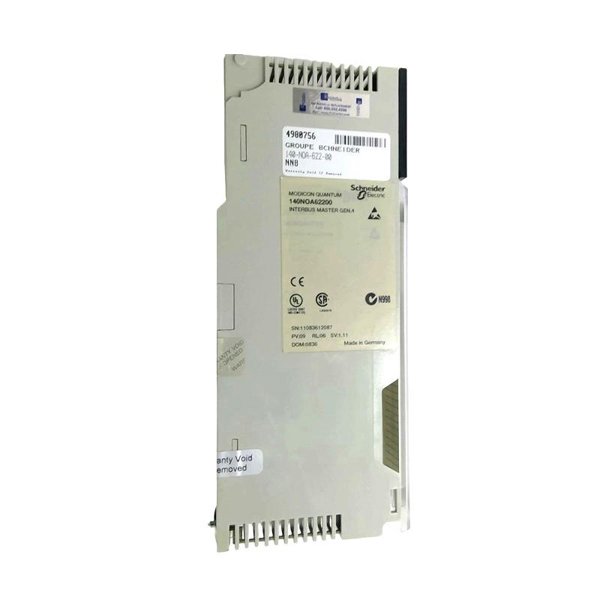

Schneider 140NOA62200C Interbus Master Module

The Schneider Electric 140NOA62200C is a robust Interbus Master Communication Module designed for the Modicon Quantum programmable automation platform. It serves as the master controller in Interbus networks, enabling seamless communication between a Quantum PLC and multiple distributed I/O devices and field equipment that support the Interbus protocol.

The module is optimized for high-speed, deterministic data transmission in complex industrial environments. With enhanced diagnostic capabilities, flexible network topologies, and support for hot swapping, it provides outstanding operational continuity and ease of integration. It helps reduce wiring complexity, improve system scalability, and enhance real-time control in automation systems.

The 140NOA62200C supports up to 512 remote Interbus slave devices, making it ideal for large-scale distributed systems in industries such as automotive, chemical, power generation, food processing, and material handling.

Product Specifications

Applications

The 140NOA62200C module is used wherever high-reliability, high-speed communication between a Quantum PLC and distributed field devices is required. Common applications include:

• Automotive Assembly Plants

  Controls distributed I/O systems, robots, and conveyor mechanisms in production lines.

• Chemical Processing Facilities

  Links field instruments such as pressure sensors and flow meters to central PLCs for closed-loop control.

• Material Handling Systems

  Integrates devices such as scanners, sorters, and diverters into logistics and warehouse automation systems.

• Power Generation Plants

  Facilitates supervisory control of power transformers, valves, and relays through distributed I/O networks.

• Food and Beverage Processing

  Connects temperature sensors, pumps, and control valves to main control units, enhancing food safety and traceability.

• Pharmaceutical and Cleanroom Environments

  Enables deterministic control and monitoring in GMP-regulated environments.

Product Advantages

• High Device Capacity

  Supports up to 512 slave devices per network, suitable for large-scale installations.

• Flexible Topology Support

  Allows line, tree, or star configurations, adapting to various plant layouts.

• Hot-Swappable Module

  Maintenance or replacement can be performed without interrupting system operation.

• Integrated Diagnostic Features

  Real-time fault detection, module status LEDs, and network health indicators reduce downtime.

• Reduced Wiring Complexity

  Single-cable Interbus design simplifies field wiring, reducing installation costs and errors.

• Industrial-Grade Reliability

  Certified for use in harsh industrial conditions, including ATEX-classified zones.

Frequently Asked Questions (FAQ)

1. What is the main function of the 140NOA62200C module?

It acts as an Interbus master controller that manages communication between a Modicon Quantum PLC and Interbus slave devices.

2. Is this module compatible with Unity Pro software?

Yes, it can be configured using Unity Pro and EcoStruxure Control Expert.

3. How many devices can it connect to?

It can support up to 512 Interbus slave devices within a single network.

4. Can it be used in safety-critical applications?

Yes, it is certified for industrial use and supports systems requiring high availability.

5. Is the module hot-swappable?

Yes, it supports hot-swapping, allowing safe replacement during system operation.

6. What kind of wiring does it require?

The module uses shielded twisted pair cabling based on the RS-485 physical layer for communication.

7. Does it provide diagnostic feedback?

Yes, it includes LEDs for module and network diagnostics, aiding in quick fault isolation.

8. Can it be integrated into an existing Interbus system?

Yes, it can serve as the master for existing Interbus slave devices, making upgrades easier.

9. What certifications does the module have?

It is UL, CSA, CE, and ATEX certified for industrial and hazardous environments.

10. What is the typical installation method?

The module is installed in a Modicon Quantum backplane rack and connected via the Quantum bus.
