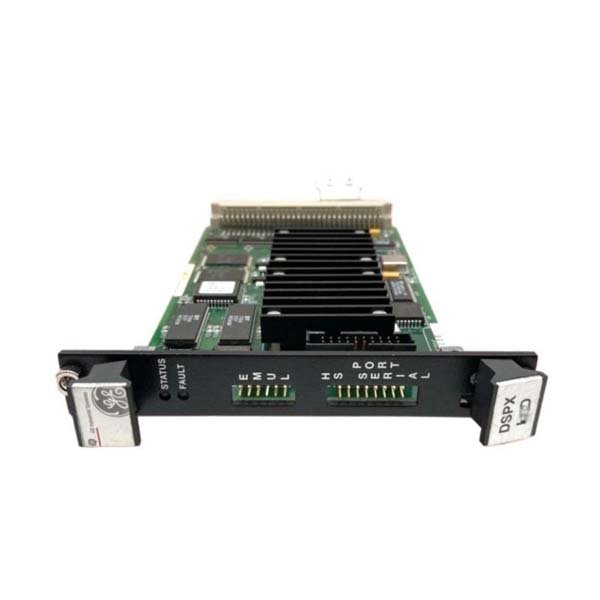

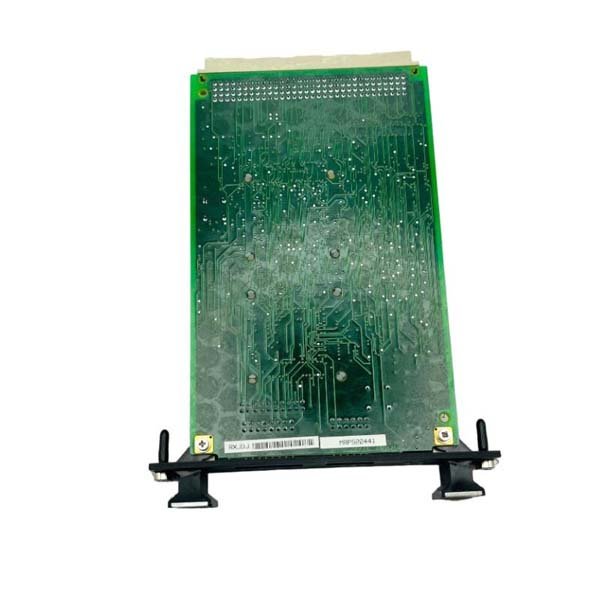

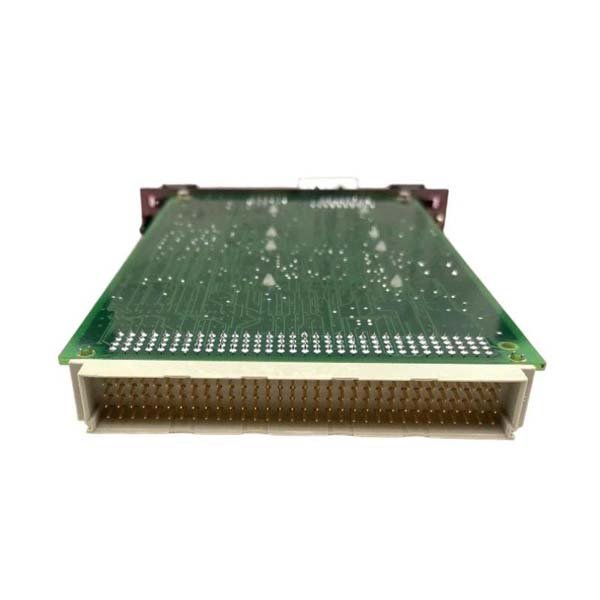

GE Fanuc IS200DSPXH2DBD Discrete Signal Processing Module

The IS200DSPXH2DBD is a discrete signal processing module often found in dense control panels where quick response times are essential. During field inspections, this module shows excellent stability, even when the cabinet experiences electrical noise or high operational loads. Maintenance teams appreciate its robust connectors and clear LED diagnostics, which simplify troubleshooting without needing advanced testing equipment.

Module Specifications and Physical Attributes

Field Usage Notes

In real-world deployments, this module is responsible for:

• Rapid switching and monitoring of discrete inputs.

• Ensuring reliable output to actuators, valves, and alarms.

• Protecting upstream CPUs from electrical noise with built-in isolation.

• Providing immediate visual status feedback via LEDs, which is invaluable during maintenance rounds.

Technicians often report that identifying a single failing channel is straightforward thanks to the LED layout.

Common Maintenance Insights

• Installation checks: Ensure DIN rail or panel mounting is secure; loose seating is a common source of intermittent faults.

• Power connections: Stable 24V DC supply is critical; voltage dips can trigger communication alarms.

• Temperature awareness: Keep cabinets ventilated; the module is stable up to 65°C but benefits from airflow in dense panels.

• Cable management: Proper routing of input/output cables reduces EMI and cross-talk between channels.

• Routine LED observation: Changes in blinking patterns often indicate upcoming channel issues before they affect operations.

FAQs

• Can the module handle simultaneous high-speed input events?

  Yes, all 16 channels can operate concurrently without latency issues.

• Is hot-swapping allowed during operations?

  No, power should be disconnected prior to removal or installation.

• How do LED indicators help troubleshooting?

  Each LED corresponds to a channel, showing active/inactive status and fault detection.

• Is surge protection integrated?

  Yes, 2 kV transient protection is built in.

• Can multiple modules be installed side-by-side?

  Absolutely, the module supports parallel deployment in multi-rack setups.

• How long is the expected operational life?

  MTBF is approximately 70,000 hours under normal conditions.

• Does it require firmware updates for field use?

  No, unless system controllers are upgraded.

• Is it compatible with older GE CPU modules?

  Yes, provided the communication protocol aligns with the CPU.

• How should the module be cleaned?

  Use dry air or soft brush; avoid moisture or solvents.

• What are common causes of intermittent faults?

  Loose connectors, poor grounding, or improperly routed cables.
