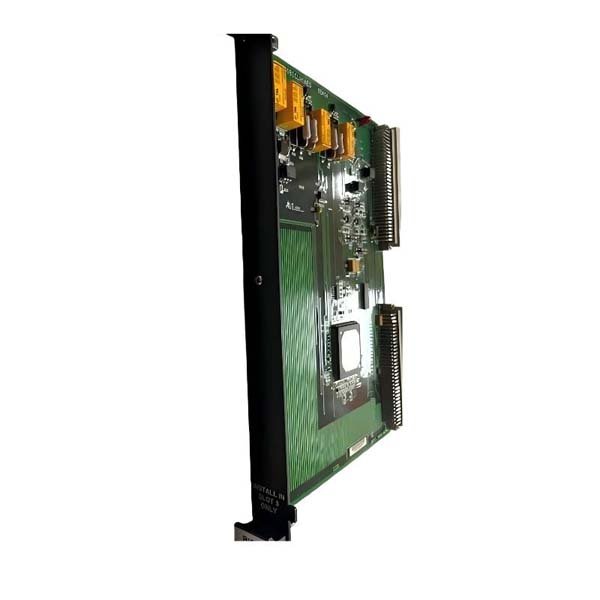

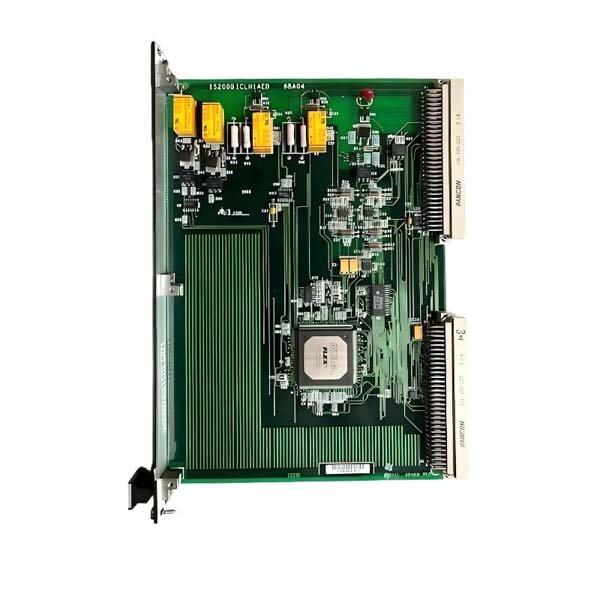

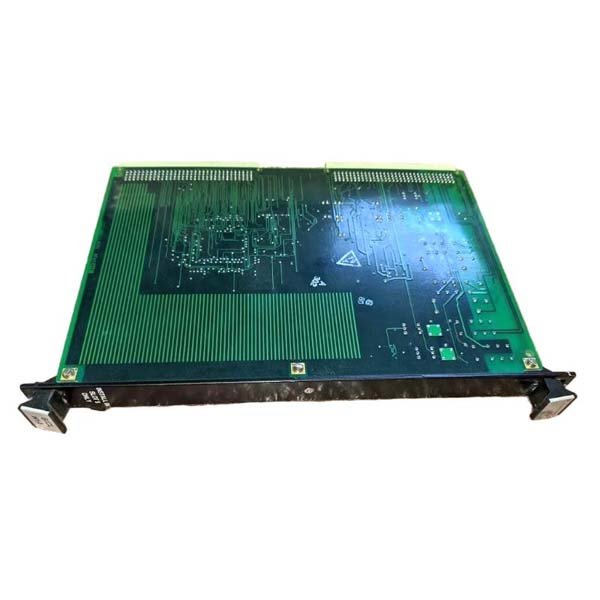

General Electric IS200BICLH1BBA Bus Interface & Control Logic Board

The GE IS200BICLH1BBA is a bus interface and control logic module engineered for systems that rely on clean, deterministic communication between CPU units and distributed I/O clusters. In field evaluations, this board demonstrates excellent signal stability even when placed in cabinets experiencing thermal drift or variable electrical loads. Its architecture focuses on minimizing propagation delay while maintaining electrical robustness, resulting in smoother communication cycles and fewer retransmissions during peak activity.

Technical Profile & Physical Characteristics

Where It Fits in Real Systems

The IS200BICLH1BBA is frequently used in architectures that prioritize communication determinism and fault-tolerant timing. Typical use cases include:

• Distributed turbine control frameworks, where it helps maintain synchronized timing across multiple subsystems.

• High-speed manufacturing cells, ensuring precise coordination of PLC signals across multiple I/O boards.

• Energy sector control platforms, particularly those needing secure and isolated bus communications.

• Critical motion and actuator sequencing, when jitter-free logic transitions are essential.

Its role often goes unnoticed, but in practice, it keeps the entire system coherent by ensuring every module receives data at the right moment.

Why It Performs Well

• FPGA-based logic ensures extremely low latency and consistent timing.

• Strong electrical isolation shields upstream CPUs from noise spikes that would otherwise degrade communication accuracy.

• High-grade components improve long-term thermal stability.

• Compact footprint makes it easy to position near sensitive signal paths.

• Proper grounding layout reduces resonance and stray interference on dense backplanes.

• Enhanced surge protection contributes to overall system longevity, especially in high-energy environments.

FAQs

1. Does this module use FPGA logic?

   Yes, the timing and arbitration functions are FPGA-driven for superior determinism.

2. Is it compatible with older GE backplanes?

   It supports most GE Mark VI-series backplane configurations.

3. Does the module offer isolated communication lines?

   Yes, opto-isolated channels reduce noise infiltration.

4. What typical faults occur during installation?

   Most come from improper grounding or misaligned backplane seating.

5. Can it operate in high-temperature environments?

   Yes, up to 65°C under continuous load.

6. Is the surge protection built-in?

   Yes, 2 kV surge resistance is integrated at the hardware level.

7. Can multiple units operate side-by-side?

   Absolutely, they are designed for parallel backplane deployment.

8. What is the average MTBF?

   Approximately 70,000 hours under normal operation.

9. Does it require firmware updating?

   Only if system timing architecture is modified; otherwise, factory firmware is stable.

10. How can communication errors be diagnosed?

    Use the onboard status LEDs and verify backplane drive signals.
