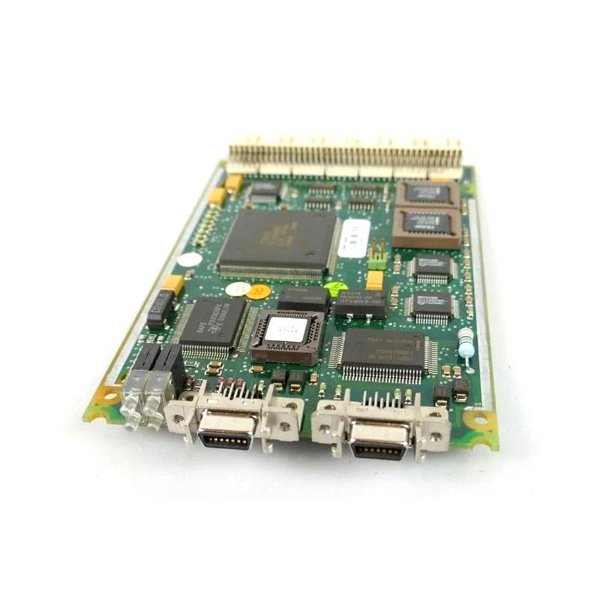

ABB CI522A 3BSE018283R1 Interface Module

The ABB CI522A 3BSE018283R1 is a compact and high-reliability interface module used in distributed control systems and automation platforms. It plays a vital role in connecting controllers to field devices and networks, enabling seamless communication across industrial automation processes. Known for its performance and robustness, the CI522A is designed to support various fieldbus protocols and is compatible with ABB’s 800xA and Freelance systems.

With a slim design measuring 265 × 27 × 120 mm and weighing only 0.2 kg, the module is ideal for applications where space is limited. Its DIN rail mounting and modular form factor make installation and maintenance simple and efficient, even in large-scale industrial environments.

Product Specifications

Product Applications

The CI522A module is widely used in industrial applications that require reliable interface communication between control systems and field devices. Common application areas include:

• Process control in chemical, petrochemical, and oil & gas industries

• Manufacturing automation in automotive and electronics industries

• Power generation and utility network control

• Water and wastewater management systems

• Infrastructure and building automation (HVAC, security)

• Marine and offshore environments requiring rugged communication solutions

Its flexibility and robust design make it suitable for both new installations and system upgrades.

Product Advantages

• Compact form factor suitable for tight control panels

• Simple DIN rail mounting for fast installation

• Compatible with multiple ABB control systems

• Supports standard fieldbus protocols such as PROFIBUS and Modbus

• LED indicators for quick diagnostics and status checks

• Certified for global use with CE and UL compliance

• Low power consumption for energy-efficient systems

• Reliable operation in wide temperature and humidity ranges

• Minimal maintenance requirements

• Long product lifecycle and consistent performance

Frequently Asked Questions (FAQ)

1. What systems does the CI522A support?

   • It is compatible with ABB’s 800xA and Freelance distributed control systems.

2. Is the CI522A module hot-swappable?

   • No, power must be turned off before removal or replacement.

3. Which fieldbus protocols are supported?

   • The CI522A supports PROFIBUS and Modbus protocols.

4. How is the module mounted?

   • It is designed for DIN rail mounting.

5. What indicators does the module provide?

   • It features LED indicators for module status and communication activity.

6. Can the module be used in high-humidity environments?

   • Yes, it can operate in up to 95% non-condensing humidity.

7. Does the CI522A provide isolation between signals?

   • Yes, it includes electrical isolation for safe operation.

8. What power supply is required?

   • A 24 V DC power supply with ±20% tolerance is required.

9. What is the typical operating temperature range?

   • The module operates between -20°C and +60°C.

10. Is it certified for use globally?

    • Yes, it complies with CE, UL, and RoHS standards.
