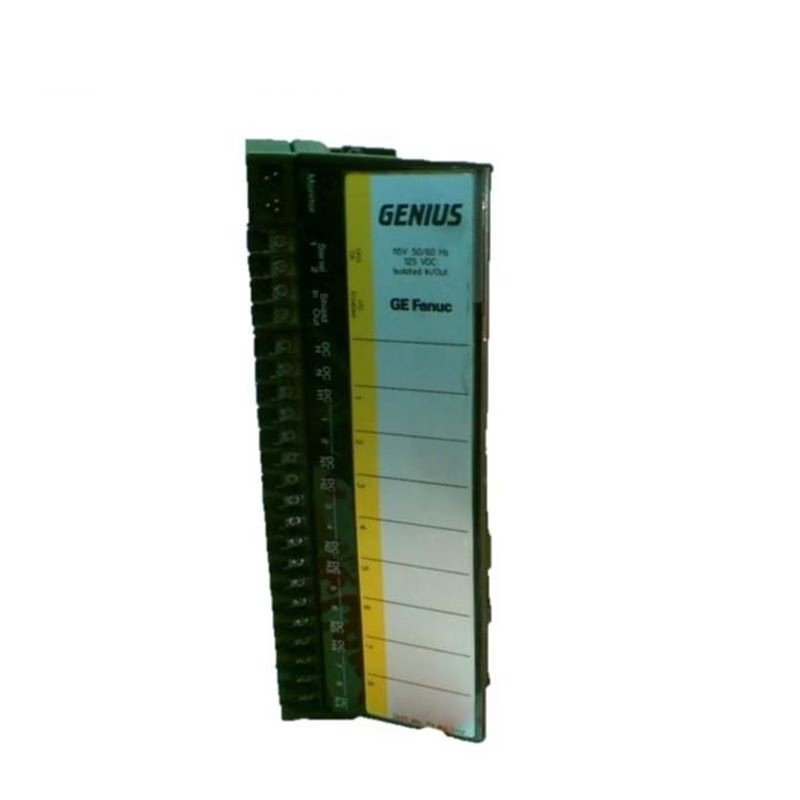

The IC660BBS101 is an 8-circuit I/O block from GE Fanuc’s Genius I/O series. This block supports both 115 Volts AC and 125 Volts DC, providing flexibility for different applications. Each group of 2 I/O circuits is isolated, allowing for reliable operation in various industrial settings. The block does not offer failed switch diagnostics but is ideal for use in systems where manual switches are wired in parallel with outputs. It is built with rugged environmental tolerances and offers essential diagnostic LEDs for status monitoring.

Technical Specifications

• Brand: GE Fanuc
• Series: Genius I/O
• Part Number: IC660BBS101
• Product Type: I/O Block
• Circuits: 8
• Voltage Rating: 115 Volts AC / 125 Volts DC
• Dimensions: 224.4 x 84.8 x 99.3 mm
• Weight: 3.35 lbs
• Operating Temperature: 32°F to 140°F
• Storage Temperature: -40°F to 212°F
• Failed Switch Diagnostics: No
• DC Operating Voltage: 105 to 132 Volts DC
• AC Operating Voltage: 93 to 132 Volts AC
• Input Processing Time: 2 milliseconds (AC), 0.8 milliseconds (DC)
• Block-to-Block Isolation: 1500 Volts
• Peak Heat Dissipation:
  • 16.8 Watts (all I/O as inputs)
  • 45.6 Watts (all I/O as outputs at 2 Amps)
