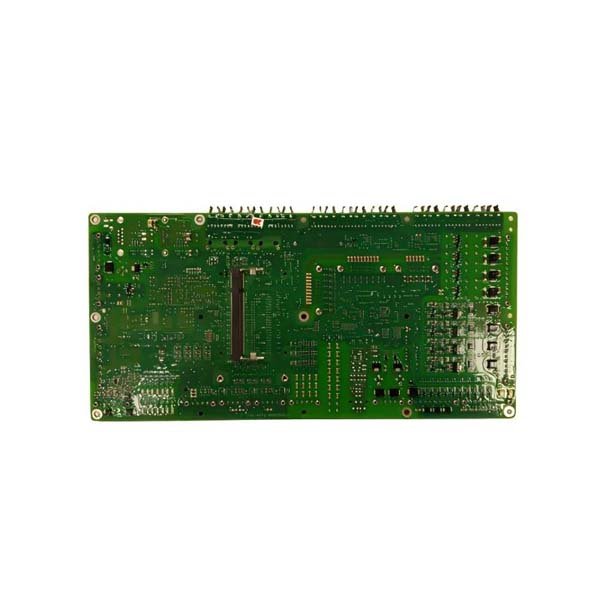

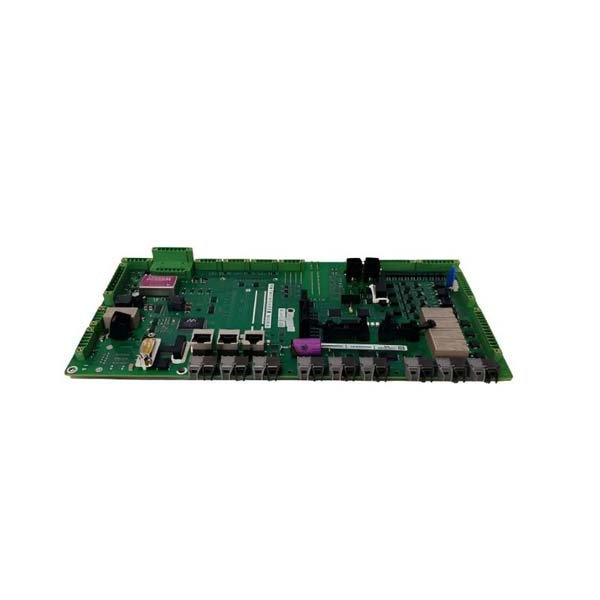

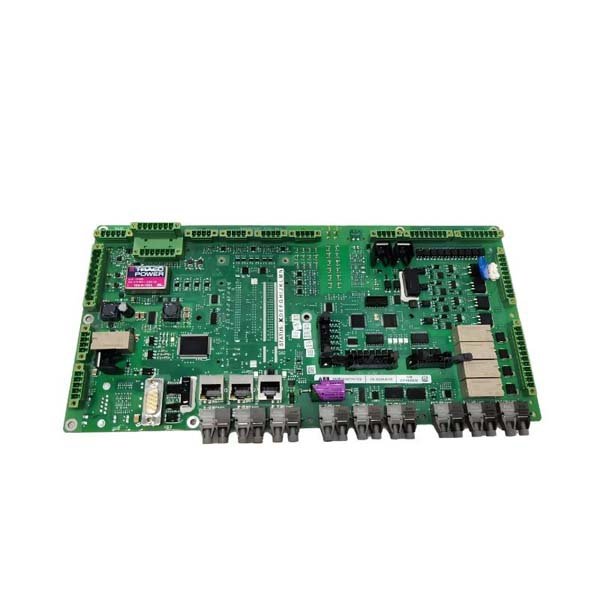

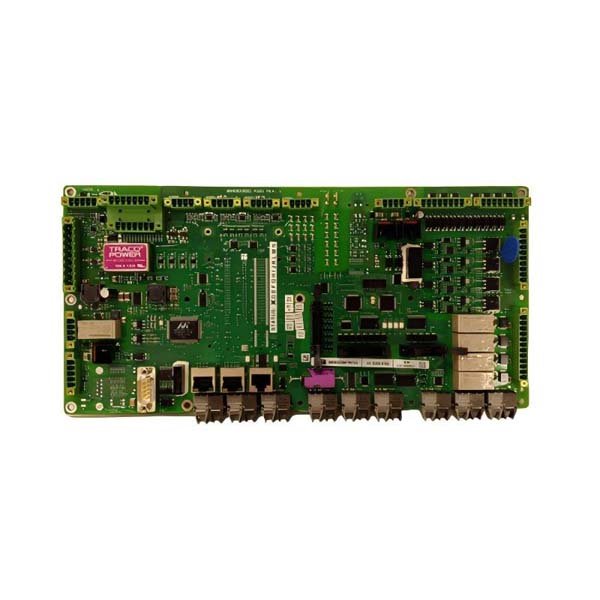

ABB UC D224 A102 Control Module

The ABB UC D224 A102 (3BHE023681R0102) Control Module is a high-performance process controller engineered for ABB’s Symphony Plus and Freelance Distributed Control Systems (DCS). It delivers powerful processing, flexible communication, and robust control logic suitable for mission-critical automation. Designed with ABB’s industrial-grade reliability, this module combines long-term stability, fast execution cycles, and multi-protocol connectivity, making it an ideal choice for complex process industries such as energy, petrochemical, and water treatment.

Technical Specifications

Field Applications

• Power and Energy Plants: Manages turbine and auxiliary systems with high precision and redundancy.

• Oil & Gas Operations: Used in compressor control, pipeline automation, and refinery process units.

• Chemical and Pharmaceutical Plants: Ensures consistent batch control and safety interlocks.

• Water Treatment Facilities: Regulates flow control, filtration, and process sequencing.

• Industrial Manufacturing Lines: Provides real-time logic and interlocking for machine coordination.

Major Advantages

• High-Speed Logic Processing: 32-bit architecture enables sub-millisecond execution times.

• Multi-Network Connectivity: Dual Ethernet and serial communication support complex topologies.

• Seamless DCS Integration: Fully compatible with ABB’s Symphony Plus and Freelance environments.

• Compact Modular Build: Allows for dense cabinet layouts without sacrificing accessibility.

• Enhanced Reliability: EMI-hardened design suitable for high-interference industrial zones.

• Redundancy-Ready Operation: Supports hot backup and fault-tolerant configurations.

• Low Maintenance Demand: Built-in diagnostics and easy firmware updates via Ethernet.

• Energy Efficient: Low 12 W power draw reduces system-level energy load.

• Field-Proven Durability: Designed for 24/7 operation across varied industrial sectors.

• Extended Lifecycle Support: Backed by ABB’s long-term product maintenance and parts program.

FAQs

1. Q: What control systems are compatible with the UC D224 A102?

   A: It integrates seamlessly with ABB Symphony Plus and Freelance DCS systems.

2. Q: Does it support redundant operation?

   A: Yes, it supports redundant control configurations for mission-critical environments.

3. Q: Which industrial communication protocols are available?

   A: Modbus TCP/IP, PROFIBUS DP, and OPC are all supported.

4. Q: What is the nominal power supply requirement?

   A: 24 VDC, operating within a 19–30 VDC range.

5. Q: Can it handle remote firmware updates?

   A: Yes, firmware and configuration updates can be performed via Ethernet.

6. Q: What are its memory capacities?

   A: 64 MB RAM and 32 MB Flash memory.

7. Q: Is there integrated real-time clock functionality?

   A: Yes, it supports internal time synchronization for event recording.

8. Q: Can this module be mounted on a DIN rail?

   A: Yes, it supports both DIN-rail and rack-mounted installation.

9. Q: Does it support ABB’s Control Builder tool?

   A: Yes, configuration and programming are fully supported in ABB Control Builder or Freelance tools.

10. Q: How does the UC D224 A102 differ from the A101 version?

    A: The A102 variant offers enhanced communication performance and improved EMI protection.
