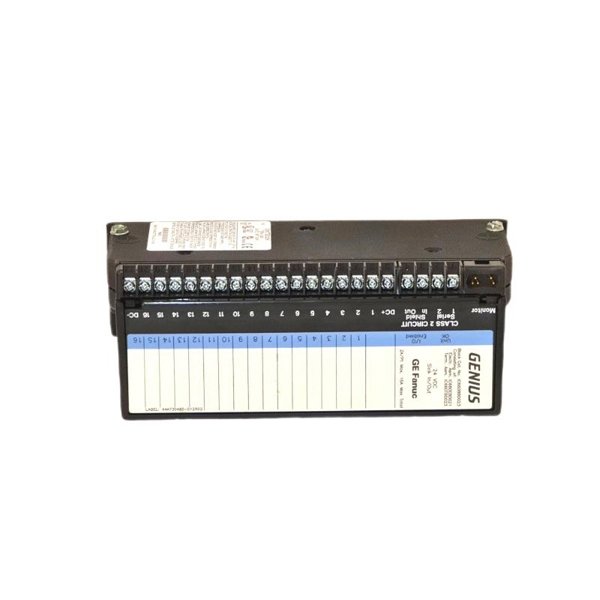

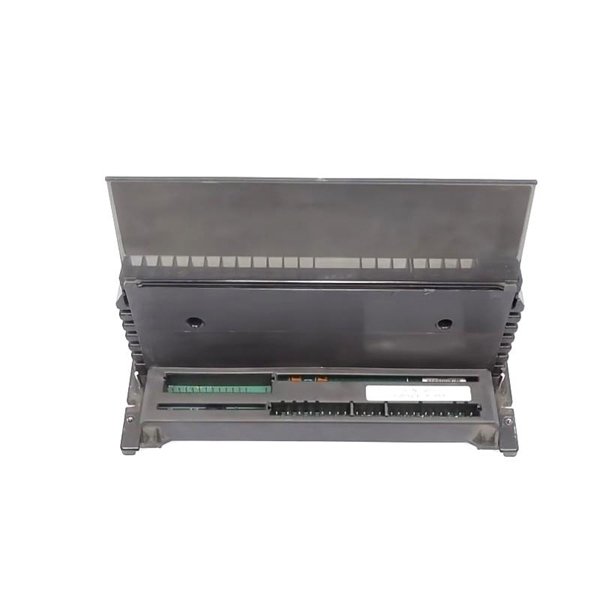

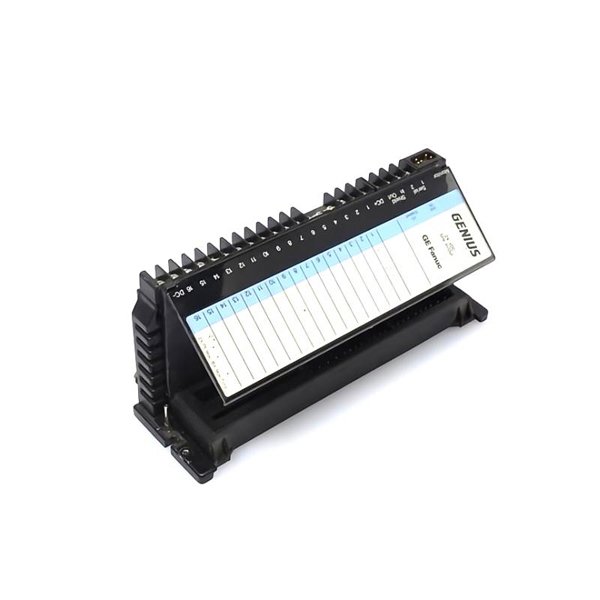

General Electric IC660EBD023 I/O Module Electronics

The GE IC660EBD023 is a discrete input module from GE’s Genius I/O series, designed for use in rugged industrial environments where reliability, durability, and seamless integration are critical. This particular model is the electronics-only variant of a 32-point discrete input module, meaning it requires a compatible terminal block for field wiring connections. The module is capable of receiving a wide range of DC input signals and is suitable for applications requiring large-scale discrete signal acquisition from sensors, switches, and other digital devices.

As a component of the Genius I/O family, the IC660EBD023 is engineered to communicate across the Genius Bus network, providing efficient distributed I/O capabilities while maintaining diagnostic transparency and rapid data updates. Its design adheres to GE’s commitment to quality, delivering a cost-effective and performance-driven solution for automation systems across manufacturing, utilities, and heavy industries.

Technical Specifications

Product Applications

The GE IC660EBD023 excels in demanding applications where dense discrete input handling is essential. Its 32-point input capability makes it ideal for high-channel-count systems and process environments where space and I/O density are key considerations. Common applications include:

• Automated Assembly Lines: Captures feedback from sensors, photo-eyes, and machine status switches.

• Process Control Systems: Collects digital status signals from field instruments in DCS and SCADA systems.

• Material Handling: Ideal for conveyors, packaging, and robotics needing large digital input arrays.

• Energy & Utilities: Used in substation and control room applications for status input from breakers and contactors.

• Oil & Gas Platforms: Suited for digital signal capture in onshore and offshore process automation.

• Public Infrastructure: Applied in traffic control, water treatment, and smart grid control centers.

Product Advantages

• High Input Density: Offers 32 discrete input points in a compact form factor, reducing panel space.

• Rugged Design: Built for continuous operation in industrial settings with wide temperature and humidity tolerances.

• Field Replaceable: Electronics-only design allows replacement without disturbing field wiring.

• Quick Diagnostics: Each channel features LED status indicators for fast issue identification.

• Reliable Communication: Native support for Genius Bus ensures robust and real-time I/O data flow.

• Easy Integration: Compatible with GE Series PLCs and Genius I/O networks for seamless system expansion.

• Noise Immunity: Optical isolation protects internal electronics from field noise and voltage spikes.

• Long Product Life: Proven durability with expected service life over a decade under normal conditions.

FAQ

1. What type of signals does the IC660EBD023 handle?

   It processes 24VDC digital (ON/OFF) signals from field devices such as sensors or switches.

2. Is this a complete module or part of a modular system?

   It is an electronics-only module and must be paired with a terminal assembly like IC660TBD023.

3. Can I use this module in a high-vibration environment?

   Yes, it’s designed to operate in industrial conditions with mechanical stress, when properly mounted.

4. How are the input points protected from electrical noise?

   Each point is optically isolated, providing excellent protection against voltage transients and EMI.

5. Is there any built-in diagnostic capability?

   Yes, each input has a corresponding LED to indicate status, assisting in quick diagnostics.

6. What happens if one input fails—does the module shut down?

   No, the rest of the module continues to operate normally. Each point operates independently.

7. What type of devices can be connected to this input module?

   Compatible with dry contacts, PNP/NPN sensors, or any device providing 24VDC logic level signals.

8. Is this module supported in modern automation systems?

   Yes, it is still widely supported in systems using GE’s Genius I/O infrastructure.

9. Can I mix this module with analog modules in the same network?

   Yes, Genius I/O allows mixed module types on the same bus.

10. What is the difference between IC660EBD023 and IC660BBD023?

    The “E” model is electronics only; the “B” model includes both electronics and terminal block.
