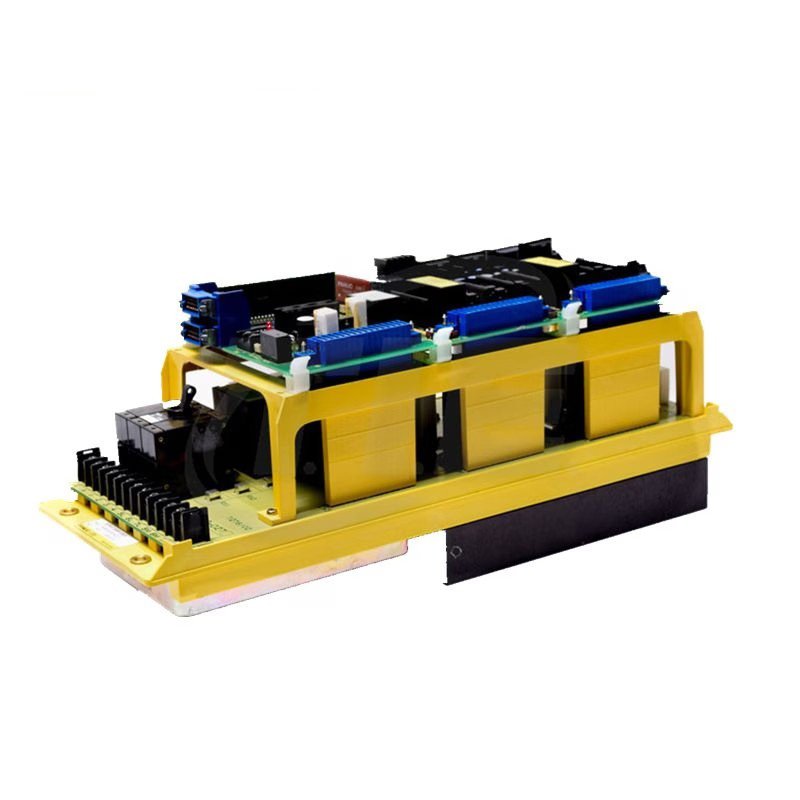

GE Fanuc A06B-6058-H221 Dual-Axis Servo Amplifier

The GE Fanuc A06B-6058-H221 is a high-performance dual-axis servo amplifier designed to drive two servo motors simultaneously. It is commonly used in CNC machinery, robotics, and automated systems, providing precise motion control. With its compact size and robust construction, it excels in demanding industrial environments.

Technical Specifications

• Model: A06B-6058-H221
• Type: Dual-axis servo amplifier
• Input Voltage: 200-240 V AC, 50/60 Hz
• Output Current: 12.0 A per axis (maximum)
• Control Method: Pulse width modulation (PWM)
• Power Rating: 1.5 kW per axis
• Compatibility: Compatible with Fanuc AC servo motors, including alpha, beta, and series 0/1.
• Cooling: Forced air cooling with internal fan
• Mounting Type: Panel or rack-mounted
• Environmental Conditions:
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Humidity: 20% to 90% (non-condensing)
• Dimensions: 6.3 in x 17.3 in x 7.3 in (16.1 cm x 44.0 cm x 18.6 cm)
• Weight: 11 lbs 8.0 oz (5.2 kg)
• Protection Features: Overload, overheat, and short circuit protection
• Communication Interface: Digital and analog input/output signals for motor feedback and control
• Alarms/Diagnostics: Built-in alarm diagnostics for system errors and issues
