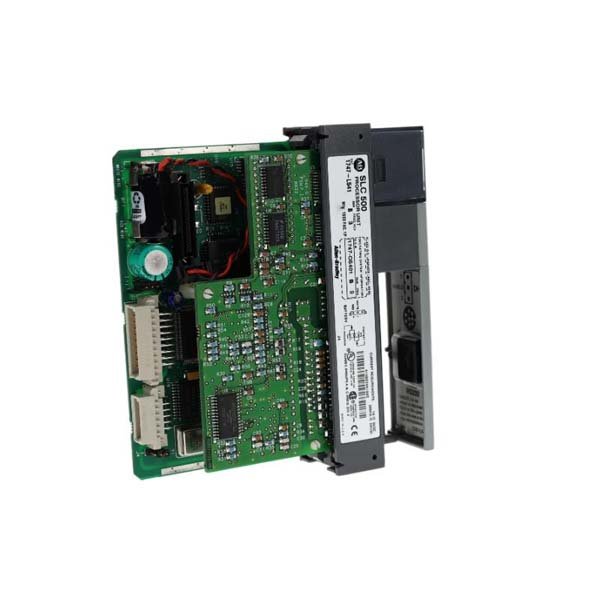

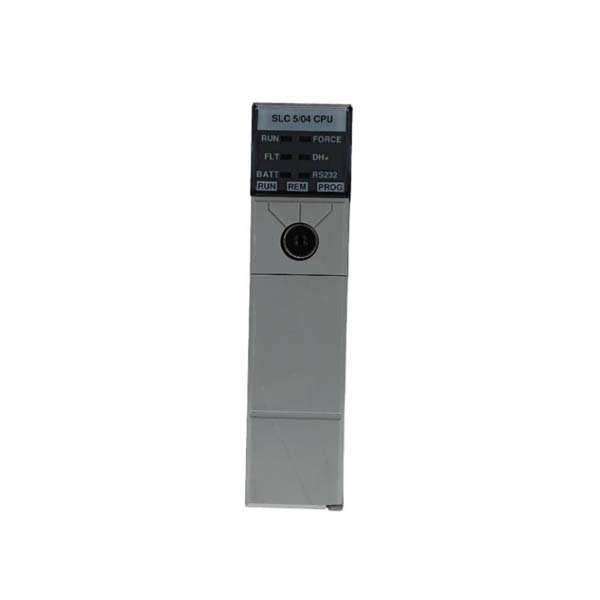

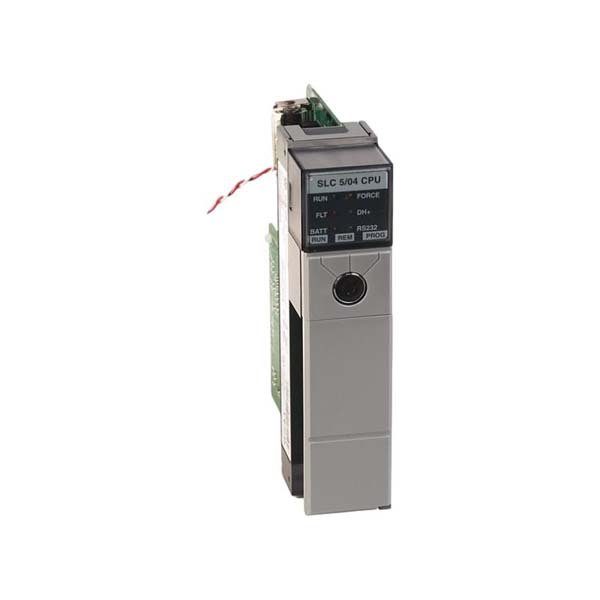

Allen-Bradley 1747-L541 CPU Processor Module

The Allen-Bradley 1747-L541 is a SLC 5/04 CPU Processor Module, engineered for medium to large-scale automation tasks that demand reliable performance and efficient communication. As part of the proven SLC 500 platform, this processor combines Rockwell’s industrial reliability with flexible networking options, including DH+ (Data Highway Plus) and RS-232 ports, ensuring seamless data exchange across legacy and modern control networks.

Its high processing speed, expanded memory, and modular architecture make it a solid choice for applications that require real-time control and long-term system stability.

Core Specifications & Dimensions

Field Applications

The 1747-L541 is highly regarded in industrial automation for its stability, flexible communication, and compatibility with existing SLC infrastructure. It is often deployed in:

• Packaging Systems – Coordinating conveyor belts, sensors, and pneumatic devices.

• Material Handling Equipment – Managing motor-driven actuators and sortation logic.

• Water and Wastewater Treatment Plants – Handling analog process signals and interlocks.

• Food & Beverage Lines – Integrating batch control, filling, and inspection stations.

• Machine Tool Automation – Supervising spindle operations, coolant systems, and motion feedback.

Its proven architecture allows for easy maintenance and minimal downtime in continuous operations.

Technical Advantages

• Proven Reliability: Field-tested design for over two decades in industrial environments.

• Fast Processing: Sub-millisecond scan time ensures responsive control.

• Multiple Network Options: DH+ for peer-to-peer PLC communication and RS-232 for SCADA or HMIs.

• Scalable Memory: 16 KB user memory for medium-complexity control tasks.

• Seamless Integration: Works with both local and distributed I/O networks.

• Robust Diagnostics: Built-in LED status indicators and comprehensive fault reporting.

• Battery-Backed RAM: Prevents program loss during unexpected power interruptions.

• Backwards Compatibility: Compatible with older SLC modules, protecting prior investments.

FAQs

1. What distinguishes the 1747-L541 from the L542 or L543?

   The L541 offers 16 KB of memory, while higher models provide more memory and advanced features.

2. Can it communicate with ControlLogix controllers?

   Yes, using bridging modules like 1756-DHRIO for DH+ communication.

3. Does it support online editing?

   Yes, users can modify ladder logic during operation without stopping the processor.

4. Is it compatible with RSLogix 500 software?

   Fully compatible; configuration and programming are done using RSLogix 500 or Studio 500.

5. What battery type is used for memory retention?

   The 1747-BA lithium battery is used for non-volatile program storage.

6. How many remote racks can it control?

   It can manage up to three remote chassis using the 1747-SN module.

7. Can analog modules be used with it?

   Yes, both analog input and output modules in the 1746 series are supported.

8. Is the processor hot-swappable?

   No, always power down the system before insertion or removal.

9. Does it support PID control loops?

   Yes, it includes built-in PID instructions for process control applications.

10. Is firmware upgradeable?

    Firmware can be updated using Rockwell’s official tools if required for new features or patches.
