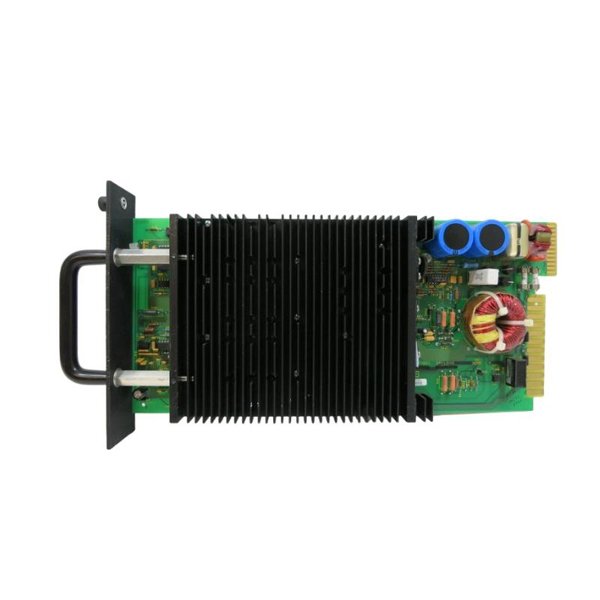

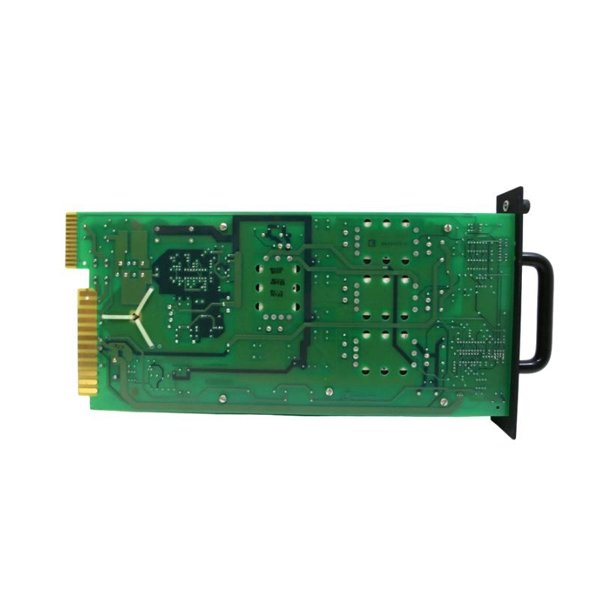

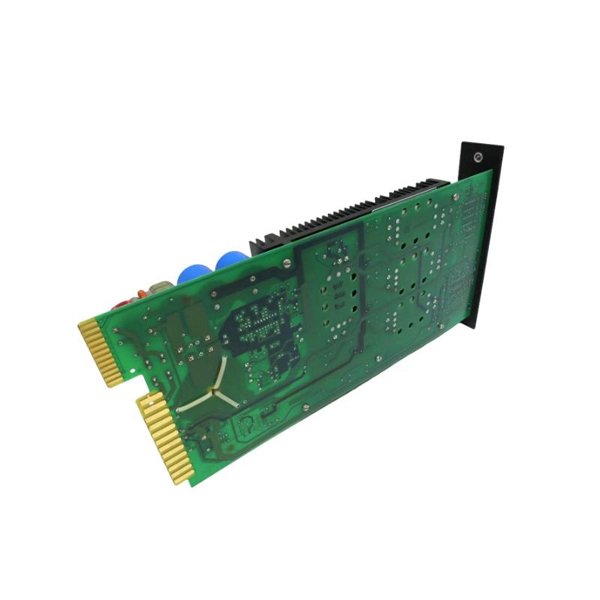

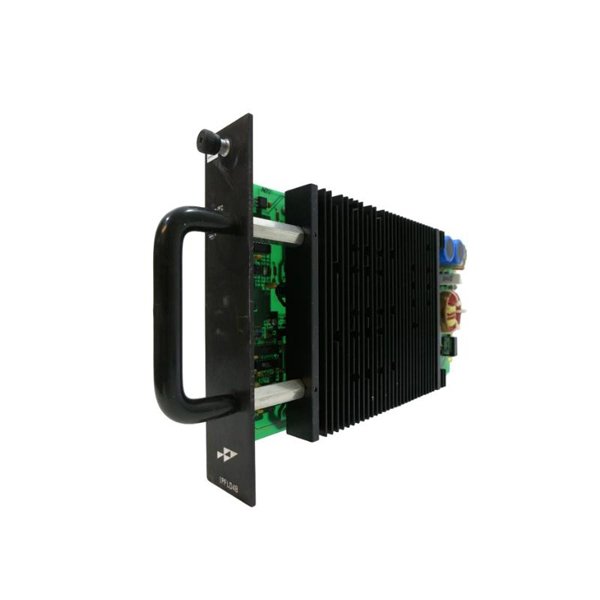

ABB Bailey IPFLD48 6642478B1 Field Power Module

The ABB Bailey IPFLD48 6642478B1 Field Power Module is an essential component in industrial automation systems, particularly in environments that require reliable power distribution to field devices. This module provides power to various input/output (I/O) devices and other connected systems, ensuring smooth and uninterrupted operation. As part of ABB’s trusted range of industrial solutions, the IPFLD48 is designed for high performance, durability, and versatility, making it an ideal choice for applications in control systems, process automation, and more.

This Field Power Module is optimized to support systems that require consistent and stable power, and it plays a critical role in maintaining the integrity of data transmission and control processes in complex automation systems. With its rugged construction and proven technology, it is a reliable solution for power distribution in industrial control systems, particularly in demanding environments.

Product Specifications

The table below provides the key specifications of the ABB Bailey IPFLD48 6642478B1 Field Power Module:

Product Applications

The ABB Bailey IPFLD48 6642478B1 Field Power Module is designed to be used in a variety of industrial and commercial applications. Below are some of the common uses:

1. Automation Systems: It is ideal for supplying power to automation equipment, including PLCs, controllers, and field I/O devices.

2. Control Systems: It serves as the power source for distributed control systems (DCS), supporting the reliable operation of control loops in industrial processes.

3. Process Automation: Commonly used in industries like oil & gas, chemicals, and water treatment, where continuous power supply is necessary for process control equipment.

4. Power Distribution Systems: Helps distribute power efficiently to multiple devices within large-scale industrial power distribution networks.

5. Energy Management: Essential in systems that need to ensure power is consistently available for monitoring and controlling energy usage.

6. Renewable Energy Systems: Provides stable power to remote locations or backup systems in solar, wind, and other renewable energy installations.

Product Advantages

The ABB Bailey IPFLD48 6642478B1 Field Power Module offers several key advantages:

• Reliable Power Supply: Ensures a stable and continuous power supply for automation and control systems, minimizing downtime and enhancing overall system reliability.

• Compact Design: Its compact dimensions (120 × 100 × 25 mm) make it ideal for installation in space-constrained environments without compromising performance.

• Wide Temperature Range: With an operating temperature range from -20°C to +60°C, it is suitable for use in diverse environments, including harsh industrial settings.

• Overload Protection: The module includes built-in protection against overvoltage, overcurrent, and short circuits, ensuring safe and secure operation.

• Flexible Mounting Options: The module can be mounted on DIN rail or directly on panels, offering installation flexibility depending on system requirements.

• High Efficiency: With a power rating of 100W and output current of 4.2A, the IPFLD48 efficiently powers connected devices while minimizing energy losses.

• Global Certifications: The product meets international standards with CE, UL, and IEC certifications, ensuring compliance with safety and quality requirements.

• Fieldbus Communication: Supports digital I/O and fieldbus communication interfaces, allowing for seamless integration into modern industrial systems.

Frequently Asked Questions (FAQ)

1. What is the ABB Bailey IPFLD48 Field Power Module used for?

   • The IPFLD48 provides a reliable power source to industrial automation systems, particularly in control systems and process automation.

2. What is the input voltage of the IPFLD48?

   • The IPFLD48 operates on an input voltage of 48V DC and provides a 24V DC output.

3. What are the protection features of the IPFLD48?

   • The module includes protection against overvoltage, overcurrent, and short circuits, ensuring safe operation in demanding conditions.

4. What is the current rating of the IPFLD48?

   • The current rating of the IPFLD48 is 4.2 A.

5. Can the IPFLD48 be used in outdoor environments?

   • The IPFLD48 can be used in outdoor environments, but it should be installed in a suitable enclosure to protect it from extreme weather conditions.

6. What is the weight of the IPFLD48?

   • The module weighs 0.3 kg, making it lightweight and easy to handle during installation.

7. How is the IPFLD48 mounted?

   • The IPFLD48 can be mounted on a DIN rail or directly onto a panel, offering installation flexibility.

8. What is the operating temperature range for the IPFLD48?

   • The module operates within a temperature range of -20°C to +60°C, making it suitable for use in a variety of environments.

9. What certifications does the IPFLD48 have?

   • The IPFLD48 is certified with CE, UL, and IEC, ensuring it meets international safety and quality standards.

10. What communication interface does the IPFLD48 support?

    • The module supports digital I/O and fieldbus communication interfaces, making it compatible with modern industrial automation systems.
