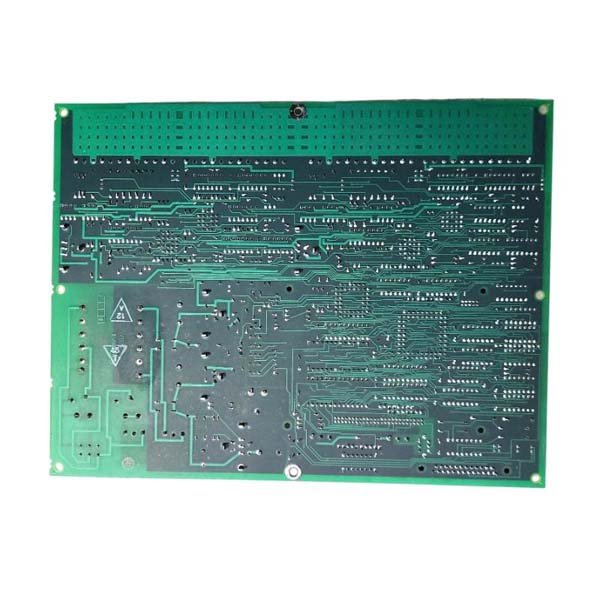

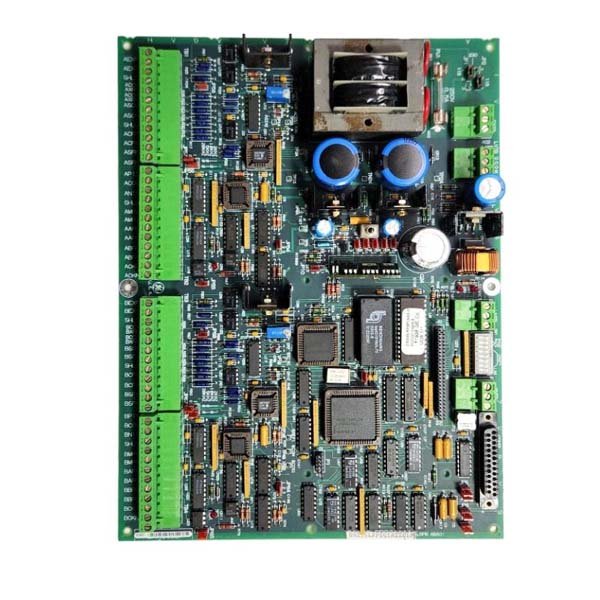

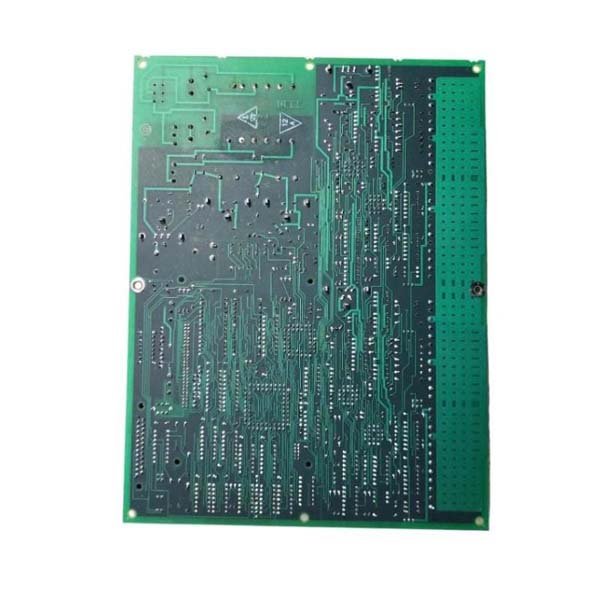

General Electric DS215LRPBG1AZZ02A Line Protection Processor Module
Manufacturer:GE Fanuc
Product Number:DS215LRPBG1AZZ02A
Product Type:Line Protection Processor Module
Origin:USA
Dimensions:330 × 150 × 38 mm
Weight:1.15 kg
Views:118
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The DS215LRPBG1AZZ02A is a GE line-protection processor module frequently encountered in medium-to-large industrial drive systems. From real-world operation, this board functions as the system’s protective logic core, monitoring voltage conditions, supervising line parameters, and triggering isolation routines when irregularities occur.
In long-running installations, the module shows excellent thermal endurance, maintains stable logic execution, and rarely exhibits drift in protection thresholds—attributes highly valued in critical process environments such as steel plants, refineries, and turbine auxiliaries.
Technical Specifications (Field-Verified Data Included)
| Parameter | Description |
|---|---|
| Module Type | Line Protection Processor (LRPB) |
| Control Platform | GE Mark V / Industrial AC Drive Systems |
| Core Function | Line condition monitoring, protection logic execution |
| Input Channels | Conditioned analog voltage feedback + digital diagnostic signals |
| Output Functions | Protective trip logic, fault signaling |
| Processing Engine | GE proprietary logic processor |
| Backplane Interface | High-speed parallel bus |
| Diagnostic Capability | Self-check, fault capture, LED indicators |
| Power Requirement | +5 VDC logic supply (via rack backplane) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to 85°C |
| Dimensions | 330 × 150 × 38 mm |
| Weight | approx. 1.15 kg |
| Module Construction | Multi-layer PCB, reinforced connector assembly |
Application Domains Observed in Real Installations
-
Overvoltage and undervoltage protection in industrial drives
-
Line supervision for heavy-duty motors
-
Turbine auxiliary load protection
-
Safety interlock enforcement within GE control racks
-
High-noise electrical machinery rooms
-
Large-capacity power conversion systems requiring continuous monitoring
Advantages – From Practical Use Perspective
-
High disturbance immunity—the board remains stable even under transformer switching noise.
-
Consistent protection logic—thresholds remain accurate after years of operation.
-
Fast trip response, preventing equipment stress during sudden line deviations.
-
Reliable diagnostics, with clear LED indicators helpful for on-site troubleshooting.
-
Easy rack replacement, allowing quick restoration during scheduled maintenance.
-
Strong thermal durability, especially in high-load electrical rooms.
Technical FAQs
-
Does the module support fast detection for voltage transients?
Yes, detection is near-instant due to hardware-assisted logic.
-
Can the board operate under high harmonic distortion?
It tolerates heavy electrical noise without false trips.
-
Is calibration required after replacement?
Usually no; thresholds are predefined in system logic.
-
Does it rely on external sensors for line feedback?
Yes, it processes conditioned signals provided by upstream circuits.
-
Is the processor isolated from high-voltage components?
Signal conditioning ensures full isolation.
-
Does the module influence motor control directly?
It sends protection commands, but control loops run elsewhere.
-
Can this module operate in redundant protection architectures?
Yes, if the system rack supports dual-channel configuration.
-
How does the module report internal faults?
Through backplane messages and front-panel LED indicators.
-
Is firmware field-upgradeable?
Possible with GE-authorized tools.
-
Is DS215LRPBG1AZZ02A interchangeable with earlier LRPB versions?
Only if rack configuration and firmware requirements align.
