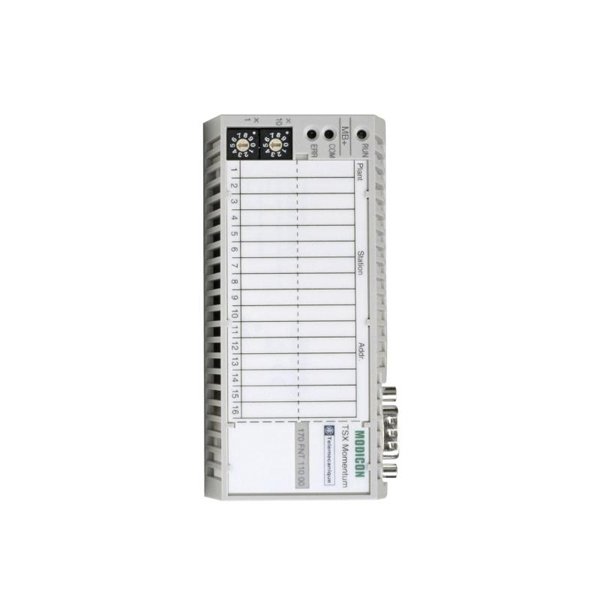

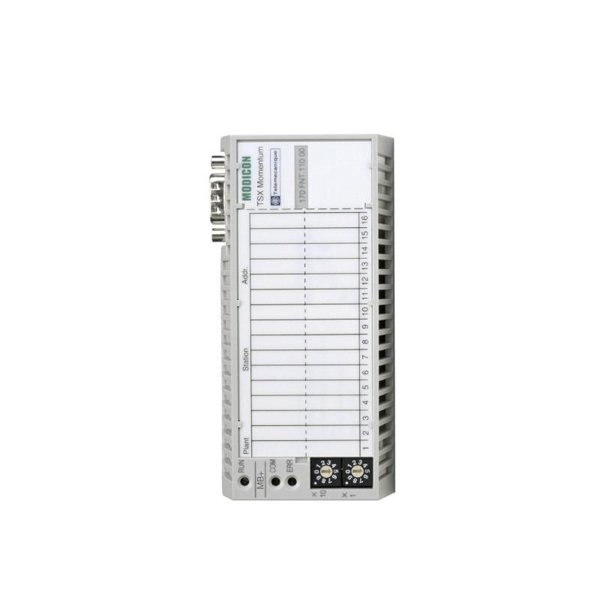

Schneider 170FNT11000 Fipio Communication Adaptor

The Schneider 170FNT11000 Fipio Communication Adapter is an essential component for industrial automation systems, designed to integrate fieldbus communication into Schneider Electric’s automation architecture. The Fipio Communication Adapter is part of the Fipio series of communication solutions, aimed at ensuring seamless and high-performance data transmission between different controllers and devices in complex industrial environments. By offering efficient communication between various fieldbus networks, this adapter enhances the connectivity and interoperability of Schneider Electric’s automation systems.

The 170FNT11000 adapter serves as a bridge for devices communicating via Schneider Electric’s proprietary fieldbus systems, facilitating a reliable, real-time data exchange. It is particularly useful in applications where different communication protocols need to interact, making it an ideal solution for integrated control and monitoring systems.

Product Specifications

Applications

The Schneider 170FNT11000 Fipio Communication Adapter finds its place in a variety of industrial applications where reliable communication and data exchange between different systems and devices are critical. Its robust and flexible design makes it suitable for applications in diverse fields such as:

1. Industrial Automation: Enables seamless communication between Schneider Electric’s PLCs, HMIs, and other automation devices, enhancing overall system efficiency.

2. Process Control Systems: Facilitates integration of fieldbus devices with control systems, making it ideal for industries like chemical processing, water treatment, and food processing.

3. Building Automation: Provides communication capabilities for building management systems, including HVAC, lighting control, and security systems.

4. Energy Management: Used in energy monitoring systems, enabling efficient communication between smart meters, controllers, and energy management systems.

5. Manufacturing: Ensures real-time data exchange in manufacturing lines, improving operational efficiency, predictive maintenance, and system integration.

6. Logistics and Distribution: Allows integration of automated warehouse systems with management systems, enhancing the efficiency of inventory management and order fulfillment.

7. Renewable Energy: Enables communication between renewable energy generation systems (such as wind and solar) and grid management systems.

8. Marine and Offshore: Suitable for rugged environments, the adapter allows communication between equipment on ships or offshore platforms.

Advantages

• Seamless Integration: The 170FNT11000 adapter allows Schneider Electric systems to interface with multiple communication protocols, including Modbus and Ethernet/IP, enhancing the flexibility of system integration.

• High Reliability: With its rugged design and IP20 enclosure rating, it performs consistently in industrial environments, ensuring reliable data transmission under demanding conditions.

• Real-Time Data Exchange: The high-speed communication capability of 10/100 Mbps ensures that real-time data is transmitted between devices with minimal latency, crucial for time-sensitive applications.

• Ease of Installation: Mountable on a standard DIN rail, the adapter is easy to install and set up, reducing the time needed for deployment in industrial systems.

• Enhanced Compatibility: The 170FNT11000 is compatible with a wide range of Schneider Electric devices, ensuring smooth and seamless operation across different devices and systems.

• Durability: Designed to withstand harsh industrial environments, the adapter operates reliably in temperatures ranging from -40°C to 85°C, offering extended service life.

• Flexible Communication: Supports multiple communication protocols, making it an excellent choice for applications that require connectivity between devices with different communication standards.

FAQ

1. What is the primary function of the Schneider 170FNT11000 Fipio Communication Adapter?

   The 170FNT11000 serves as a communication bridge, enabling reliable data exchange between Schneider Electric field devices and various industrial control systems.

2. What communication protocols are supported by the 170FNT11000 adapter?

   It supports Fipio, Modbus TCP/IP, and Ethernet/IP communication protocols.

3. What is the maximum operating temperature for the Schneider 170FNT11000?

   The maximum operating temperature is 60°C.

4. How is the Schneider 170FNT11000 mounted?

   It is mounted on a standard DIN rail for easy installation.

5. What is the weight of the 170FNT11000 adapter?

   The adapter weighs 0.11 kg.

6. What types of applications are suitable for the 170FNT11000 adapter?

   The adapter is suitable for applications in industrial automation, process control, building automation, energy management, and more.

7. Can the Schneider 170FNT11000 be used in harsh environments?

   Yes, with its IP20 enclosure rating, the adapter is designed to operate reliably in industrial environments.

8. What is the communication speed of the 170FNT11000?

   The adapter supports 10/100 Mbps communication speeds.

9. What is the storage temperature range of the 170FNT11000?

   The storage temperature range is from -40°C to 85°C.

10. Does the 170FNT11000 have any LED indicators?

    Yes, it has LEDs for power, status, and error indicators.
