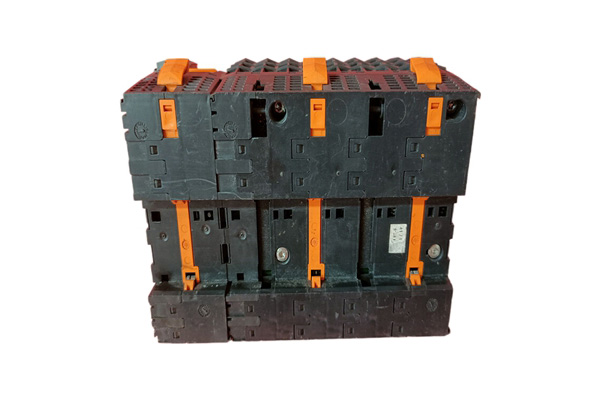

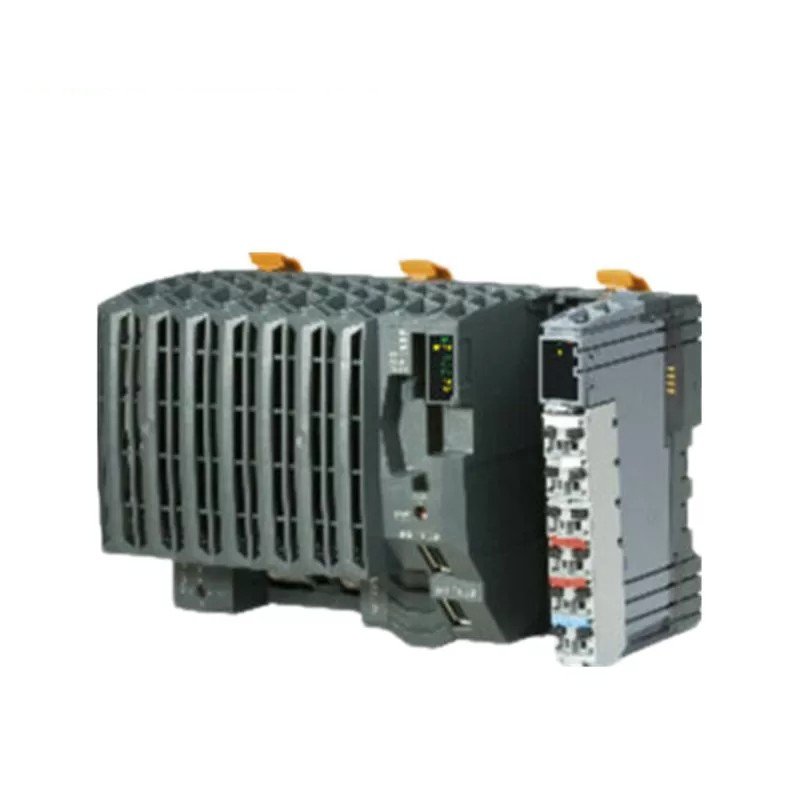

The B&R X20CP1486 module is a high-performance CPU module commonly used in industrial automation systems, responsible for processing input and output signals and communicating with other devices. The following is a detailed introduction to this module.

Product Overview

Model: X20CP1486

Processor: Intel Celeron 650

Memory configuration: 64 MB DRAM, 1 MB SRAM, erasable application memory in Compact Flash

Communication interface: including 1 Ethernet interface (100 Base-T), 1 POWERLINK V1/V2 interface, 2 USB interfaces, and 1 RS232 interface

Other configurations: 1 slot for X20IF module, including power module, terminal block TB12 and slot cover, X20 locking plate X20AC0SR1

Main features

Multifunctionality: The X20CP1486 module has multiple input and output functions, which can process signals such as digital input, digital output, analog input, and analog output.

High performance: This module is equipped with high-performance processors and memory, capable of handling complex input and output tasks and ensuring stable system operation.

Rich communication interfaces: Provides multiple communication interfaces, allowing for data exchange and communication with other devices and systems, such as Ethernet, serial interfaces, etc.

Modular design: The module adopts a modular design, which is easy to install, maintain, and upgrade, and can flexibly expand functions according to needs.

Industrial grade design: The module has industrial grade design and reliability, can adapt to harsh industrial environments, and ensure the reliability and stability of the system.

Application field

The B&R X20CP1486 module is commonly used in various industrial automation systems, such as production line control, process control, equipment monitoring, and other fields. By processing input and output signals and communicating with other devices, this module can achieve monitoring, control, and optimization of industrial processes, improving production efficiency and product quality.

Installation and application environment requirements

Power supply voltage: The power supply voltage is 24VDC, and the maximum cannot exceed -15%/+20%. The casing and power terminals should have reliable grounding.

Working environment temperature and humidity:

Working temperature: Horizontal installation 0 ° C -+55 ° C; Vertical installation from 0 ° C to+50 ° C.

Relative humidity: 5% -95%, non condensing.

The electrical cabinet must have a heat dissipation device to maintain ventilation, and fans or air conditioning can be installed.

Installation space requirement: Leave a 35mm space above the X20 module for easy machine heat dissipation; There must be a 10mm space left and right on both sides of the X20 system.

35mm guide rail requirement: The installation guide rails for PCC and IO modules must comply with EN 50022 standard.

Summary

The B&R X20CP1486 module, as a high-performance industrial automation CPU module, has a wide range of application prospects in the field of industrial automation due to its multifunctionality, high performance, rich communication interfaces, and modular design. Meanwhile, its industrial grade design and reliability also ensure stable operation of the system in harsh environments.
