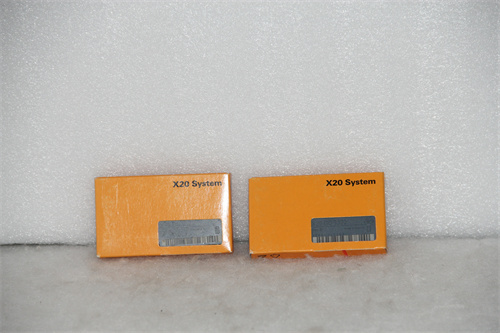

B&R X20DO9322 Product Overview

B&R X20DO9322 is a digital output module manufactured by B&R,Austria.The following is a detailed introduction to the module.

Basic features

Brand and model:B&R,model X20DO9322.

Output port:Equipped with 12 output ports for single-line connection,designed for source output lines.

Status indication:Each channel has a status indicator to display I/O functions,operating status,and module status.

Diagnostic function:The module has a running/error status indication,using LED status indicators and software for diagnosis.

Electrical characteristics

Nominal voltage:24VDC.

Switching voltage:24VDC-15%/+20%.

Nominal output current:0.5A.

Total nominal current:6A.

Connection type:single-line connection.

Output protection:With thermal shutdown protection in case of overcurrent or short circuit,and internal freewheeling diode for switching inductive loads.

Application environment

Certification and standards:Comply with various international certifications and standards such as CE,UKCA,ATEX,etc.

Ambient temperature:-25 to 60°C(after derating)for active horizontal installation direction,-40 to 85°C for storage and transportation.

Ambient humidity:Operating humidity is 5%to 95%,non-condensing.

Installation direction:Supports horizontal and vertical installation.

Installation altitude:0 to 2000 meters above sea level without restrictions.When exceeding 2000 meters,the ambient temperature needs to be reduced by 0.5°C every 100 meters.

Application fields

Machinery manufacturing industry:Provide industry application integration and training services for local OEM manufacturers.

Plastics,textiles,printing,packaging,electronic semiconductors,wind power generation and solar energy:B&R provides a comprehensive solution including industry software integration,including the X20DO9322 module.

Process control field:B&R provides efficient system hardware and software platforms in terms of integrated control,energy optimization,and comprehensive management with its flexible architecture design,open system platform,good communication connectivity,easy configuration,easy maintenance,and high system reliability.X20DO9322 has also been widely used in these fields.

Other industries:such as transportation,energy and electricity,oil and gas,water treatment,food and beverage,machine tools,and pharmaceuticals.
