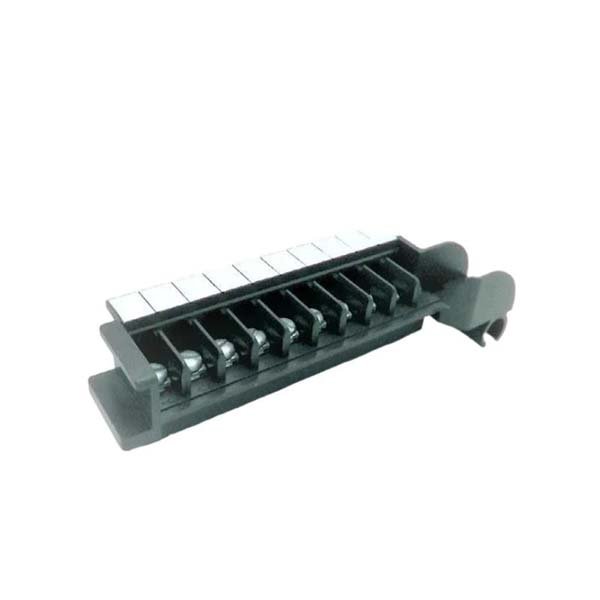

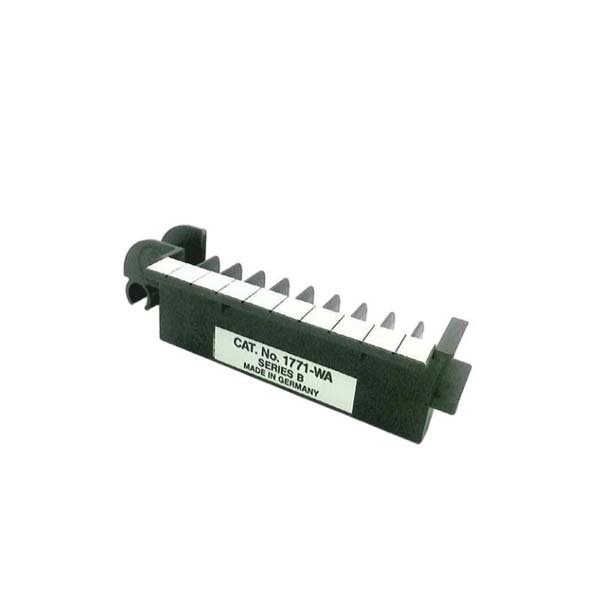

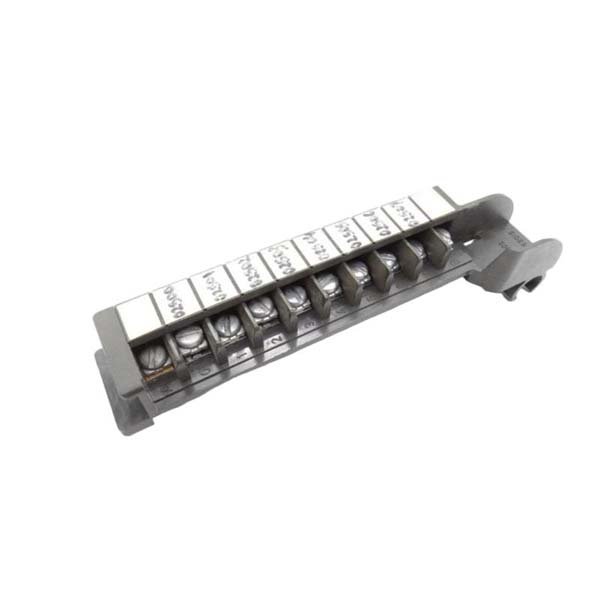

Allen-Bradley 1771-WA Terminal Wiring Arm Module

The Allen-Bradley 1771-WA Terminal Wiring Arm is an essential component in the PLC-5 I/O chassis ecosystem, designed to simplify the connection between field wiring and I/O modules. Acting as a removable interface, it allows for quick maintenance, testing, and module replacement without disturbing existing wiring — a key advantage in large-scale automation setups where uptime is critical.

Engineered for reliability and ease of installation, the 1771-WA provides solid terminal connections that maintain electrical integrity in high-vibration or industrial environments. It is a passive mechanical interface but plays a vital role in the durability and maintainability of Allen-Bradley PLC systems.

Technical Data and Specifications

Applications in Industrial Systems

The 1771-WA is primarily used in control cabinets and I/O panels where structured wiring and serviceability are paramount. Typical applications include:

• PLC-5 I/O rack installations for process or discrete control systems

• Machine control panels requiring modular and serviceable wiring

• Power distribution cabinets interfacing with analog or digital I/O modules

• Testing and commissioning setups, where quick disconnect functionality is beneficial

• Maintenance-intensive systems, such as production lines with frequent module replacements

The removable wiring arm design allows engineers to swap or inspect modules without disconnecting field wires — drastically reducing downtime during maintenance.

Advantages and Key Features

• Quick Module Replacement: Enables I/O module removal without rewiring, minimizing downtime.

• Secure Connection Design: Screw-clamp terminals ensure stable, vibration-resistant electrical contact.

• Ease of Installation: Clear labeling and guided alignment simplify wiring setup.

• Durability: Resistant to industrial conditions including temperature fluctuations and dust exposure.

• Compatibility: Works seamlessly with multiple 1771-series I/O modules.

• Compact Design: Saves space in control cabinets and allows dense wiring configurations.

• Cost-Efficient Maintenance: Supports modular replacement without costly rewiring labor.

• Test Accessibility: Allows quick voltage or signal checks at terminal points.

FAQs

1. Which I/O modules are compatible with the 1771-WA?

   It is compatible with most standard 1771 digital and analog I/O modules in the PLC-5 family.

2. Can the wiring arm handle shielded cables?

   Yes, provided that the cable shields are properly terminated outside the arm.

3. Is it hot-swappable?

   The arm can be detached only when the system is powered down to prevent signal disruption.

4. Does the module provide any electrical isolation?

   No, it is purely a mechanical interface with no isolation or active circuitry.

5. What wire gauge sizes are accepted?

   The 1771-WA accepts 22 to 14 AWG solid or stranded wires.

6. Is torque control necessary when securing wires?

   Yes, apply 0.68 Nm (6 lb-in) torque for optimal contact reliability.

7. Does it support both analog and digital signals?

   Yes, it can be used for both types depending on the attached I/O module.

8. How is the wiring arm labeled for connections?

   Terminal positions are numbered for easy correlation with the module’s pinout.

9. Can this wiring arm be reused after module replacement?

   Yes, it is reusable provided terminals remain mechanically intact.

10. Is it backward-compatible with legacy PLC-2 systems?

    No, the 1771-WA is designed exclusively for 1771-series PLC-5 I/O modules.
