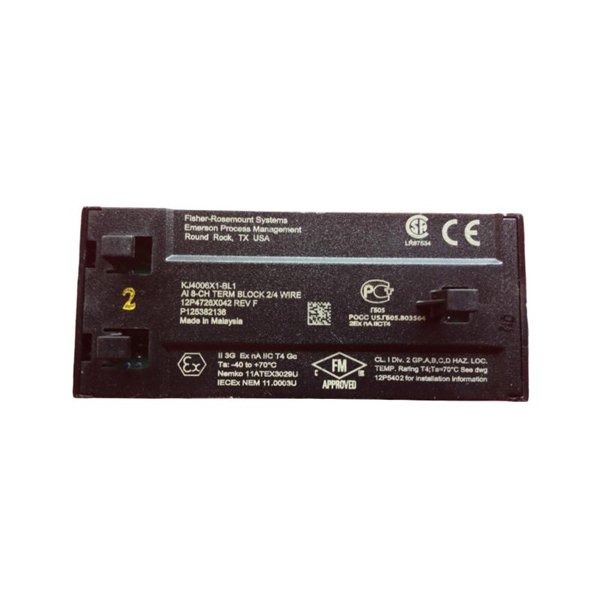

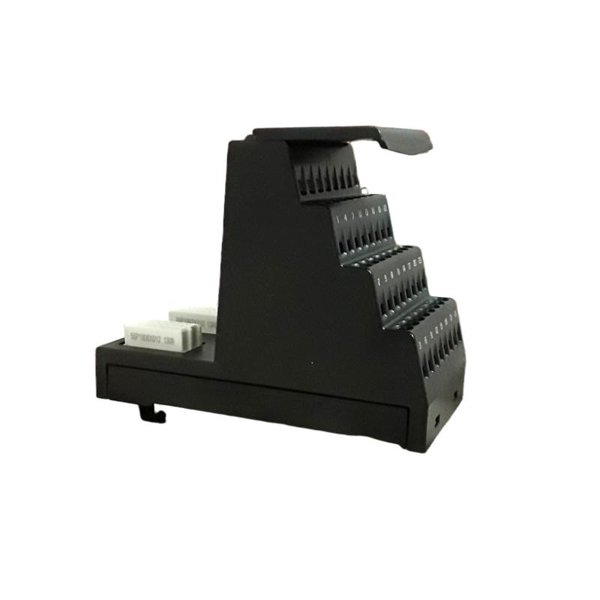

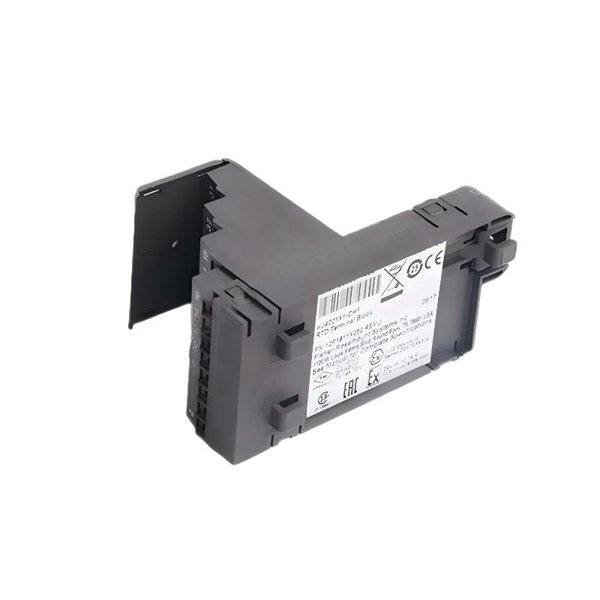

Emerson KJ4006X1-BL1 AI 8-Channel Terminal Block

The Emerson KJ4006X1-BL1 AI 8-Channel Terminal Block is a high-precision interface module designed to provide reliable connections between analog input signals and Emerson’s DeltaV™ control systems. Built for demanding industrial environments, this terminal block simplifies wiring, improves signal integrity, and supports eight independent analog input channels simultaneously.

Its rugged build and compact form make it suitable for space-constrained panels while ensuring consistent performance. With advanced noise immunity and exceptional compatibility, the KJ4006X1-BL1 is a key component for industries such as oil and gas, chemical processing, power generation, and manufacturing automation.

Technical Specifications

Applications

• Process Automation – Accurate signal interface for process variables in control loops.

• Oil and Gas Industry – Reliable analog input connections for wellhead monitoring and pipeline control systems.

• Power Generation – Integration with monitoring systems for turbines and auxiliary equipment.

• Chemical and Pharmaceutical Plants – High signal integrity ensures precise data for quality control.

• Water Treatment Facilities – Robust performance for real-time process monitoring and feedback control.

• Manufacturing Automation – Streamlined integration with modern production and assembly line systems.

Advantages

• High Channel Density – Supports eight independent channels in a compact module for efficient space utilization.

• Superior Signal Integrity – Advanced design ensures minimal noise and interference for accurate readings.

• Easy Installation – Compatible with DIN-rail or panel mounting with secure screw terminal connections.

• Durable and Reliable – Designed for harsh environments with wide temperature and humidity tolerances.

• Enhanced Safety – Isolation features prevent ground loops and signal cross-talk between channels.

• Universal Compatibility – Integrates seamlessly with Emerson DeltaV™ and Ovation™ platforms.

• Low Maintenance – Industrial-grade components ensure a long service life with minimal upkeep.

• Scalability – Easily adaptable to both small-scale and complex automation projects.

• Compliance and Certification – Meets global industrial standards, ensuring reliability and safety.

• Future-Ready – Designed to support evolving industrial automation and digital transformation needs.

FAQ

Q1: Which control systems are compatible with the KJ4006X1-BL1?

A1: It is compatible with Emerson DeltaV™ and Ovation™ control systems.

Q2: How many analog input channels does it support?

A2: It supports eight fully independent channels for simultaneous signal processing.

Q3: What types of signals can the terminal block handle?

A3: It supports 4–20 mA, 1–5 V, and other standard analog input signals.

Q4: Does the module provide isolation?

A4: Yes, it features channel-to-channel and channel-to-ground isolation for optimal safety and performance.

Q5: What is the recommended power supply voltage?

A5: It requires a 24 VDC supply for stable operation.

Q6: Is it suitable for high-temperature environments?

A6: Yes, it operates effectively within a range of –20 °C to +70 °C.

Q7: Can it be mounted on a DIN rail?

A7: Yes, the module supports both DIN-rail and panel mounting options for installation flexibility.

Q8: What certifications does the KJ4006X1-BL1 hold?

A8: It is CE, UL, ATEX, and RoHS certified, meeting international industrial standards.

Q9: How does the board prevent signal interference?

A9: It incorporates advanced shielding and isolation to minimize noise and interference.

Q10: Is the KJ4006X1-BL1 easy to maintain?

A10: Yes, its robust design and high-quality components minimize maintenance requirements.
