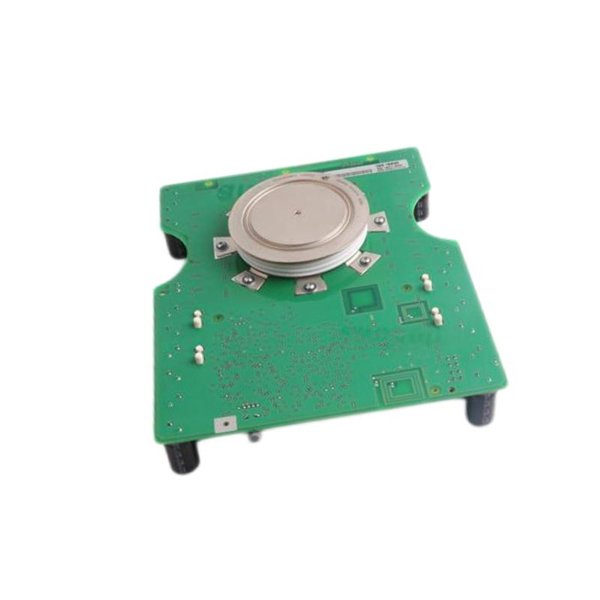

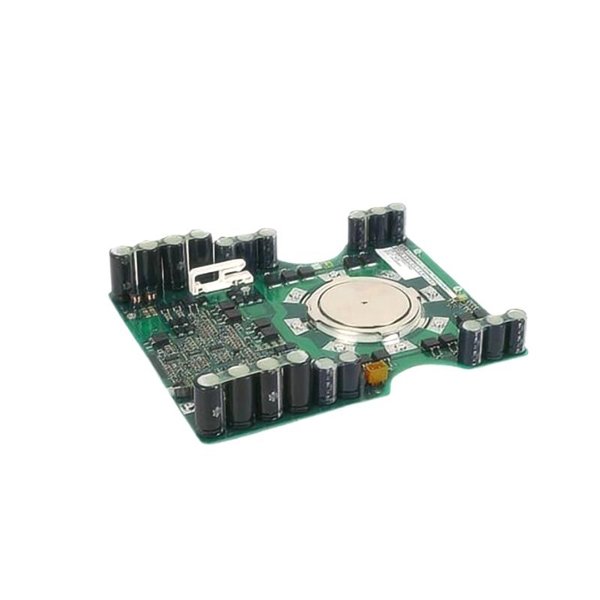

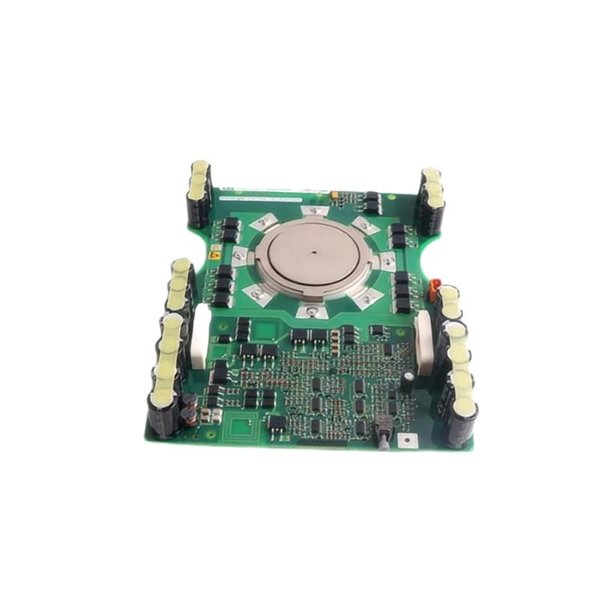

ABB 5SHX1060H0001 3BHL000392P0101 IGCT Module

The ABB 5SHX1060H0001 3BHL000392P0101 IGCT (Integrated Gate-Commutated Thyristor) module is a high-performance power electronic component designed for use in various industrial applications. This IGCT module offers advanced performance and reliability for power switching systems, making it ideal for demanding applications where high efficiency, robustness, and fast switching are crucial.

IGCTs are an important part of ABB’s technology portfolio, providing optimal solutions for industrial power conversion needs. This particular module integrates gate control with the thyristor structure, resulting in enhanced switching characteristics, lower losses, and more efficient operation in power converters and motor control systems.

Product Specifications

Below is a detailed table of the key specifications of the ABB 5SHX1060H0001 3BHL000392P0101 IGCT Module:

Product Applications

The ABB 5SHX1060H0001 3BHL000392P0101 IGCT Module is ideal for applications in various fields where reliable and efficient power conversion is required. Its robust design makes it suitable for heavy-duty industrial environments. Some of its key applications include:

• Motor Drives: Used in high-power motor control systems for industries such as pumps, compressors, and fans.

• Power Converters: Essential for power conversion in renewable energy systems, including wind turbines and photovoltaic inverters.

• Railway Traction Systems: Utilized in traction converters for rail transport to manage energy conversion efficiently.

• HVDC Systems: Used in high-voltage direct current (HVDC) systems to improve power transmission efficiency and reduce losses.

• Induction Heating: Deployed in induction heating applications for industrial processing, ensuring reliable and precise heating.

• Variable Frequency Drives (VFDs): Used in VFDs for controlling the speed and torque of motors in industrial automation.

Product Advantages

The ABB 5SHX1060H0001 3BHL000392P0101 IGCT Module comes with several advantages that make it stand out in the market:

1. High Switching Efficiency: With a low switching loss and high frequency, this module is highly efficient, ensuring lower overall system energy consumption.

2. Compact Design: The small form factor makes it easy to integrate into compact systems while maintaining high performance.

3. Integrated Gate Drive: The integration of the gate drive system reduces the complexity of wiring and assembly, enhancing overall reliability.

4. Wide Operating Temperature Range: With an operating temperature range from -40°C to +125°C, this module can function in a variety of harsh environmental conditions.

5. High Reliability: Built with high-quality materials and designed for demanding applications, the module offers long-lasting performance with minimal maintenance.

6. Improved Thermal Management: The module is optimized for efficient heat dissipation, ensuring that it performs well even in high-power applications.

7. Low Switching Noise: Minimizing switching noise is essential for applications like communication systems, making this module an excellent choice for clean, noise-free operation.

8. Enhanced Protection Features: The module includes built-in protection features such as overcurrent and overvoltage protection, ensuring system safety.

9. Scalable: Can be used in various configurations and scales of power systems, offering flexibility for different applications.

10. Cost-Effective: Despite its high performance, the module offers a cost-effective solution for industries looking for quality without high investment costs.

FAQ

1. What is an IGCT module?

   • An IGCT (Integrated Gate-Commutated Thyristor) is a power electronic component designed to handle high-voltage and high-current switching applications.

2. What are the main advantages of using an IGCT module?

   • The main advantages include high switching efficiency, robust design, and low switching losses, making them ideal for high-power applications.

3. What is the rated voltage and current of this module?

   • The rated voltage is 4,500 V, and the rated current is 1,060 A.

4. What applications can this module be used in?

   • It is used in motor drives, power converters, railway traction systems, HVDC systems, induction heating, and VFDs.

5. What is the operating temperature range for this module?

   • The module operates within a temperature range of -40°C to +125°C.

6. What cooling method is required for this module?

   • The module requires forced air or liquid cooling to maintain optimal operating conditions.

7. What is the weight of the ABB 5SHX1060H0001 IGCT module?

   • The module weighs 1.2 kg.

8. Can this module be used in renewable energy systems?

   • Yes, it is suitable for use in power conversion systems for renewable energy applications, such as wind turbines and solar inverters.

9. Is the gate drive integrated into the module?

   • Yes, the gate drive is integrated into the module, simplifying the design and reducing wiring complexity.

10. What are the protection features of this module?

• The module includes protection features such as overcurrent and overvoltage protection to safeguard the system.
