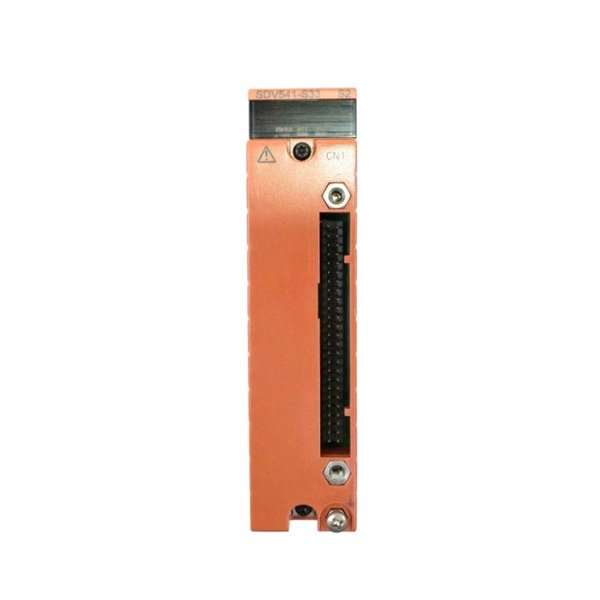

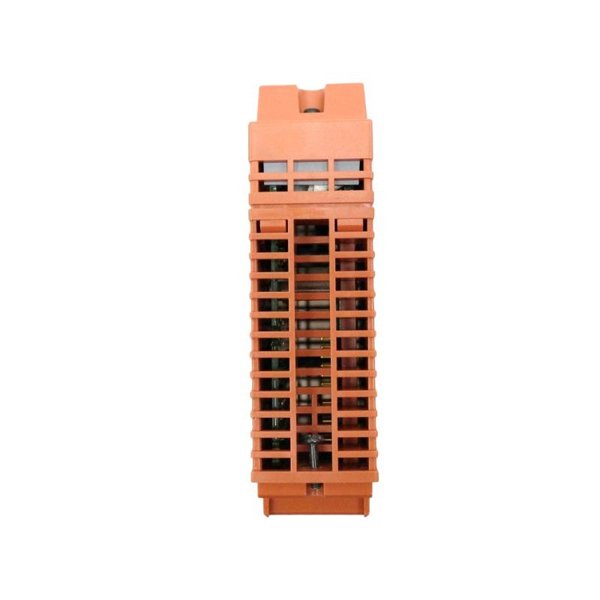

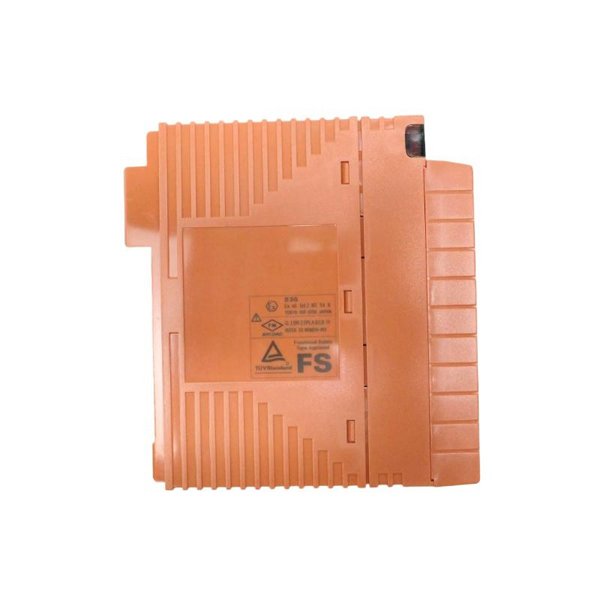

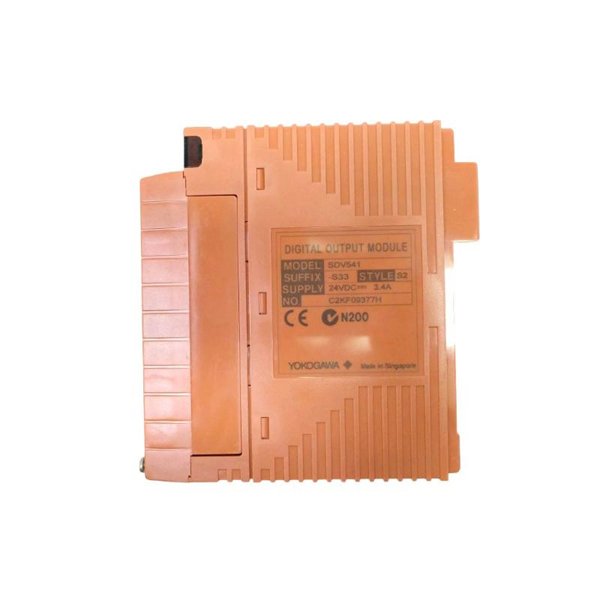

Yokogawa SDV541-S33 Digital Output Module
Manufacturer:Yokogawa
Product Number:SDV541-S33
Product Type:Digital Output Module
Origin:Japan
Dimensions:130 x 107.5 x 32.8mm
Weight:0.29kg
Views:48
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Yokogawa SDV541-S33 is a high-performance 16-channel Digital Output Module designed for safety instrumented systems within the ProSafe-RS series. It provides isolated 24 V DC current source outputs and is suitable for demanding industrial automation and safety applications. Each channel is independently isolated and offers fast response times, robust diagnostics, and flexible external connection options.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SDV541-S33 |
| Number of Output Channels | 16 (individually isolated) |
| Output Voltage | 24 V DC |
| Output Voltage Drop | ≤ 1 V |
| External Power Supply Rating | 24 V DC, 3.4 A minimum |
| External Power Supply Tolerance | +20%, -10% |
| Maximum Load Current | 0.2 A per channel (3.2 A total) |
| Minimum Load Current | 35 mA |
| Load Resistance Range | 120 to 685 Ω |
| Output Format | Current Source |
| Max. Leak Current (Output OFF) | 1.6 mA |
| Output Response Time | ≤ 30 ms |
| Withstand Voltage | 2 kV AC (1 min between signal and system) |
| Current Consumption (5 V DC) | Max. 300 mA |
| Current Consumption (24 V DC) | Max. 150 mA |
| External Connections | Pressure clamp, MIL cable, or AKB signal cable |
| Dimensions (W x H x D) | 130 x 107.5 x 32.8 mm |
| Weight | 0.29 kg |
Applications
-
Emergency Shutdown Systems (ESD)
-
Fire and Gas Systems (F&G)
-
Distributed Control Systems (DCS) Safety Integration
-
Remote I/O Systems in safety-critical environments
Product Advantages
-
High channel density (16 outputs) reduces panel space
-
Supports redundant configuration for enhanced system availability
-
Provides fast output response (≤30 ms) for time-critical operations
-
Built-in isolation improves safety and noise immunity
-
Supports multiple wiring options for flexible installation
-
Field diagnostics improve maintainability and fault detection
-
Conforms to ISA G3 standards and suitable for harsh environments
FAQs (Frequently Asked Questions)
Q1: What is the maximum current per channel of the SDV541-S33?
A1: It supports up to 0.2 A per output channel.
Q2: Can the SDV541-S33 be used in redundant safety configurations?
A2: Yes, it supports dual-redundant configurations.
Q3: What type of load can be connected to the output?
A3: It supports resistive loads within 120 to 685 Ω.
Q4: Does the module provide isolation for each output?
A4: Yes, each channel is module-isolated.
Q5: What diagnostic features are supported?
A5: It includes field wiring diagnostic support via system configuration.
Q6: Is the output type sourcing or sinking?
A6: It is a current source (sourcing) output.
Q7: What is the typical output response time?
A7: It responds within 30 milliseconds.
Q8: Can this module be used in explosion-proof environments?
A8: Yes, versions with explosion protection are available.
Q9: What connection types are supported?
A9: Pressure clamp terminals, MIL cables, or AKB signal cables.
Q10: What are the dimensions and weight of this module?
A10: It measures 130 x 107.5 x 32.8 mm and weighs approximately 0.29 kg.
