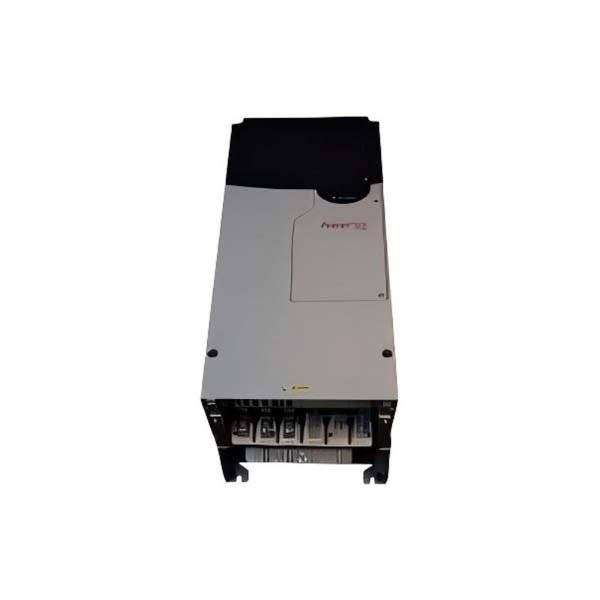

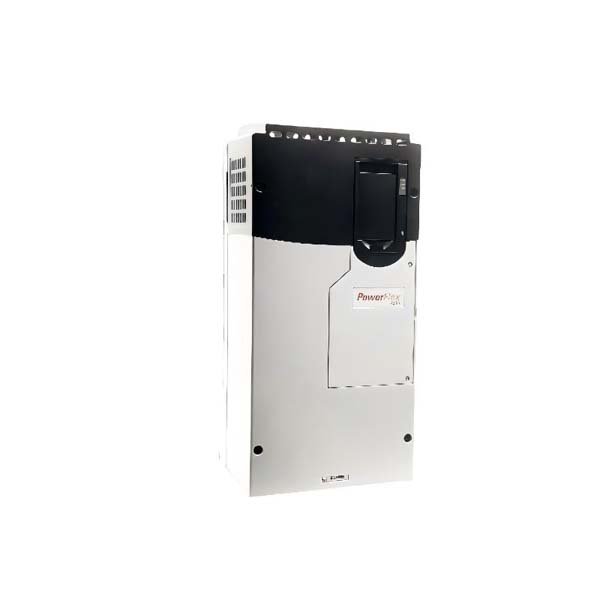

Allen-Bradley 20F1ANC140JN0NNNNN AC Drive Module

The Allen-Bradley 20F1ANC140JN0NNNNN belongs to the PowerFlex 753 family, a robust and high-performance AC drive platform designed for demanding industrial applications. This specific model delivers 14 kW (20 HP) continuous output, combining precise motor control, high reliability, and flexible network integration. Engineers often select this drive for medium-to-heavy duty machines, where efficiency, torque stability, and smooth operation under variable loads are critical.

Unlike smaller drives, the 20F1ANC140JN0NNNNN supports advanced vector control and optional safety features, making it suitable for multi-axis motion systems, pumps, conveyors, and process equipment.

Technical Specifications

Applications

• Medium to large conveyor systems with variable speed control

• Pumping and fan systems in chemical, water treatment, and HVAC processes

• Multi-axis material handling machinery

• Packaging lines requiring smooth start/stop and torque control

• Small-to-medium production machines in automotive and industrial automation

• Situations requiring integrated safety features (Safe Torque Off optional)

Key Advantages

• High Performance: Precise motor control with minimal torque ripple and smooth acceleration/deceleration

• Integrated Safety Options: Supports STO for critical safety compliance

• Energy Efficient: Reduces power consumption under partial load conditions

• Network Ready: EtherNet/IP and optional communication cards enable seamless integration

• Compact & Durable: Fits in industrial panels while resisting harsh conditions

• Advanced Diagnostics: LCD interface provides real-time monitoring of current, voltage, and drive status

• Flexible Mounting: Wall or panel configurations suit diverse installation needs

• Reduced Downtime: Built-in fault detection and predictive alerts

• Scalable System Integration: Works with other PowerFlex drives and Logix controllers

• Global Compliance: Meets worldwide industrial standards for safety and EMC

FAQs

1. Q: Can this drive control both induction and permanent magnet motors?

   A: Primarily designed for three-phase induction motors; vector control allows smooth performance.

2. Q: What communication protocols are supported?

   A: Standard EtherNet/IP, with optional ControlNet, DeviceNet, and Profibus cards.

3. Q: Does the drive support Safe Torque Off (STO)?

   A: Yes, STO is available as an optional feature for safety applications.

4. Q: Can it operate in high-humidity environments?

   A: Yes, up to 95% non-condensing humidity at the specified temperature range.

5. Q: What is the maximum frequency output?

   A: 590 Hz for high-speed motor applications.

6. Q: How is configuration performed?

   A: Through the LCD keypad or via Rockwell Automation Studio 5000 software.

7. Q: Can multiple drives be networked together?

   A: Yes, EtherNet/IP and optional network cards allow multi-drive integration.

8. Q: What are the protection features?

   A: Overload, over-voltage, short-circuit, ground fault, and thermal protection.

9. Q: Is the drive suitable for continuous operation?

   A: Yes, rated for continuous duty up to its maximum power rating.

10. Q: What cooling method is used?

    A: Forced-air cooling with an internal fan ensures consistent thermal management.
