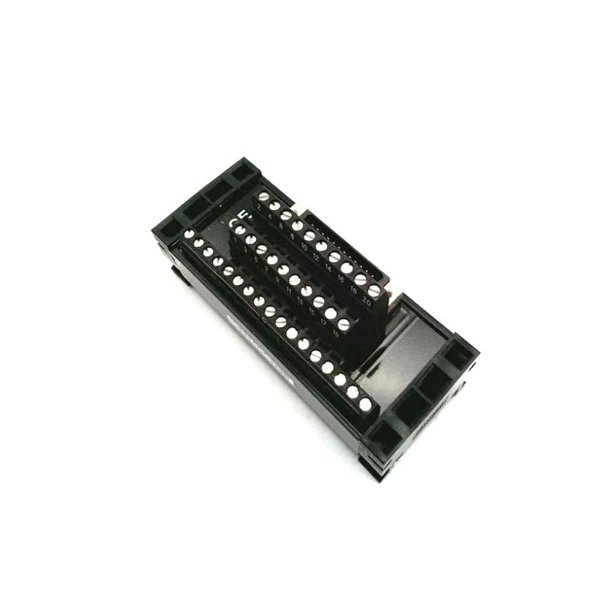

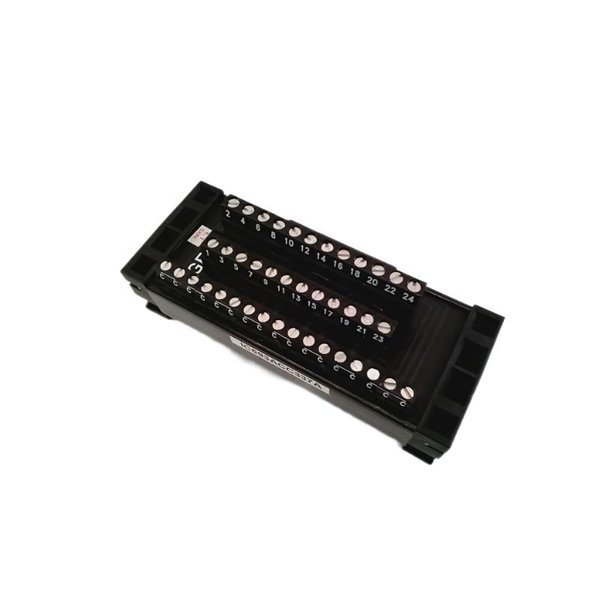

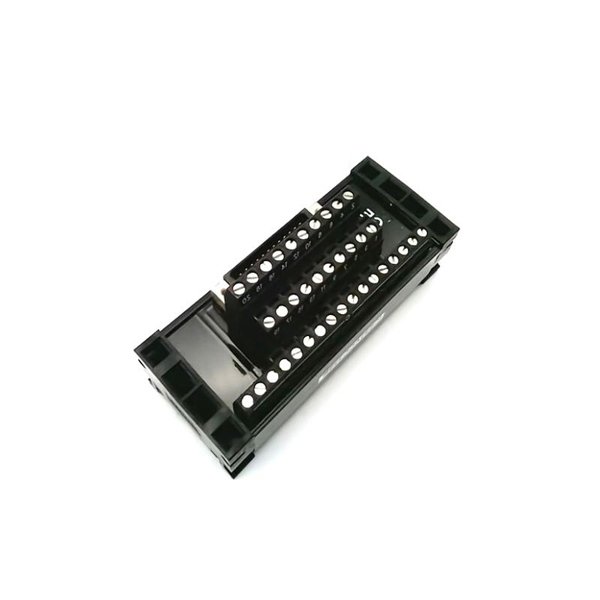

General Electric IC693ACC329 TBQC Base

The GE IC693ACC329 is a Terminal Block Quick Connect (TBQC) Base designed for the GE Series 90-30 PLC system. It provides a high-density, rugged, and reliable connection interface between discrete or analog modules and field wiring. The TBQC base is used in conjunction with prewired cable assemblies to simplify and speed up the installation and maintenance process in automation control panels.

This module forms a vital part of the modular Series 90-30 architecture, enabling engineers to streamline control system design, reduce wiring errors, and improve serviceability. Whether in factory automation, utilities, or process industries, the IC693ACC329 contributes to a cleaner and more serviceable control cabinet layout, ensuring maximum efficiency with minimum downtime.

Product Specifications

Product Applications

• Industrial Automation Panels – Facilitates quick and reliable wiring connections for I/O modules in control panels.

• Manufacturing Lines – Reduces wiring time and errors in high-speed automated systems.

• Utility Plants – Used in SCADA and DCS panels for analog and digital signal routing.

• Water & Wastewater Facilities – Enhances maintainability of PLC wiring in distributed control systems.

• Food and Beverage Plants – Ensures hygienic and compact control systems for automated machinery.

• Pharmaceutical Automation – Allows rapid diagnostics and clean cabling in validated production environments.

Product Advantages

• Quick Installation – TBQC design allows for faster assembly and replacement of modules without rewiring.

• Maintenance-Friendly – Reduces downtime during module swap or field service.

• Error-Free Wiring – Minimizes wiring mistakes due to pre-defined cable harnesses and labeling.

• Space Optimization – Compact form factor supports high-density installations.

• Durability – Built from rugged industrial-grade material for harsh conditions.

• Seamless Integration – Fully compatible with Series 90-30 I/O modules and cable assemblies.

• Cost-Efficiency – Saves labor time and reduces overall installation costs.

• Reliable Signal Transmission – Ensures signal integrity and connection reliability in high-noise environments.

Frequently Asked Questions (FAQ)

1. What is the purpose of the IC693ACC329 TBQC Base?

   It serves as a terminal block interface for quick connection between I/O modules and field wiring in a Series 90-30 PLC system.

2. Which cable assemblies are compatible with this module?

   It works with GE Fanuc IC693CBL series cable assemblies, such as IC693CBL302 or IC693CBL305.

3. Is this TBQC base hot-swappable?

   No, the module should be powered down before replacing or removing to avoid signal or module damage.

4. Can this base be mounted on DIN rails?

   Yes, it supports both DIN rail and panel mounting for flexible installation.

5. Does it require configuration software?

   No, it is a passive interface module and does not require any configuration.

6. What modules are supported by this TBQC base?

   It supports GE 90-30 discrete input/output modules and analog modules with ribbon cable connectivity.

7. Is the terminal block removable?

   No, the design is a fixed terminal block that connects via ribbon cable harnesses.

8. Does this product support shielded cable?

   Yes, it supports shielded ribbon cables typically used in industrial automation wiring.

9. What is the advantage over traditional screw terminal blocks?

   The TBQC reduces wiring time, increases reliability, and simplifies field maintenance.

10. Is this module suitable for vibration-heavy environments?

    Yes, it is designed with vibration and shock resistance in compliance with industrial standards.
