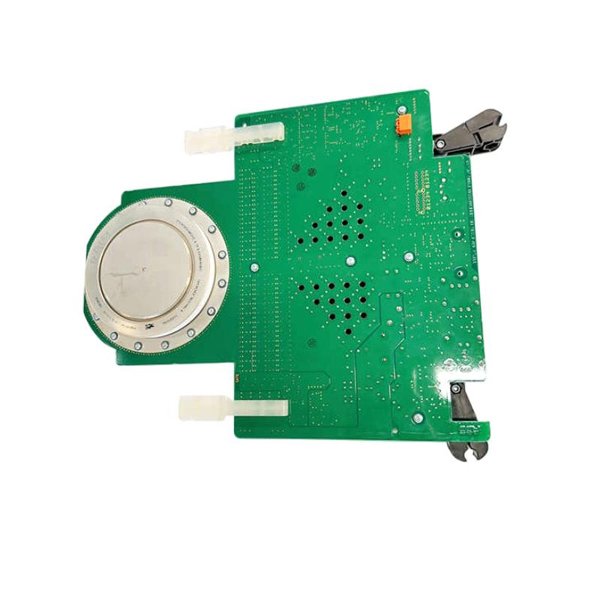

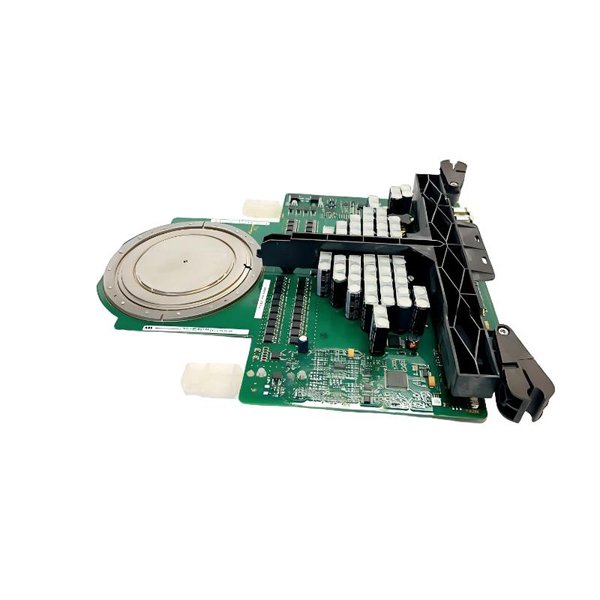

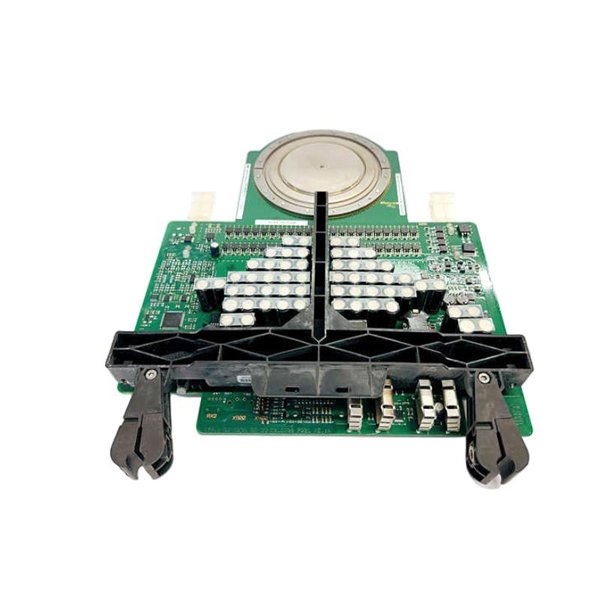

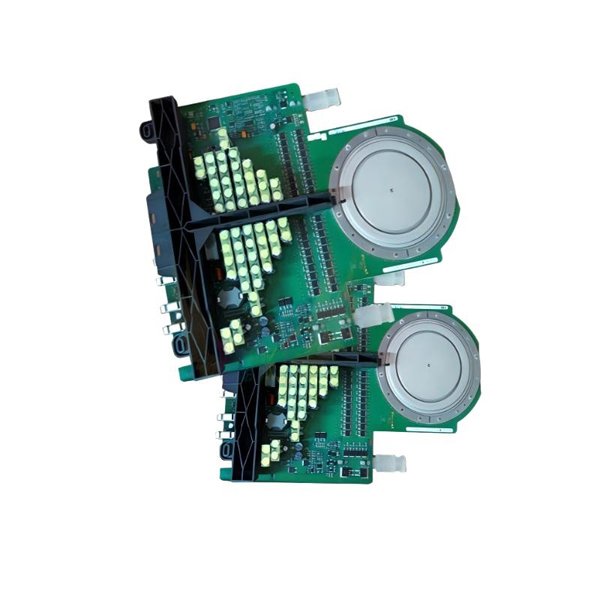

ABB GV C736 CE101 3BHE039203R0101 5SXE12-0184 IGCT Module

The ABB GV C736 CE101 3BHE039203R0101 5SXE12-0184 is an advanced IGCT (Insulated Gate Commutated Thyristor) module, designed to provide high-efficiency and reliability in power control applications. This product is part of ABB’s innovative family of power semiconductor components, which are widely used in applications such as industrial motor drives, renewable energy systems, and high-power AC/DC conversion systems. The IGCT module combines the advantages of both IGBT and Thyristor technologies, providing excellent switching capabilities, reduced switching losses, and high thermal stability.

Technical Parameters

Product Applications

The ABB GV C736 CE101 IGCT module is designed for use in a wide range of high-power applications where reliable performance, low switching losses, and high thermal efficiency are crucial. Some of its primary applications include:

1. Industrial Motor Drives: The IGCT module can be used in industrial motor drives for controlling high-power electric motors, ensuring smooth and efficient operation.

2. Power Converters: Ideal for applications involving AC to DC or DC to AC conversion, such as in power grids and high-voltage direct current (HVDC) systems.

3. Renewable Energy Systems: Inverters and converters used for solar and wind energy systems benefit from the high switching performance of the IGCT module.

4. HVDC Transmission: The module is utilized in HVDC systems for long-distance power transmission with minimal loss.

5. Electric Railways: IGCTs can efficiently control traction motors in electric locomotives and trains, improving energy efficiency.

6. UPS Systems: Uninterruptible power supplies benefit from the low switching loss and high current handling capabilities.

Advantages

1. High Switching Frequency: The GV C736 CE101 offers high-frequency switching capabilities, ensuring greater efficiency and faster response times in power control.

2. Low Switching Losses: With low conduction and switching losses, this IGCT module helps reduce energy consumption and enhance overall system performance.

3. Thermal Stability: Designed to withstand high operational temperatures, ensuring reliability in demanding environments.

4. Improved Efficiency: By combining the benefits of IGBT and thyristor technologies, the IGCT provides superior performance in high-power applications.

5. Compact Design: Its compact and robust design, with dimensions of 150 x 140 x 40 mm and a weight of 0.5 kg, allows for easy integration into a wide range of applications.

6. Long Lifecycle: The module’s longevity and durability help reduce maintenance costs and ensure long-term operational reliability.

7. Versatile Gate Drive: The module’s gate drive voltage range (±15 V) offers flexibility for different system requirements.

Frequently Asked Questions (FAQ)

1. What is the primary application of the ABB GV C736 CE101 IGCT module?

   • The primary applications include industrial motor drives, power converters, renewable energy systems, and HVDC transmission.

2. What is the voltage rating of this IGCT module?

   • The module has a voltage rating of 3.3 kV.

3. How does the IGCT module reduce switching losses?

   • The module uses advanced gate control technologies to minimize switching losses, ensuring higher efficiency.

4. What is the maximum operating temperature for the ABB GV C736 CE101?

   • The module can operate in temperatures up to 125°C.

5. What is the typical switching frequency of the GV C736 CE101?

   • It typically operates at a switching frequency of up to 2 kHz.

6. Is this IGCT module suitable for renewable energy applications?

   • Yes, it is ideal for use in solar inverters and wind energy systems.

7. How is the GV C736 CE101 cooled?

   • The module can be cooled using forced air or liquid cooling methods.

8. What is the weight of the ABB GV C736 CE101?

   • The weight of the module is 0.5 kg.

9. What are the key advantages of using an IGCT over traditional IGBT?

   • IGCTs offer faster switching, higher current handling, and lower conduction losses, making them ideal for high-power applications.

10. Can the GV C736 CE101 be used in electric railway systems?

• Yes, it is commonly used in controlling traction motors for electric trains.
