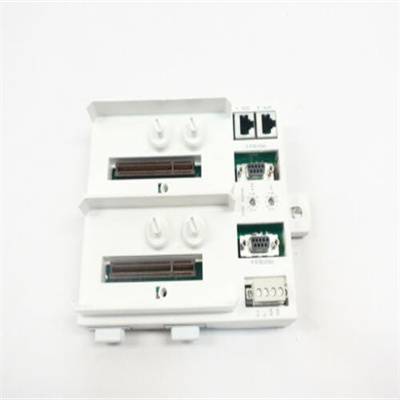

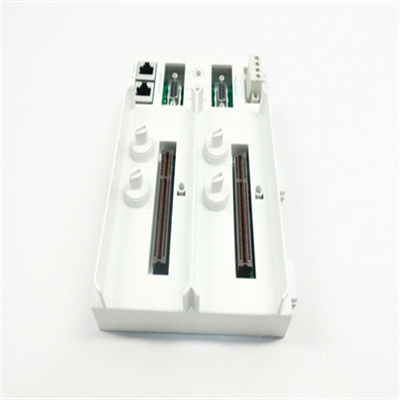

ABB 3BSE022460R1 Product Overview

ABB’s 3BSE022460R1 is a PROFIBUS DP protocol fieldbus redundant link module produced by ABB,which can realize the mutual conversion between single bus and redundant dual bus.It can convert a single cable bus to a redundant Profibus DP bus,and it can also convert a redundant Profibus DP bus to a single cable bus.

Product Features

Industrial-grade design:3BSE022460R1 adopts industrial-grade design,which can adapt to a wide range of field environments and ensure stable operation under various harsh conditions.

Redundancy function:The product supports redundant configuration,and the rate setting or rate adaptation is optional through the dip switch,which improves the reliability and stability of the system.

Multiple rate support:Supports 10 common rates of the Profibus DP bus to meet the needs of different application scenarios.

High protection level:With IP30 protection level,it can effectively prevent dust and moisture intrusion and extend the service life of the product.

Easy installation:It adopts corrugated aluminum reinforced housing and 35mm DIN rail installation,and the installation process is simple and fast.

Wide power input:It supports DC(9-36)V wide power input to adapt to different voltage environments.

Alarm output:It has relay alarm output function,and can send out alarm signals in time when the system fails.

Application field

3BSE022460R1 is widely used in industrial automation control systems,especially in occasions requiring high reliability and stability,such as petroleum,chemical,electric power,metallurgy and other industries.

Product certification and standards

This product has been certified by authoritative certification agencies such as CCC and complies with relevant international standards and industry specifications.
