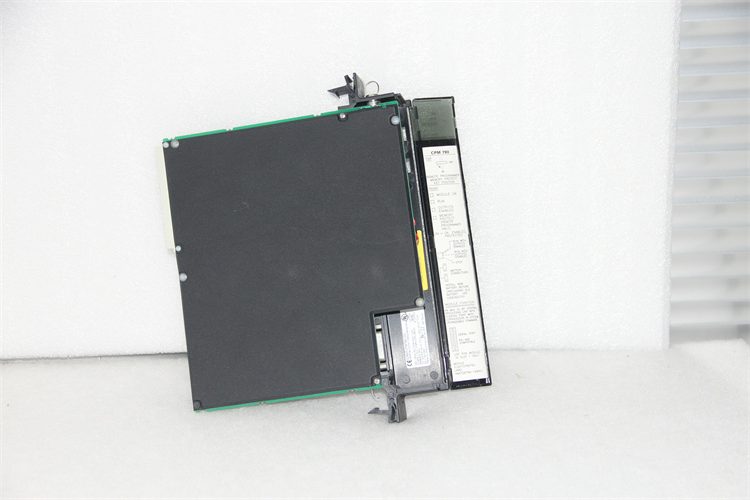

GE IC697CPM790 Product Overview

IC697CPM790 is an industrial-grade fieldbus redundant link module.The following is a detailed introduction to the product.

Basic features

Model:IC697CPM790

Design:Industrial-grade design,suitable for a wide range of field environments

Protocol:PROFIBUS DP protocol

Function:Realize the mutual conversion between single bus and redundant dual bus,which can convert single cable bus to redundant Profibus DP bus,or convert redundant Profibus DP bus to single cable bus

Technical specifications

Rate setting:DIP switch setting rate or rate adaptive optional,supporting 10 common rates of Profibus DP bus

Protection level:IP30

Casing material:Corrugated aluminum reinforced casing

Installation method:35mm DIN rail installation

Power input:DC(9-36)V wide power input

Other features:It has the advantages of relay alarm output,dual power redundancy and isolation protection

Application scenarios

Industrial automation system:As a fieldbus redundant link module,IC697CPM790 can be used for data communication and transmission in industrial automation systems to improve the reliability and stability of the system.

Process control system:In the process control system,the module can achieve bus redundancy to ensure the continuity and integrity of data communication.

Product advantages

High reliability:Industrial-grade design and wide power input range ensure that the module can still work stably in various harsh environments.

Flexibility:Supports rate adaptation and DIP switch to set the rate,which can be flexibly configured according to actual needs.

Easy to install:Adopts 35mm DIN rail installation method,which is easy to install and debug in the control cabinet.
