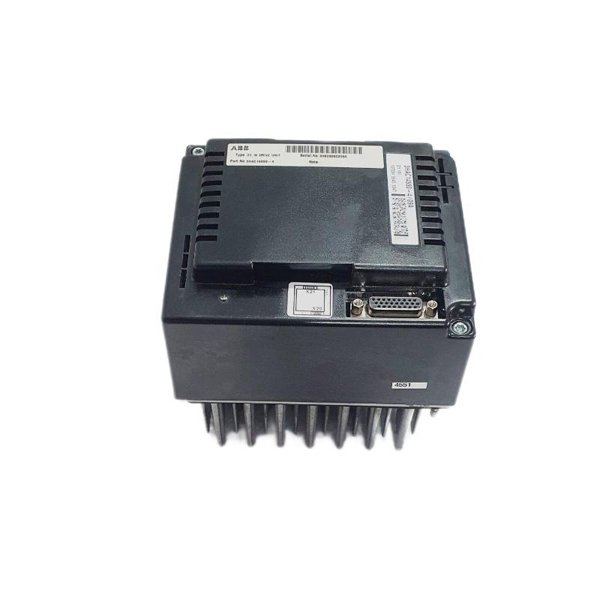

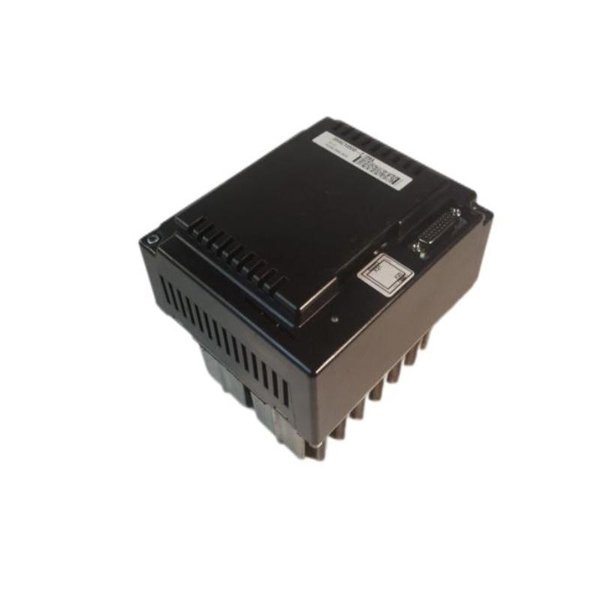

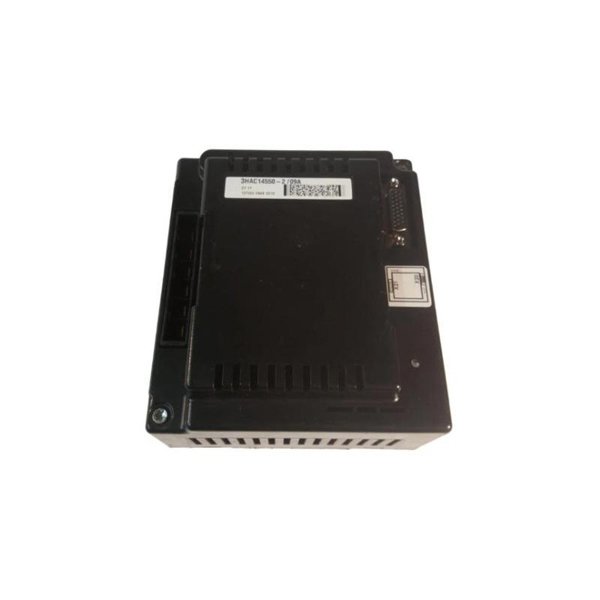

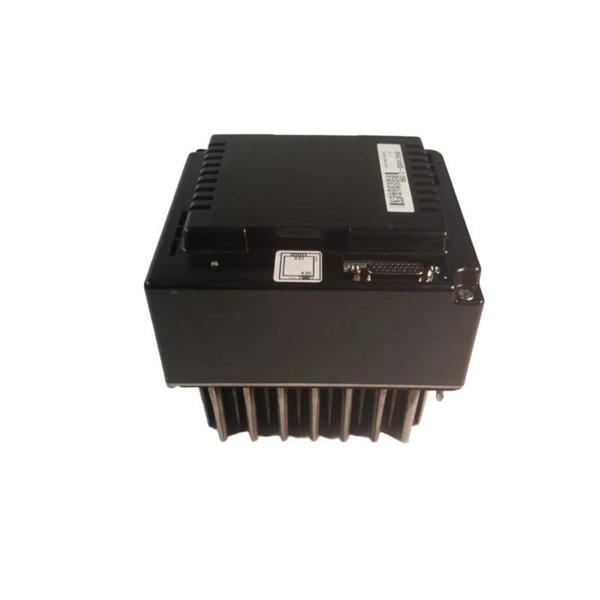

ABB 3HAC14550-4/09A Single Servo Drive Unit

The ABB 3HAC14550-4/09A Single Servo Drive Unit is an advanced motion control component designed to deliver high-performance and precise control of servo motors in industrial robotics applications. Engineered specifically for use within ABB robotic systems, this servo drive module enables smooth, real-time control of a single axis, ensuring accurate position, velocity, and torque regulation under demanding operating conditions.

Part of ABB’s IRC5 robot control architecture, the 3HAC14550-4/09A is known for its robustness, compact footprint, and intelligent diagnostics. It integrates power electronics, motor control logic, and communication interfaces into one modular solution, allowing easy replacement and scalable configuration in multi-axis robotic systems. Whether used in high-speed pick-and-place applications or precision welding systems, this servo drive offers reliable motion execution and system integrity.

Product Specifications

Product Applications

• Single-axis control for ABB industrial robots

• Robotic arm motion management in assembly lines

• Precision servo motor control in welding systems

• Packaging and palletizing automation

• Material handling and transfer robots

• Automotive component processing robots

• Conveyor and gantry control in factories

• Plastic molding automation

• Machine tool positioning and feed drives

• Lab automation and medical robotics

Product Advantages

• High-Precision Control: Offers excellent regulation of motor speed, torque, and position.

• Seamless Integration: Fully compatible with ABB’s IRC5 control architecture.

• Compact and Modular: Saves cabinet space and simplifies maintenance or replacement.

• Built-In Diagnostics: Provides real-time fault detection and event logging.

• Efficient Cooling: Forced air cooling ensures consistent performance during continuous operation.

• High Reliability: Designed for long-life performance in 24/7 industrial environments.

• Plug-and-Play Compatibility: Can be quickly replaced or upgraded with minimal downtime.

• Flexible Feedback Options: Supports both resolver and encoder signals.

• Protected Electronics: Equipped with comprehensive protection for safe and stable operation.

• Global Standards Compliance: CE and UL certified for worldwide usage.

Frequently Asked Questions (FAQ)

1. What is the primary function of the 3HAC14550-4/09A?

   It controls a single servo motor in ABB robotic systems, enabling precise motion execution.

2. Which control systems is it compatible with?

   It is specifically designed for use with ABB IRC5 robot controllers.

3. What type of motors can it drive?

   It supports ABB-compatible AC servo motors.

4. Does it include integrated diagnostics?

   Yes, it features onboard diagnostics and error logging capabilities.

5. What kind of feedback devices are supported?

   It supports resolvers and incremental/absolute encoders for closed-loop control.

6. How is the unit cooled during operation?

   It uses a forced-air cooling system to maintain thermal stability.

7. Can I replace the unit without reprogramming the robot?

   Yes, it supports plug-and-play installation within the IRC5 environment, reducing downtime.

8. Is it suitable for multi-axis configurations?

   While this model is single-axis, multiple units can be used for multi-axis control within the IRC5 rack.

9. Does the unit support overcurrent and short circuit protection?

   Yes, it includes multiple protection features for safe operation.

10. What is the rated output current?

    The unit provides a continuous output current of up to 9 A.
