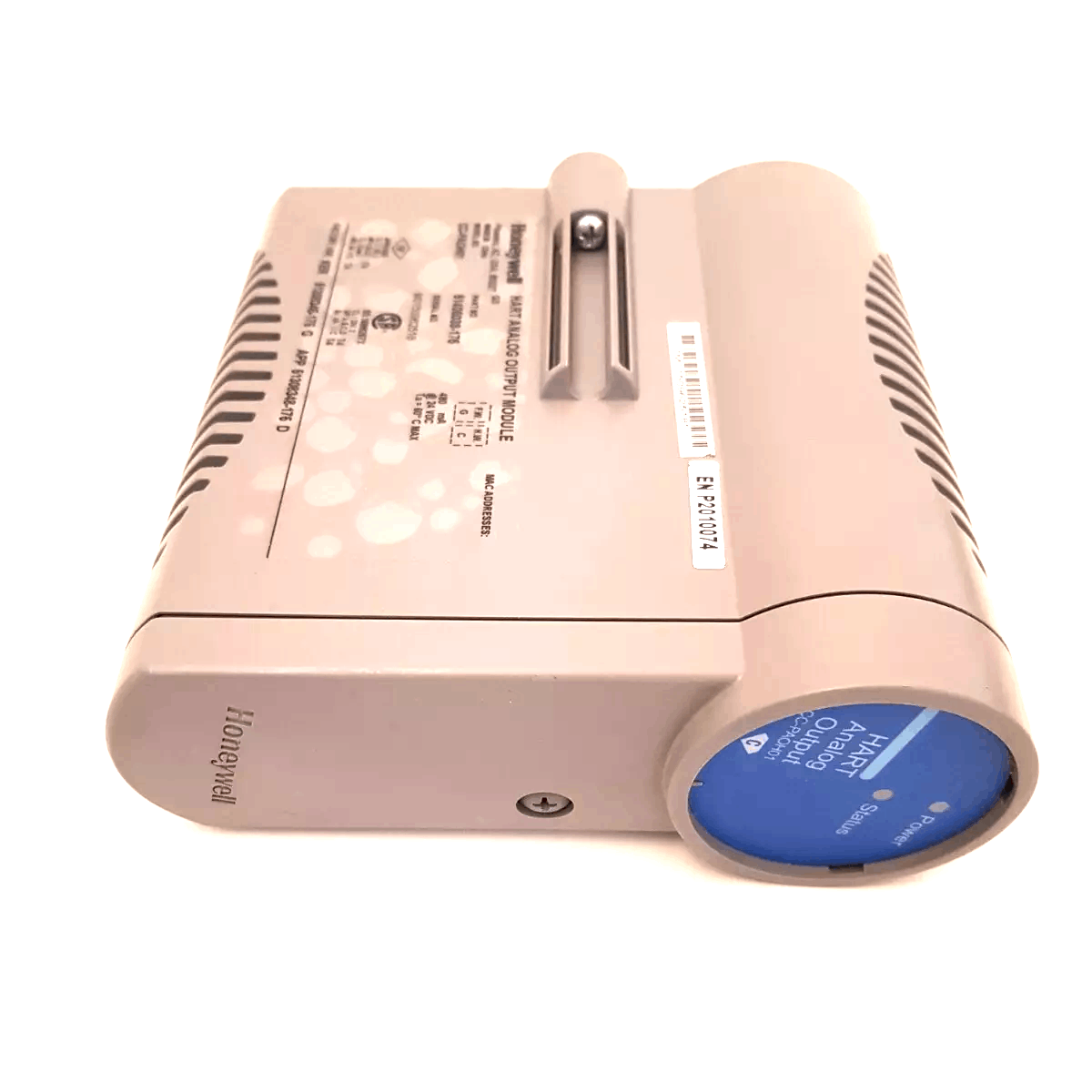

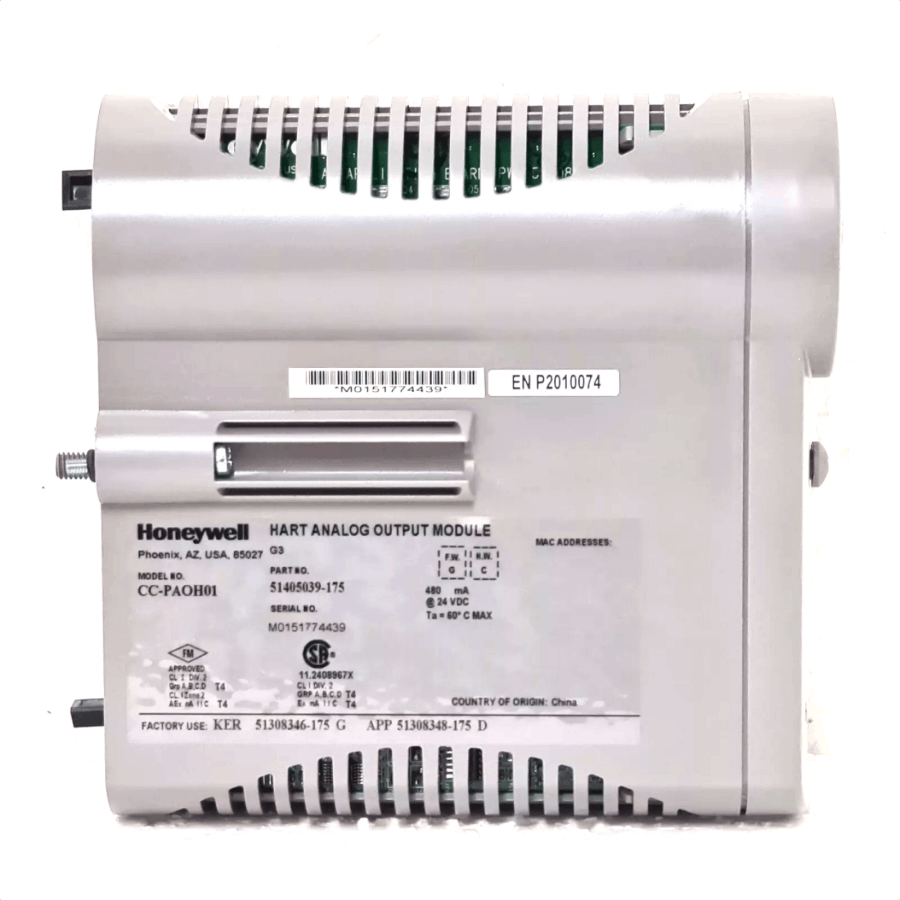

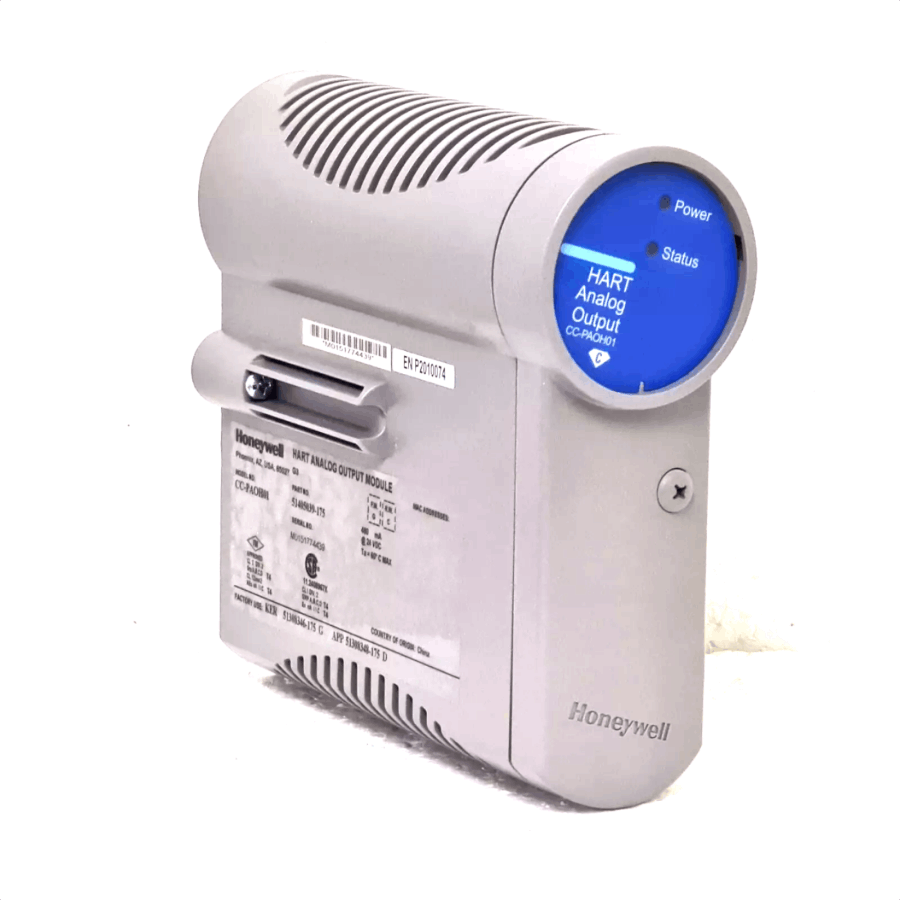

Honeywell CC-PAOH01 51405039-175 HART Analog Output Module
Item Number:CC-PAOH01 51405039-175
Brand:Honeywell
Lead Time: In stock
Description:HART Analog Output Module
Payment: T/T
Product Description
Honeywell CC-PAOH01 is a HART analog output module produced by Honeywell Experion® PKS C300 series. It integrates I/O modules and field wiring terminals in the same area. By inserting IOTA (I/O Terminal Assembly), no separate chassis is required to place electronic components.
The CC-PAOH01 module has two-level "removable" terminals to facilitate installation and maintenance of field wiring; field power can be supplied through IOTA, without the need for additional power supply and related wiring;
by adding a second IOM (I/O Module) in IOTA, direct redundancy can be achieved without external cables or redundant control devices.
Features of CC-PAOH01
- Supports HART 7 protocol digital communication
- Can transmit 4-20mA analog signal and HART digital signal simultaneously
- √Supports secondary/tertiary variable reading and device diagnosis
- √IOTA integrated architecture (size: 45×120×85mm)
- √Vertical installation (saves 35% cabinet space)
- √Dual-stage detachable terminal block (maximum wiring capacity 2.5mm²)
Note: This module must be used with the Experion C300 controller. A dedicated redundancy kit (order number: CC-RD001) is required for redundant configuration.
Specification
|
Parameter |
Specification |
|
Output Type |
4 - 20 mA |
|
Output Channels |
16 |
|
Output Ripple |
< 100 mV peak - to - peak at power line frequency, across 250 Ω load |
|
Output Temperature Drift |
0.005% of Full Scale/°C |
|
Output Readback Accuracy |
±4% of Full Scale |
|
Output Current Linearity |
± 0.05% of Full Scale nominal |
|
Resolution |
± 0.05% of Full Scale |
|
Calibrated Accuracy |
± 0.35% of Full Scale (25°C) including linearity |
FAQs
Q: What is the brand?
A: honeywell
Q: What is the type?
A: HART Analog Output Module
Q: What is the warranty period?
A: 1 year.
Q: What is the product condition?
A: New.
Q: Where is the shipping location?
A: Xiamen.
Q: What is the payment method?
Answer: T/T (Telegraphic Transfer).
