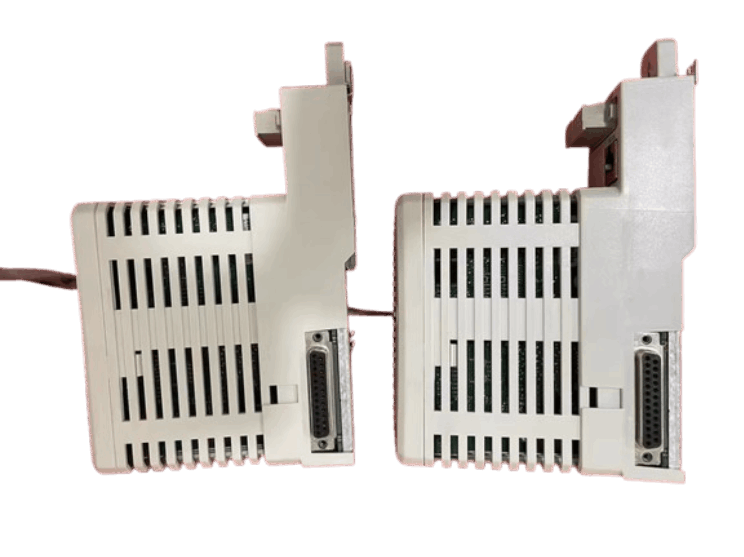

ABB SM811K01 3BSE018173R1 Safety CPU Module
Item Number:SM811K01 3BSE018173R1
Brand: ABB
Lead Time: In stock
Description:Safety CPU module
Payment: T/T
Product Description
ABB SM811K01 3BSE018173R1 is a safety CPU module suitable for ABB 800xA or Advant Controller safety systems. It needs to be configured according to the safety manual and works with the PM865 safety controller. It is connected to the CEX bus through the BC810 CEX bus interconnection box. It includes SM811 safety module, TP868 base and TK852V10 synchronization link cable.
Function & Features
- Hardware components: SM811 (main safety CPU module responsible for executing safety logic), TP868 (mounting base plate for fixing), TK852V10 (synchronization cable).
- Monitoring and Control: The SM811K01 can monitor the PM865 controller during SIL1-2 operation and form a 1oo2 diversified architecture with the PM865 for SIL3 applications.
- Digital I/O Function: The SM811K01 module has a connector that provides three digital inputs and two digital outputs for safety-related digital I/O (non-process I/O) and can connect external related devices.
Specifications
|
Parameter |
Details |
|
Model |
SM811K01 3BSE018173R1 |
|
Processor type |
MPC862P |
|
Switch over time in red. conf. |
max 10 ms |
|
Flash PROM for firmware storage |
4 MB |
|
Power consumption +24 V typ/max |
160/250 mA |
|
Power dissipation typ. |
3.8 W |
|
Width |
59 mm (2.9 in.) |
|
Height |
186 mm (7.3 in.) |
|
Depth |
127.5 (5.0 in.) |
|
Weight (including base) |
0.7 kg (1.5 lbs) |
FAQ
Q: What is the brand?
A: ABB
Q: What is the type?
A: Safety CPU module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
