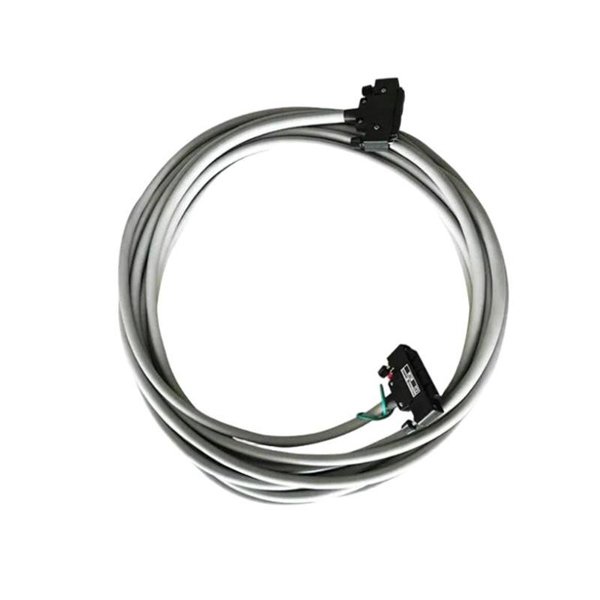

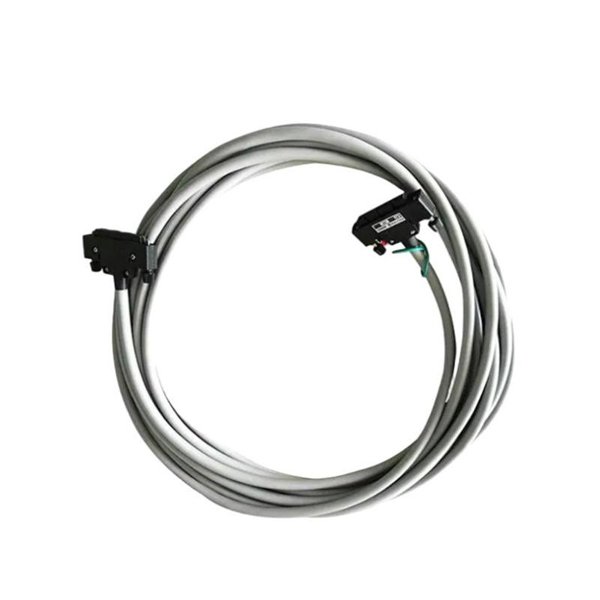

Yokogawa KS1-10/SAI143 Signal Cable

The Yokogawa KS1-10/SAI143 Signal Cable is a high-performance instrumentation cable designed for accurate transmission of analog and digital signals in industrial process control systems. It is engineered to maintain signal integrity over long distances, reducing electromagnetic interference and signal loss. This cable is particularly suited for connection between sensors, transmitters, controllers, and data acquisition systems, ensuring reliable operation in critical environments such as chemical plants, power plants, and manufacturing facilities.

The KS1-10/SAI143 combines durability with flexibility, enabling easy installation and secure connections in constrained or complex plant layouts. Its robust construction ensures stable performance even in harsh industrial conditions, making it a preferred choice for precise process monitoring.

Product Specifications

Applications

• Industrial Automation: Connects sensors, transmitters, and controllers in process control systems.

• Power Plants: Transmits critical analog and digital signals with minimal interference.

• Chemical and Petrochemical Facilities: Provides reliable signal connections for process monitoring.

• Manufacturing Systems: Ensures accurate data transmission in automated machinery and equipment.

• Data Acquisition Systems: Enables high-fidelity signal transmission to measurement devices.

• Environmental Monitoring: Connects instrumentation for temperature, pressure, and flow measurements.

Advantages

• High Signal Integrity: Reduces electromagnetic interference through shielding and twisted pair construction.

• Durable Construction: Copper conductors with PVC/PE insulation ensure reliability in industrial environments.

• Flexible Installation: Suitable for complex plant layouts with long cable runs up to 10 meters.

• Stable Performance: Maintains signal quality even under temperature variations and mechanical stress.

• Compliance: Meets RoHS and IEC standards for safety and environmental protection.

• Versatile Application: Compatible with a wide range of Yokogawa sensors, transmitters, and control systems.

FAQ

1. What type of shielding does this cable use?

   Twisted pair with foil and braid shielding reduces electromagnetic interference.

2. What is the maximum cable length?

   The cable supports lengths up to 10 meters.

3. What is the conductor material?

   High-purity copper is used for optimal signal transmission.

4. What is the insulation material?

   PVC or PE is used for electrical insulation and mechanical protection.

5. What is the operating temperature range?

   The cable functions reliably between -20°C and +80°C.

6. What voltage rating does the cable support?

   The voltage rating is 300 V, suitable for industrial signal lines.

7. What is the impedance of the cable?

   Impedance is 100 Ω ± 10%, ensuring signal compatibility.

8. Can it be used for analog and digital signals?

   Yes, it supports both analog and digital signal transmission.

9. Is it RoHS compliant?

   Yes, it meets RoHS environmental standards.

10. What type of applications is it suited for?

    Industrial process control, instrumentation, data acquisition, and automation systems.
