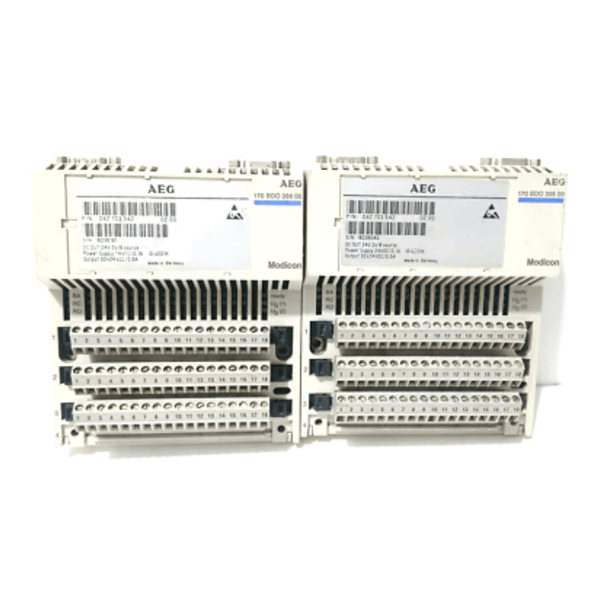

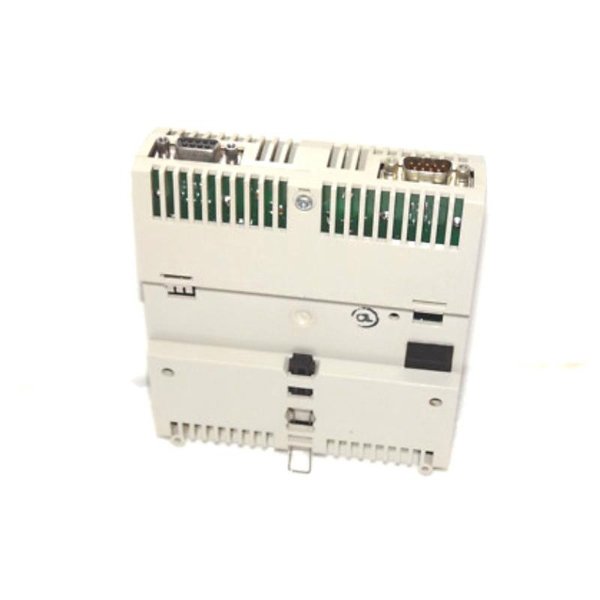

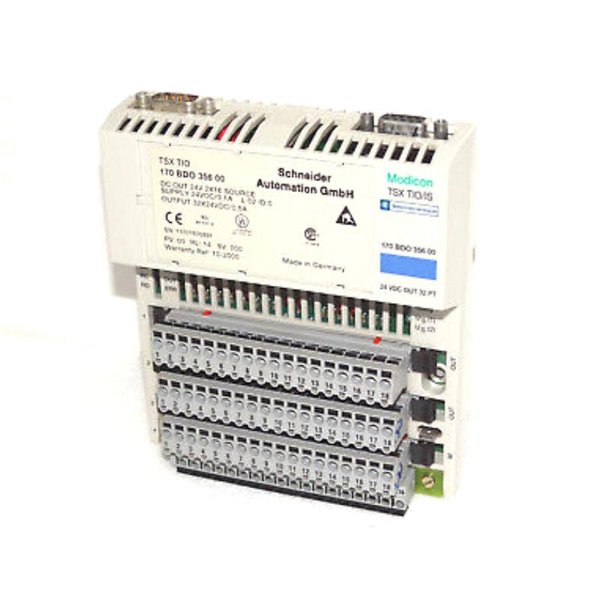

Schneider 170BDO35600 Automation Module
Manufacturer:Schneider
Product Number:170BDO35600
Product Type:Automation Module
Origin:France
Dimensions:90 x 70 x 60mm
Weight:0.5 kg
Views:38
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider 170BDO35600 is a high-performance industrial relay module designed for automation and control applications. It is part of Schneider Electric’s renowned line of relay solutions, known for reliability, durability, and precision in demanding environments. This module is widely used in machinery, HVAC systems, and power distribution setups, offering seamless integration with various control systems.
Product Parameters
| Parameter | Value |
|---|---|
| Model Number | 170BDO35600 |
| Type | Industrial Relay Module |
| Contact Configuration | DPDT (Double Pole Double Throw) |
| Rated Voltage | 24V DC / 120V AC |
| Current Rating | 10A @ 250V AC / 10A @ 30V DC |
| Switching Power | 3,000 VA |
| Electrical Life | 100,000 cycles |
| Mechanical Life | 10,000,000 cycles |
| Coil Power | 1.2W |
| Insulation Resistance | 100MΩ (min) |
| Dielectric Strength | 2,500V AC (1 min) |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Dimensions | 90 x 70 x 60mm |
| Weight | 0.5 kg |
| Certifications | CE, UL, RoHS |
Applications
The 170BDO35600 is suitable for a wide range of industrial and commercial applications, including:
-
Industrial Automation: Control circuits in PLCs, motor starters, and conveyor systems.
-
HVAC Systems: Switching and control of compressors, fans, and heaters.
-
Power Distribution: Load switching in electrical panels and circuit protection.
-
Machinery: Integration into CNC machines, packaging equipment, and robotics.
-
Lighting Control: High-power lighting systems and stage equipment.
Product Advantages
-
High Reliability: Engineered for long-term performance with minimal maintenance.
-
Robust Construction: Durable materials ensure resistance to shock, vibration, and harsh environments.
-
Wide Compatibility: Works seamlessly with Schneider’s automation systems and third-party devices.
-
Energy Efficient: Low coil power consumption reduces operational costs.
-
Easy Installation: Compact design and standardized mounting for quick setup.
-
Safety Compliance: Meets international safety and environmental standards (CE, UL, RoHS).
Frequently Asked Questions (FAQ)
-
What is the maximum switching current of the 170BDO35600?
The relay can handle up to 10A at 250V AC or 30V DC.
-
Is this relay suitable for high-vibration environments?
Yes, its robust design ensures stable operation even in high-vibration settings.
-
Can I use this relay for both AC and DC applications?
Yes, it supports both AC and DC voltage switching.
-
What is the expected lifespan of this relay?
It has an electrical life of 100,000 cycles and a mechanical life of 10 million cycles.
-
Does it come with surge protection?
No, external surge protection may be required for high-voltage applications.
-
What are the mounting options for this relay?
It can be mounted on DIN rails or panel-mounted using standard fixtures.
-
Is the 170BDO35600 RoHS compliant?
Yes, it complies with RoHS environmental standards.
-
Can this relay be used in outdoor installations?
Only if housed in a protective enclosure, as it is not waterproof.
-
What is the coil voltage range?
The standard version operates at 24V DC or 120V AC, but other variants may exist.
-
How long is the warranty period?
The standard warranty is 1 years.
