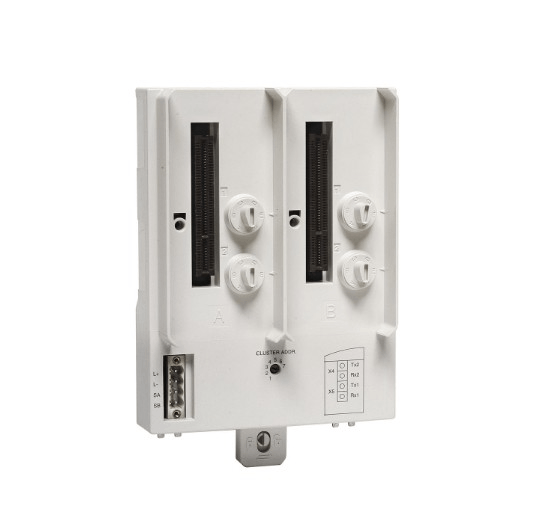

ABB TU841 3BSE020848R1 Module Termination Unit
Item Number:TU841 3BSE020848R1
Brand: ABB
Lead Time: In stock
Description:Module Termination Unit (MTU)
Payment: T/T
Product Description
The ABB TU841 (3BSE020848R1) is a module termination unit (MTU) for connecting to the fiber-optic ModuleBus modem TB840/TB840A.
This passive unit features a power connection, a single electrical module bus interface, two TB840/TB840A connection interfaces, and a rotary switch for setting the cluster address (1 to 7).
As a passive unit, the ABB TU841 provides power distribution, ModuleBus signal transmission, and module type identification.
Function & Features
- Interface Expansion: The ABB TU841 supports a single electrical ModuleBus connection and features two TB840/TB840A fiber optic modem interfaces.
- Address Configuration: The TU841 has a built-in rotary switch (1-7) for setting the cluster address to avoid bus conflicts.
- Module Type Identification: The ABB TU841 uses four mechanical keys (two on each side, for a total of six positions) to identify the module type, supporting 36 configuration combinations that can be adjusted using a screwdriver.
Specifications
|
Parameter |
Details |
|
Model |
TU841 |
|
Article number |
3BSE020848R1 |
|
Modulebus |
|
|
ModuleBus current distribution |
Maximum 5 V 1.5 A; 24 V 1.5 A |
|
Mechanical Keys |
36 different combinations |
|
Rated insulation voltage |
50 V |
|
Dialectic test voltage |
500 V a.c |
|
Power dissipation |
2.0 W |
|
Width |
124 mm (4.88 in.) |
|
Height |
186 mm (7.32 in.) including latch |
|
Depth |
47 mm (1.85 in.) |
|
Weight |
0.45 kg (0.99 lbs.) |
FAQ
Q: What is the brand?
A: ABB
Q: What is the type?
A: Module Termination Unit (MTU)
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
