Honeywell CC-TCNT01 C300 Controller Input Output Termination Assembly

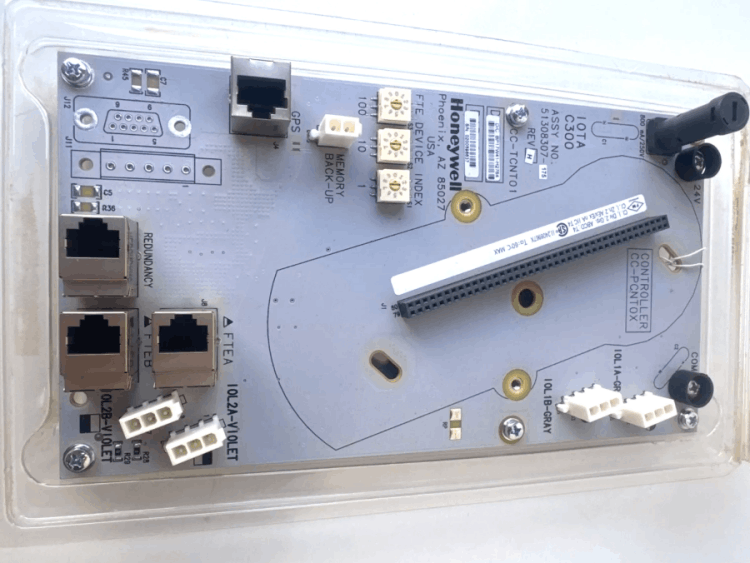

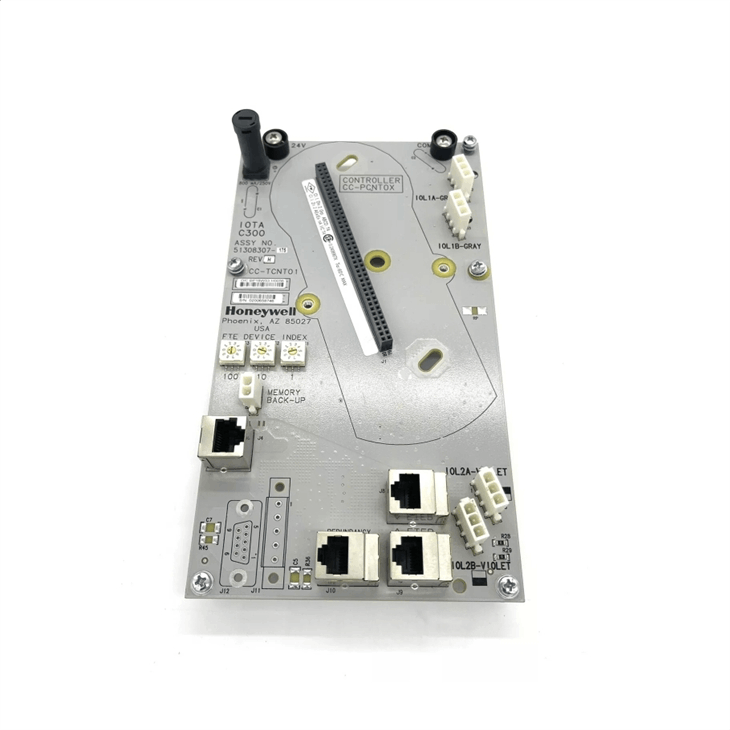

Honeywell CC-TCNT01 C300 controller input/output terminal assembly is the input/output (I/O) terminal module of Honeywell C300 process control system. This module provides signal connection between controller and field devices (such as sensors, actuators, etc.), ensuring signal and data transmission between field devices and control system.

Fuctions & Features

• I/O Signal Connection:Honeywell CC-TCNT01 Module Acts as a terminal for connecting analog and digital signals between field devices (e.g., sensors, actuators) and the C300 controller.Enables the controller to receive input signals from sensors and send output signals to actuators or other field devices.

• Module coordination: As a component of the C300 control system, the Honeywell CC - TCNT01 module works in conjunction with other modules (such as power modules, I/O modules, etc.).

• Command reception: The Honeywell CC - TCNT01 module receives control commands from the C300 controller, which includes control information for field actuators and other equipment, such as signals for controlling valve opening, motor start and stop, and speed, etc.

Specification

• Power supply parameters: Power supply rating is 24V DC, 0.311A
• Input type: voltage, current (2-wire or self-powered transmitter)
• Input channels: 16 channels (12 single-ended / 4 differential)
• Input range: 0-5V, 1-5V, 0.4-2V, 4-20mA (through 250Ω)
• Common mode rejection ratio (60Hz): maximum 19dB
• Maximum common mode input: ±30V
• Crosstalk (DC to 60Hz, channel to channel): -60dB
• Input impedance (voltage input): >10MΩ
• Maximum input voltage: ±30V
• Input scan rate: 50ms
• Hardware accuracy: @CMV=0V, ±0.075%FS (23.5℃±2℃); ±0.15%FS (0-60℃)
