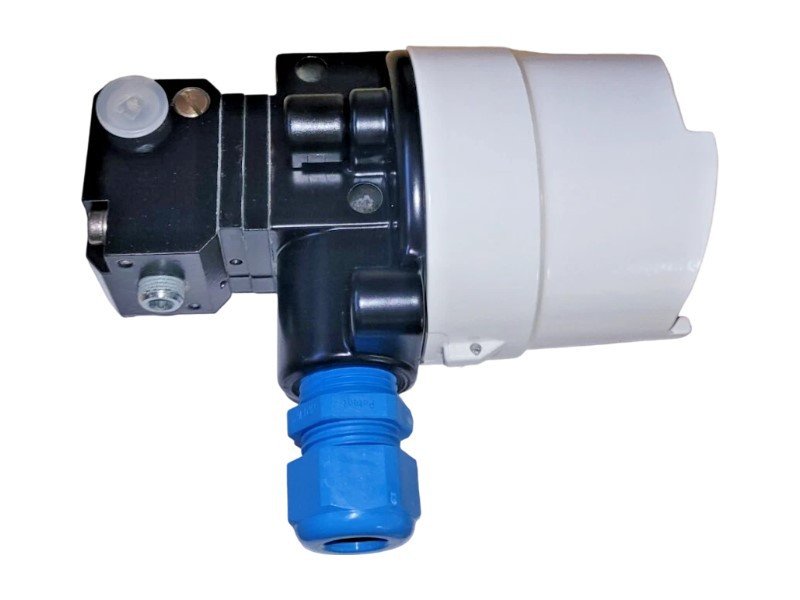

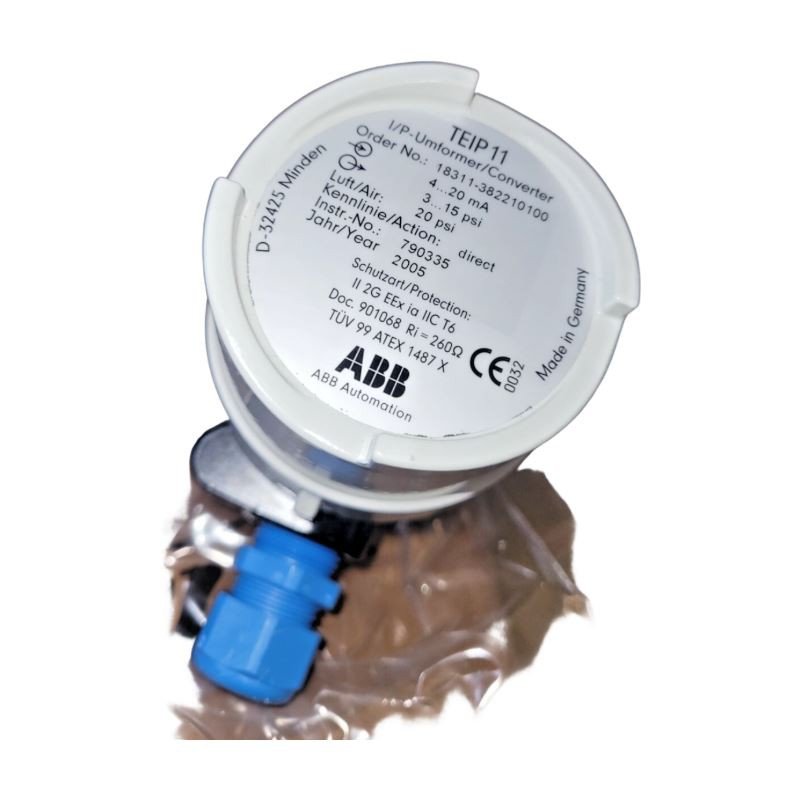

ABB V18311H-182210100 TEIP11-PS I/P Signal Converter
Item Number: V18311H-182210100
Brand:ABB
Lead Time: In stock
Description: I/P Signal Converter
Payment: T/T
Product Description
ABB TEIP11-PS (model V18311H-182210100) is an I/P (current/pressure) signal converter that linearly converts standard current signals to standard pneumatic signals of 0.2-1.0 bar (3-15 psi). The V18311H-182210100 serves as an interface between electrical/electronic control systems and pneumatic actuators (such as pneumatic valves and cylinders)
V18311H-182210100 Ordering Information
| TEIP11-PS I/P Converter, signal converter for standard signals, with power stage | V18311H |
| Without explosion protection | 1 |
| Field housing aluminium, IP 65 | 8 |
| Input signal 4 to 20 mA | 2 |
| Output signal 3 to 15 psi | 2 |
| Direct action | 10 |
| -40 to 85 °C | 1 |
| -55 to 85 °C | 00 |
Note:
Only with aluminium or stainless steel field housing
Not with field housing
Not with explosion protection Ex d or FM / CSA explosion proof
Function & Features
- Conversion Principle: The V18311H-182210100 employs a technology similar to the patented force balance method for signal conversion.
- Input/Output Range: In addition to the standard 4-20 mA to 3-15 psi, the V18311H-182210100 offers other ranges of input and output signal conversion.
- Special Feature Version: The V18311H-182210100 is available in a specially designed plastic housing version that can use flammable gases (such as natural gas) as a power source instead of conventional compressed air.
Specifications
| Parameter | Details |
|---|---|
| Product Model | TEIP11-PS |
| Order Number | V18311H-182210100 |
| Supply Pressure | 1.4 bar (20 psi), 2.5 bar (36 psi)* |
| Air Consumption | ≤ 0.2 kg/h = 0.16 Nm³/h = 0.1 scfm |
| Overpressure Limit | 30 mA |
| Capacitance / Inductance | Negligible |
| Supply Air Pressure Requirement | Minimum: ≥ 1.4 bar (20 psi); Maximum: Typically 1.6 bar or higher |
| Supply Air Quality | Clean, dry instrument air, oil-free, moisture-free; Particulate size < 5 μm (per ISA-7.0.01) |
| Linearity | ≤ ±0.25% of Span |
| Repeatability | ≤ ±0.1% of Span |
