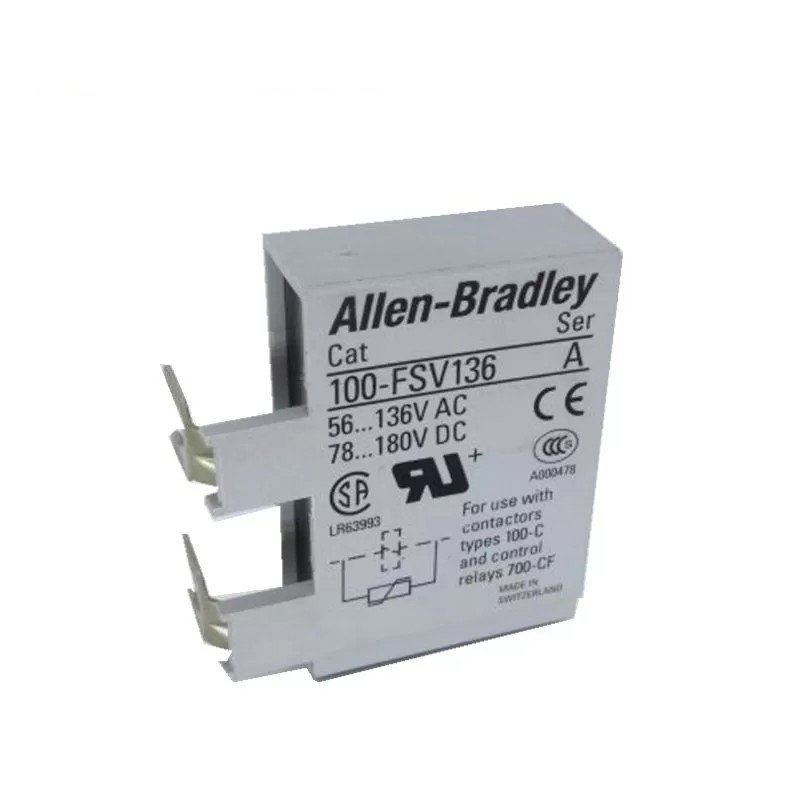

The Allen-Bradley 100-FSV136 is a surge suppressor designed to safeguard electrical equipment from transient voltage spikes. This varistor module is typically used with MCS 100-C, 104-C, 700-CF, and 700S-CF contactors.

Product Description

The 100-FSV136 absorbs and dissipates transient voltage spikes caused by lightning strikes, switching operations, and other sources. It helps protect electrical equipment, extending its lifespan and ensuring reliable operation.

Key Features

• Protects electrical equipment from transient voltage spikes.
• Features a varistor module design.
• Compatible with MCS 100-C, 104-C, 700-CF, and 700S-CF contactors.
• Offers a compact size for easy installation.

Technical Specifications

• Voltage Rating: 56…136 VAC / 78…180 VDC
• Peak Current: 10,000 A
• Response Time: < 1 µs
• Operating Temperature: -40°C to +85°C
• Enclosure Rating: NEMA 1, 3, 4, 12, 13
• Mounting: DIN rail or panel mount

Applications

The Allen-Bradley 100-FSV136 is ideal for use in various industrial applications, including:

• Motor control circuits
• Lighting control circuits
• HVAC systems
• Machine tools
• Other applications

Benefits

• Protects valuable electrical equipment from damage.
• Prolongs the lifespan of equipment.
• Helps prevent downtime and production losses.
• Improves system reliability.
