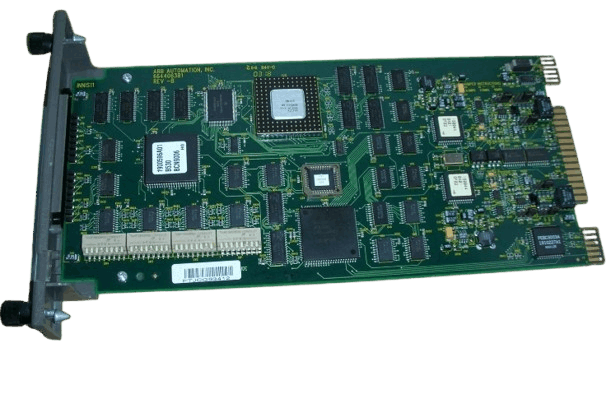

ABB INNIS11 Network Interface Module
Item Number:INNIS11
Brand: ABB
Lead Time: In stock
Description:Network Interface Module
Payment: T/T
Product Description
ABB INNIS11 is a Bailey network interface slave module designed for ABB (Harmony) control systems. The module acts as a critical communication bridge, enabling data exchange between the Harmony Control Unit (HCU) and various Input/Output (I/O) modules.
It can connect up to 1000 Harmony Control Units (HCU). It supports 256 triggers, each of which can handle up to 16 operands, which is useful for more advanced control logic that needs to evaluate multiple conditions before taking action. It can also manage 1500 data points from Sequence of Events (SOE) I/O modules.
Fuctions and Features
- Harmony Control Units (HCU): The module can connect up to 1,000 Harmony Control Units (HCU).
- Triggers: Supports 256 triggers, each of which can handle up to 16 operands. These triggers are useful for more advanced control logic that requires evaluating multiple conditions before taking action.
- Advanced Triggering: Supports complex triggers (256, 16 operands per trigger) for complex logic and control scenarios, as well as simple triggers (3,000 total) for basic event and status monitoring.
Specification
| Specification | Details |
|---|---|
| Memory |
208 kbytes RAM
64 kbytes ROM |
| Power Requirements |
+5 VDC at 900 mA; 4.50 W nominal
+15 VDC at 5 mA; 0.08 W nominal -15 VDC at 200 mA; 3.00 W nominal |
| System Capability | 62,500 nodes in the system; 250 nodes on a loop. Any combination of PCU, MCS, OIS or ICI interfaces. |
| Communication Rates | 10 Mbaud or 2 Mbaud |
| Mounting | Occupies one slot in standard INFI 90 OPEN module mounting unit |
Applications
- Sequence of Events (SOE) Monitoring: Useful in applications where accurate logging and tracking of events and triggers is critical for system performance and troubleshooting.
- Complex Control Logic: The module supports complex triggers and can be used in environments that require advanced control schemes and logic processing.
- Large Systems: With the ability to connect with 1,000 HCUs and process 1,500 data points, it is ideal for large systems in industries such as manufacturing, power generation, and process control.
