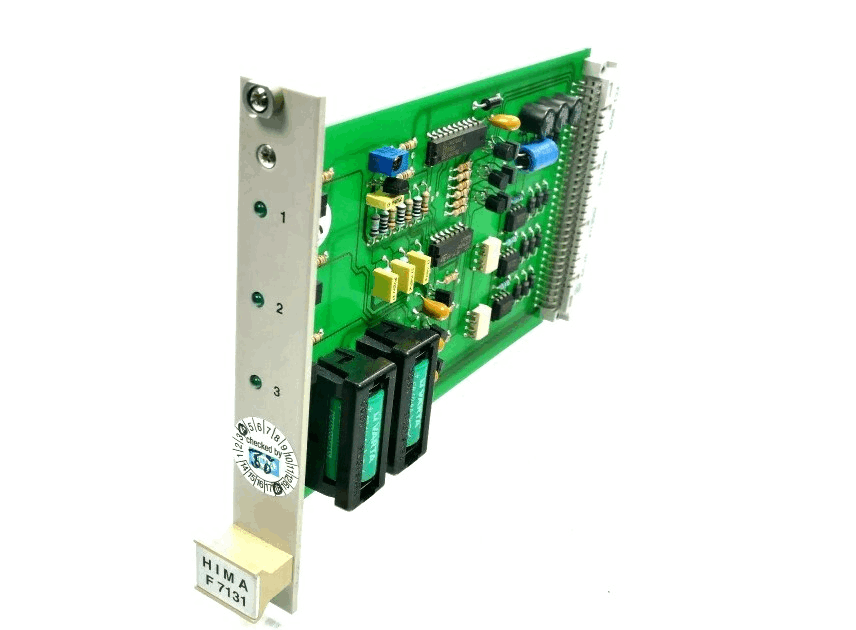

Hima F7131 Power Supply Monitoring With Buffer Batteries
Item Number:F7131
Brand:HIMA
Lead Time: In stock
Description:Power Supply Monitoring With Buffer Batteries
Payment: T/T
Product Description
HIMA F7131 is a power supply monitoring module with a buffer battery, which is mainly used to monitor the power supply status of the safety instrumented system (SIS). It can monitor the 5V voltage generated by up to 3 power supplies in the system, and intuitively display the power supply status through the 3 LED displays on the front of the module. It also provides 3 test positions for the central module F8650 or F8651 to perform diagnostic displays and run related operations in the user program.
Function & Features
HIMA F7131
Buffer battery function
HIMA F7131 is equipped with a buffer battery. When the main power fails, it can quickly switch to the buffer battery to maintain power supply. The battery type is CR-1/2 AA-CB. It is recommended to replace the battery every four years.
Additional power supply monitoring
For the additional power supply (component kit B 9361) of F7131, the function of the power supply module can be monitored through 3 24V outputs (PS1 to PS3).
Specifications
|
Category |
Specification |
| Model | F7131 |
|
Battery System |
- Type: CR-1/2 AA-CB (Part No.: 44 0000016) - Replacement Interval: 4 years |
|
Electrical Parameters |
- Input Voltage: 5V DC - Output Signal: 24V DC |
|
Space Requirement |
41TE (approx. 208.28mm, based on 1TE=5.08mm standard) |
|
Power Consumption |
- 5V DC: 25mA - 24V DC: 20mA |
Notes:
1TE (Horizontal Unit) = 5.08mm standard rack measurement
Total width calculation: 41TE × 5.08mm = 208.28mm
FAQ
Q: What is the brand?
A: HIMA
Q: What is the type?
A:Power Supply Monitoring With Buffer Batteries
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
