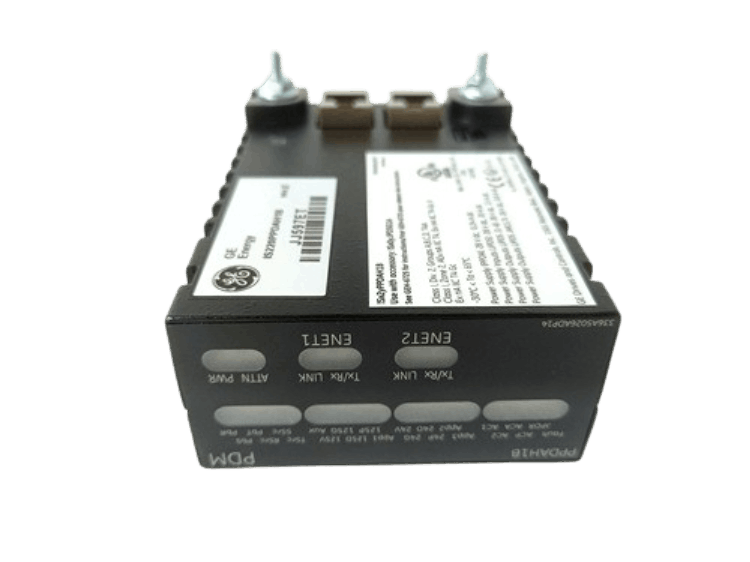

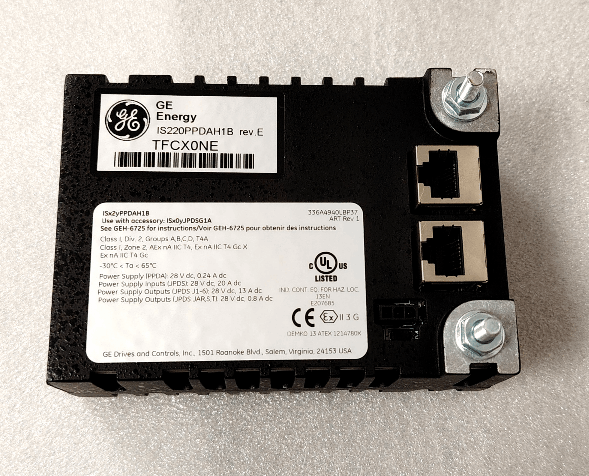

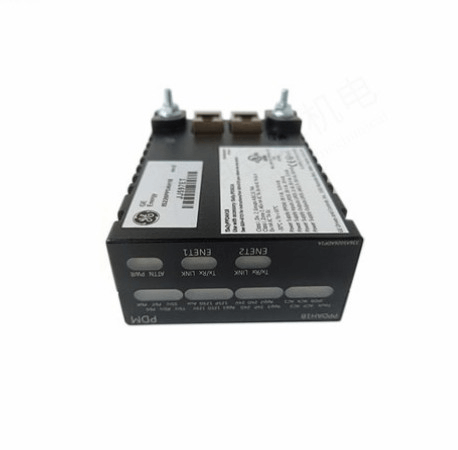

General Electric IS220PPDAH1B Power Distribution System Feedback Module
Item Number: IS220PPDAH1B
Brand: GE
Lead Time: In stock
Description: Power Distribution System Feedback Module
Payment: T/T
Product Description
GE IS220PPDAH1B is a system feedback module in the Mark VIe series. The module's I/O components are key interfaces in the PDM system, managing feedback signals from up to six different power distribution boards (e.g., JPDB, JPDE, JPDF). It receives these signals, conditions them, and then transmits the data to the main controller via a redundant network.
Technical Data
| Model | IS220PPDAH1B |
| Product Type | System Feedback I/O Pack (Module) |
| Series | Mark Vie |
| Dimensions |
Length: (186.35 mm) Width: (136.48mm) Height: (37.6mm) |
| Weight | 0.7 kg |
Function & Features
- The IS220PPDAH1B must be installed on a JPDS or JPDM control power board.
- The IS220PPDAH1B serves as a signal hub, feeding signals from up to six independent power distribution boards (such as JPDB, JPDE, and JPDF).
- The raw feedback signals received are processed and conditioned by the IS220PPDAH1B's internal circuitry, filtering them for valid and usable signals before being read by the controller.
- The IS220PPDAH1B automatically constructs and populates IONet output data by deriving information from the electronic ID.
Installation Points
|
Steps |
Details |
|
Installation: |
First, install the host terminal board (JPDS/JPDM). Then, directly insert the IS220PPDAH1B module into the connector on it. |
|
Networking： |
According to the system architecture, connect one or two Ethernet cables to the IS220PPDAH1B. Generally, connect ENET1 to the network of the R controller. |
|
Fixing： |
Use the threaded studs next to the Ethernet ports and the matching mounting brackets for mechanical fixing. |
|
Insert the power connector on the side to supply power to it. |
|
|
Daisy-chain Connection: |
The IS220PPDAH1B uses a ribbon cable to make a "daisy - chain" connection with other core boards through the J2 connector on the host board. |
FAQ
Q: What is the brand?
A: GE(General Electric)
Q: What is the type?
A: Power Distribution System Feedback Module(PDM)
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
