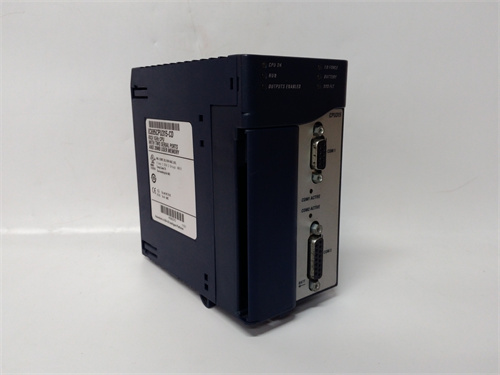

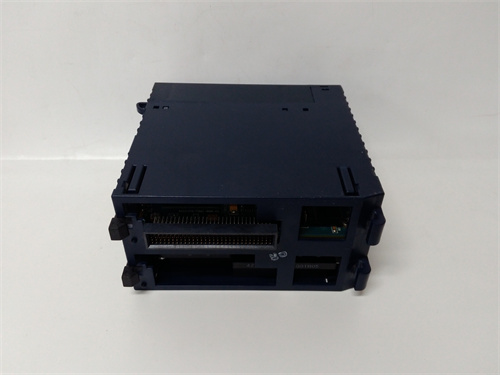

GE IC695CPU315 Product Introduction

GE IC695CPU315 is a high-performance central processing unit(CPU)of GE Fanuc PACSystems RX3i series.The following is a detailed introduction to it.

Basic features

Model:IC695CPU315.

Series:GE Fanuc PACSystems RX3i.

Processor type:Intel Celeron M microprocessor.

Main frequency:1.0GHz.

Memory:20MB user memory(RAM)and 20MB non-volatile flash memory.

Technical specifications

I/O operations:Capable of up to 32K I/O operations per second.

Program block support:Supports up to 512 program blocks,with a maximum size of 128KB per program block.

Communication interface

Dual backplane bus communicates with I/O and intelligent option modules.

Factory configured with two front ports:one RS-485 serial port and one RS-232 serial port(corresponding to a 9-pin connector and a 15-pin connector,respectively).

Supports SNP,serial I/O,and Modbus slave and master serial protocols.

Rack-based Ethernet interface modules can be used to establish Ethernet communications.

Provides a variety of communication interfaces,including serial ports,USB,etc.(specific interfaces may vary depending on configuration).

Programming capabilities

Supports C language programming.

Supports three of the five programming languages​​recognized by the IEC(International Electrotechnical Commission):ladder logic(ladder diagram),structured text,or function block diagram language.

Sequential function charts and instruction list languages​​are not supported.

Floating-point algorithm:Floating-point algorithm is used,and its firmware can be upgraded within the system.

Symbolic variables:Automatically positioned symbolic variables can use as much memory as needed,up to 20MB of user memory.

Power requirements:Input voltage is 5VDC,power consumption is 1.3A at 5VDC.

Operating temperature range:-40°C to+70°C(there are also claims of 0 to 60°C,but it depends on the product version and the actual application environment).

Functions and applications

Real-time control:Designed for real-time control of machines,processes,and material handling systems.

Flexible configuration:can be used with other GERX3i series modules,and can be flexibly configured and expanded according to actual needs.

Application areas

Industrial machinery:such as machine tools,packaging machines,conveying equipment,etc.,used to drive and control mechanical movement.

Automated production line:drive and control various actuators on the production line,such as conveyor belts,robotic arms,lifting tables,etc.,to realize automated production processes.

Robotics:used to drive and control the joint movement,end effector,etc.of robots to achieve precise motion control.

Chemical and process control:drive and control various valves,pumps and actuators to achieve precise flow,pressure and temperature control.

Precision instruments:drive and control various moving parts of precision instruments,such as focus adjustment,platform movement,etc.

Laboratory research:drive and control the moving parts of experimental equipment,such as rotating platforms,sample turntables,etc.,to achieve automation and precise control of experimental processes.

Widely used in many industrial automation fields such as manufacturing,oil and gas,power generation,water and wastewater management,transportation,etc.
