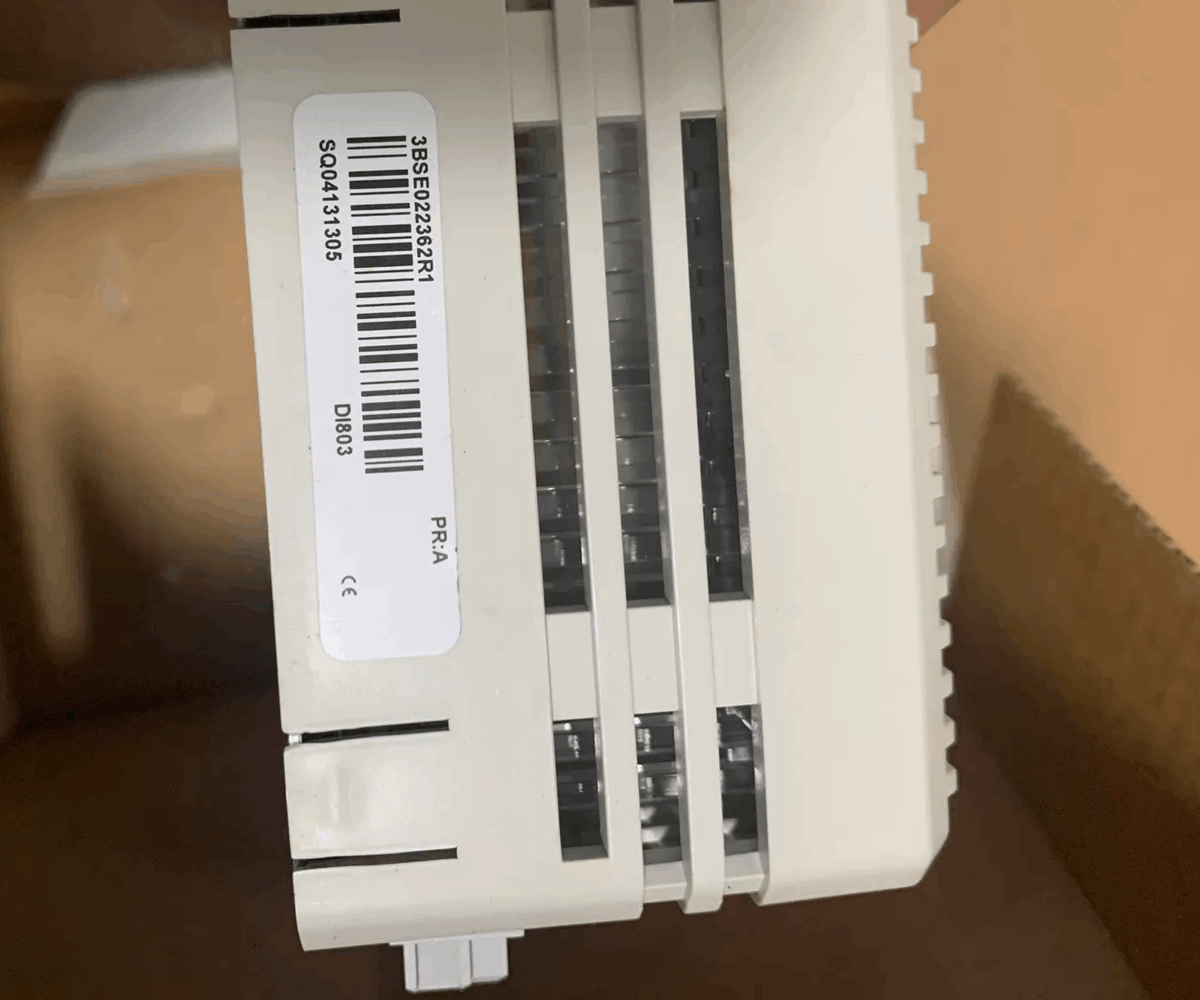

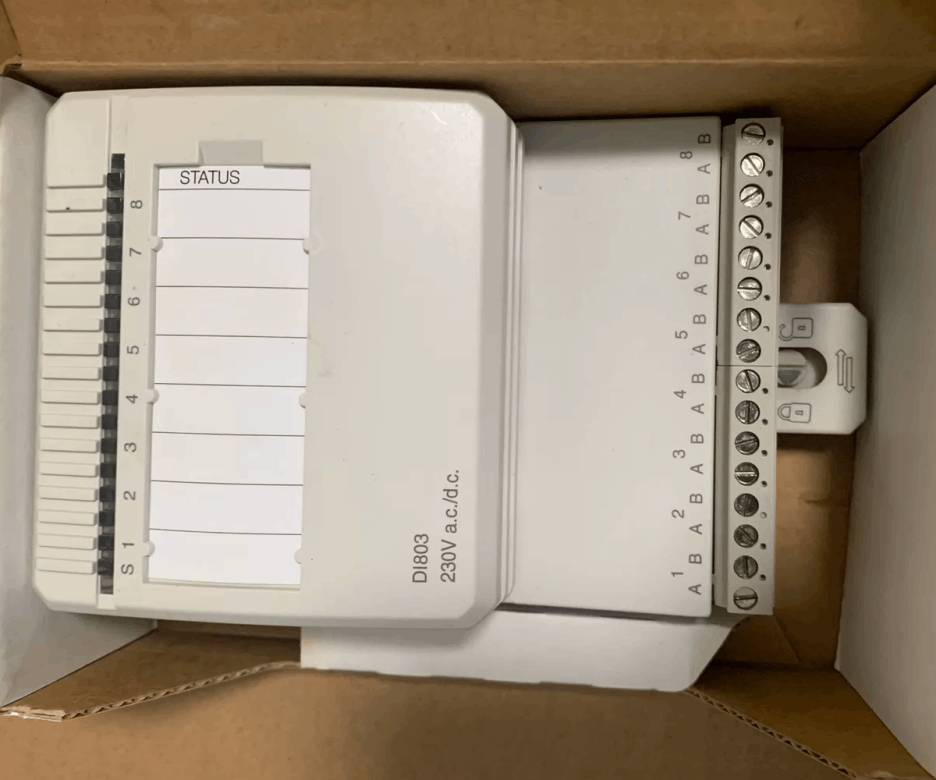

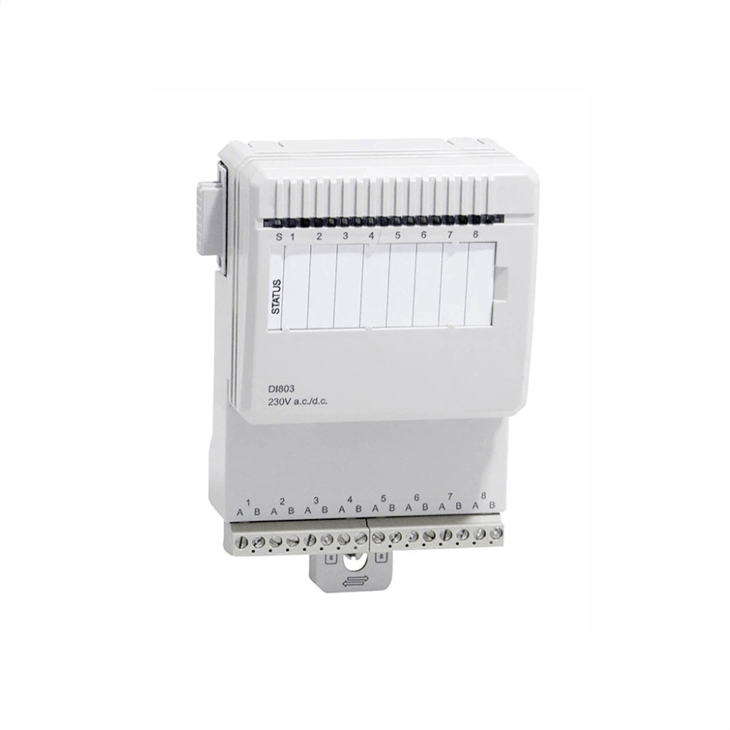

ABB DI803 3BSE022362R1 Digital Input 230V 8 Ch

ABB DI803 3BSE022362R1 Digital Input Module is an 8-channel digital input module designed for the S800 I/O system capable of handling 230 V AC and 220 V DC inputs. Its 8-channel design, support for both AC and DC inputs, and advanced features such as independent isolation and signal filtering enable it to be used in a variety of environments.

Fuctions & Features

• AC input: When an external AC signal is input, the input voltage is in the range of 164-264V, and the relevant circuits in the ABB DI803 module first sample the AC signal.

• DC input: For DC input signals, the voltage is in the range of 175-275V, and the ABB DI803 module uses different circuits to collect signals.

• AC current: Under 230V AC voltage, the input current of the ABB DI803 module is 7.6mA, ensuring that under normal working voltage, the AC input current of the module is in a stable state and will not affect the operation of the equipment due to excessive or insufficient current.

• DC current: At 220V DC voltage, the input current of the ABB DI803 module is 1.6mA, which provides current parameters for DC input and ensures normal connection with DC equipment.

Specification
