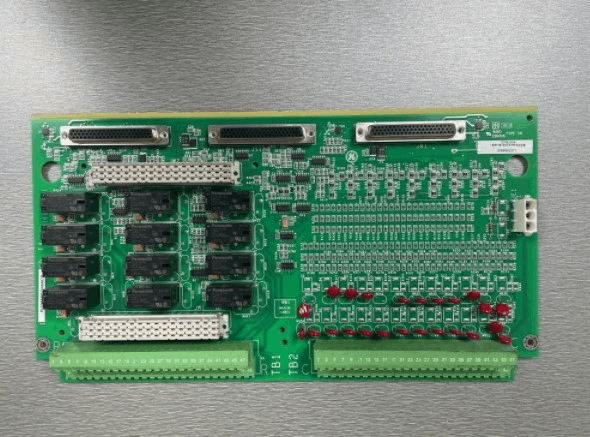

General Electric IS200TDBTH6A Discrete I/O Terminal Board
Item Number: IS200TDBTH6A
Brand: GE
Lead Time: In stock
Description: Discrete I/O Terminal Board
Payment: T/T
Product Description
GE IS200TDBTH6A is a discrete I/O terminal board for the Mark VIe distributed control system. It is a triple modular redundant (TMR) discrete input/output terminal board that ensures 99.99% availability through 3 independent PDIO channels, has a built-in contact resistance monitoring circuit, no motherboard jumpers, and is plug-and-play. The mechanical life of the relay of IS200TDBTH6A is >100,000 times.
Function & Features
- The IS200TDBTH6A works with the PDIO I/O module group to form a specific connection architecture.
- The IS200TDBTH6A has 12 Form-C relay outputs and can be connected to option cards for expansion functions.
- The onboard signal conditioning and contact input functions can handle a variety of voltages, the input current is limited according to different circuits, and the power supply is limited by fuses.
- The IS200TDBTH6A itself has no hardware configuration/jumpers, and the option board jumpers are assembled or removed as needed.
Specifications
|
Parameter |
Specification |
|
Model Number |
IS200TDBTH6A |
|
Series |
Mark VIe |
|
Input Channels |
24 group-isolated contact inputs |
|
Wetting Voltage Support |
24/48/125V DC (external supply) |
|
Input Voltage Ranges |
16-32V DC / 32-64V DC / 100-145V DC |
|
Current Limitation |
• 2.5mA (Channels 1-21) • 10mA (Channels 22-24) • 0.5A max for 24V DC (PTC resettable fuse) |
FAQ
Q: What is the brand?
A: GE
Q: What is the type?
A:Discrete I/O Terminal Board
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Loading comments...

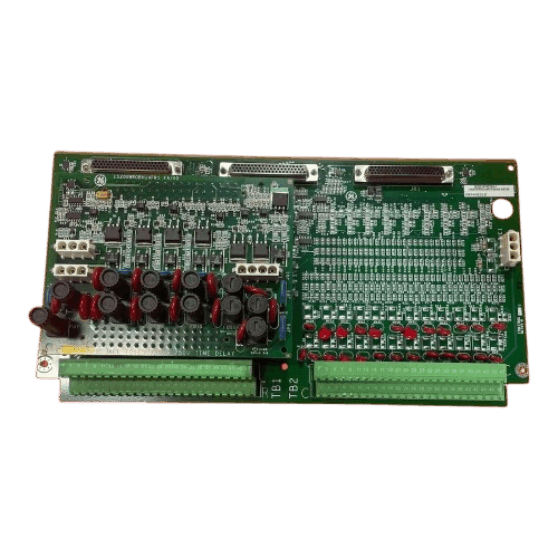

General Electric IS200TDBTH6A Discrete I/O Terminal Board
